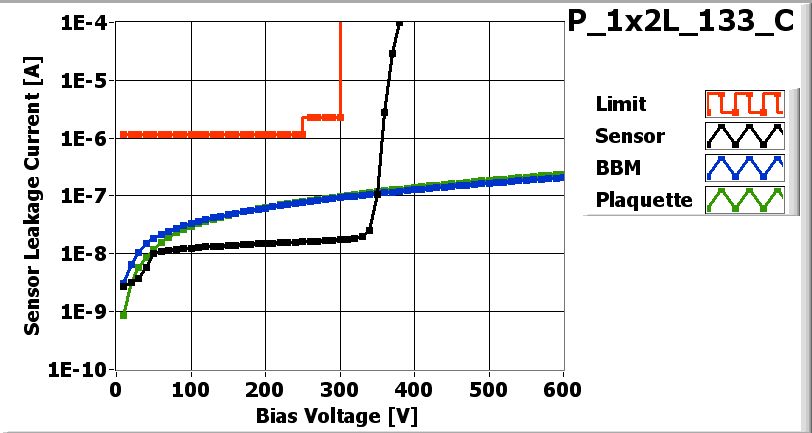

![[IMAGE] of](P_1x2L_133_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

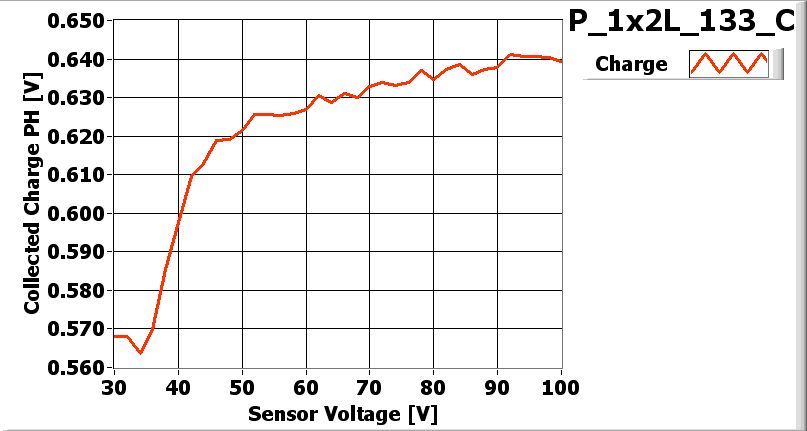

![[IMAGE] of](P_1x2L_133_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 1/25/2007
| Part | ID |
|---|---|
| BBM | BBM_133-1x2T |
| VHDI | 1x2L_228 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 28A |
| ROC1 | XE4KFET | 39D |
Inspected by Arndt Kirk on date 1/29/2007
| LR_dev | 0.046 |
| LL_dev | 0.068 |
| FINAL COMMENT by Arndt Kirk | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 1/29/2007 by Arndt Kirk
P_1x2L_133_Con 1/31/2007 1:12 PM
P_1x2L_133_C-1on 1/31/2007 1:30 PM
P_1x2L_133_C-2on 1/31/2007 1:48 PM
P_1x2L_133_C-2on 1/31/2007 1:48 PM
PLAQUETTE TESTED on 2007-01-31 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 128 | 134 | |
| Vana | 125 | 122 | |
| Cal_Del | 88 | 84 | |
| Vthrs_Comp | 71 | 73 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

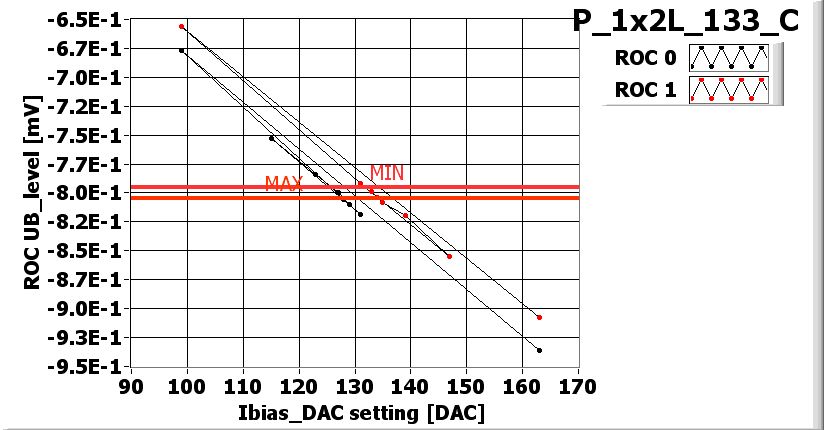

![[IMAGE] of](P_1x2L_133_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

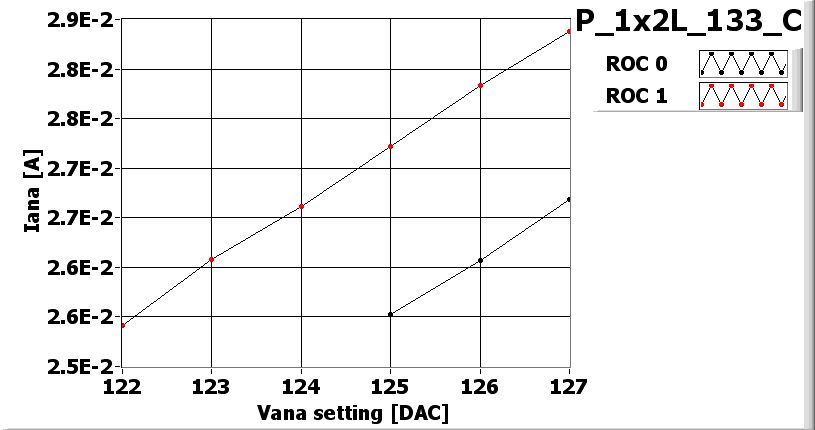

![[IMAGE] of](P_1x2L_133_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_133_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_133_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_133_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_133_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
