P_1x2L_133_C-2

Production testing

Date:1/31/2007

Operator: Gino Bolla

start testing time:1:48 PM

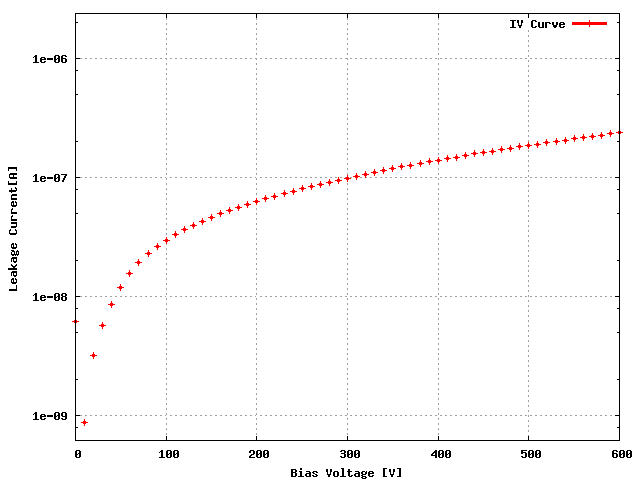

Sensor: S_1x2L_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XE4KFET28A
ROC1XE4KFET39D

Depletion Voltage is -50 and suggested operational voltage is -90
Ibias_DAC, Ibias_DAC Data 128 134
Vana, VanaData 125 122
CalDelData and plots8884
VthrCompData and plots7173
TestDdata ,TestD Plots20
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

Comment (if any):

This Device have been tested 2Times prior to this one and here are the links to the previous tests:

P_1x2L_133_C-1.html,

P_1x2L_133_C.html,

End testing time: 2:05 PM
