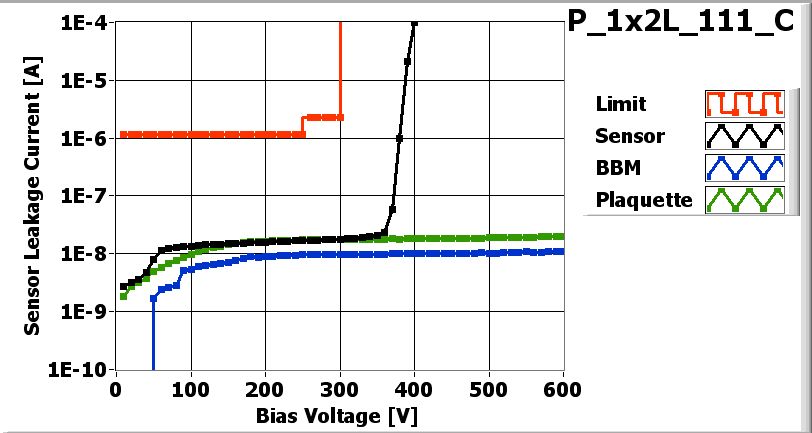

![[IMAGE] of](P_1x2L_111_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

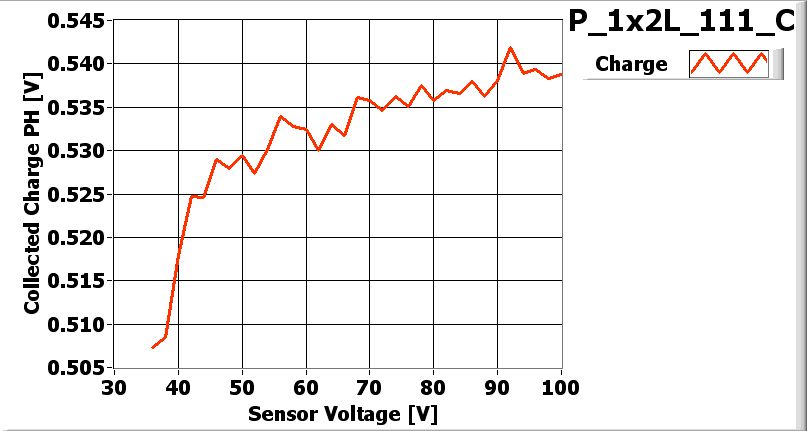

![[IMAGE] of](P_1x2L_111_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/17/2007
| Part | ID |
|---|---|
| BBM | BBM_111-1x2T |
| VHDI | 1x2L_258 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 46B |
| ROC1 | DWLQFTT | 46A |
Inspected by Lockwood Gale on date 4/18/2007
| LR_dev | 0.051 |
| LL_dev | 0.061 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problem. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/19/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/19/2007 by Ozhan Koybasi
P_1x2L_111_Con 4/20/2007 2:41 PM
P_1x2L_111_Con 4/20/2007 2:41 PM
P_1x2L_111_C-1on 4/20/2007 3:02 PM
P_1x2L_111_C-1on 4/20/2007 3:02 PM
PLAQUETTE TESTED on 2007-04-20 by gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 134 | 144 | |
| Vana | 139 | 155 | |
| Cal_Del | 92 | 74 | |
| Vthrs_Comp | 77 | 89 | |
| Unbumped | 0 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

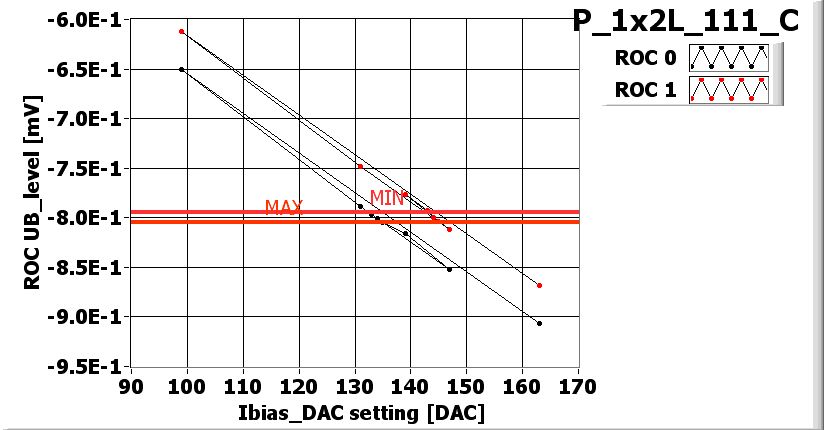

![[IMAGE] of](P_1x2L_111_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

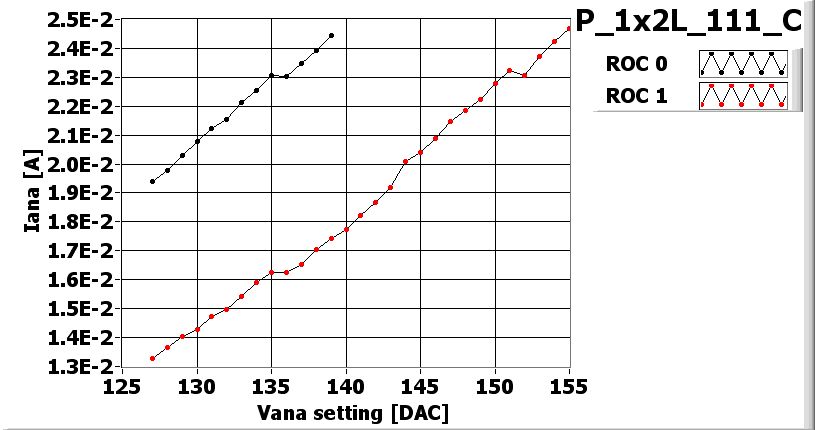

![[IMAGE] of](P_1x2L_111_C_Vana.jpg) |
VANA_XML-File |

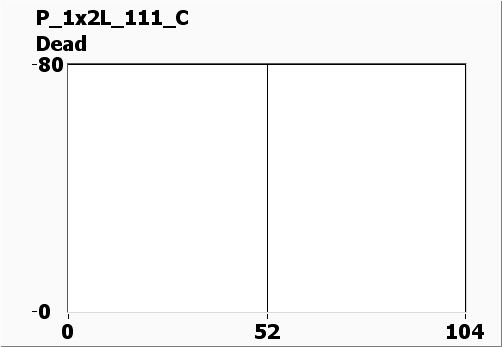

![[IMAGE] of](P_1x2L_111_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_111_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_111_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

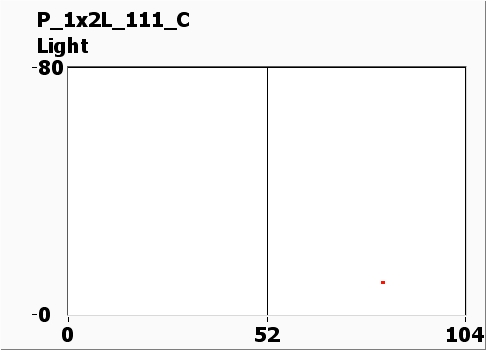

![[IMAGE] of](P_1x2L_111_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 95 |
| Vsf | 145 | 150 |
| VoffsetOp | 90 | 105 |
| VIbias_PH | 100 | 100 |
Noise MAP
![[IMAGE] of](P_1x2L_111_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_111_C-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
