P_1x2L_111_C-1

Production testing

Date:4/20/2007

Operator: gino Bolla

start testing time:3:02 PM

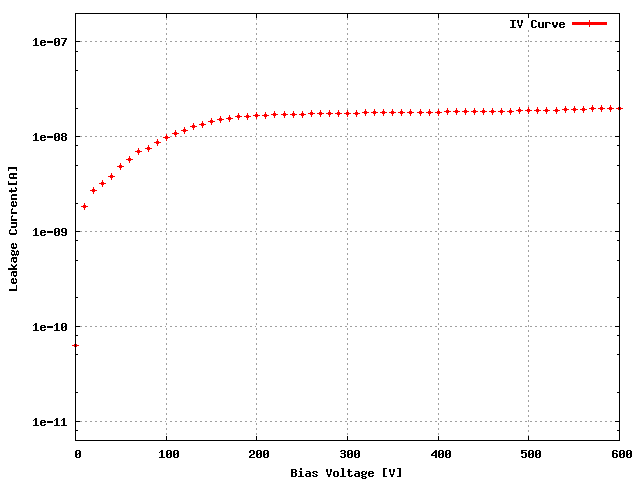

Sensor: S_1x2L_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0DWLQFTT46B
ROC1DWLQFTT46A

Depletion Voltage is -50 and suggested operational voltage is -90
Ibias_DAC, Ibias_DAC Data 134 144
Vana, VanaData 139 155
CalDelData and plots9274
VthrCompData and plots7789
TestDdata ,TestD Plots01
LightData ,Light Plots01
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

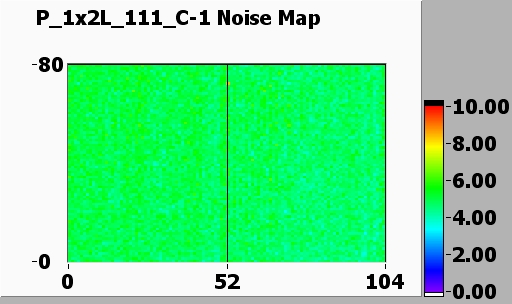

Noise MAP

[IMAGE] of

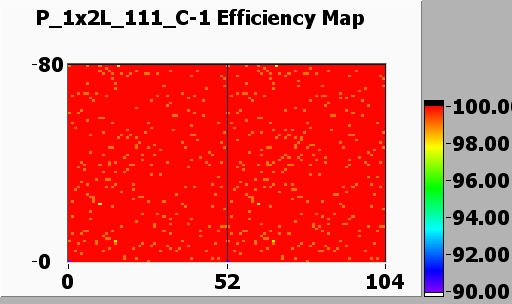

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe9595
Vsf145150
VoffsetOp90105
VIbias_PH100100

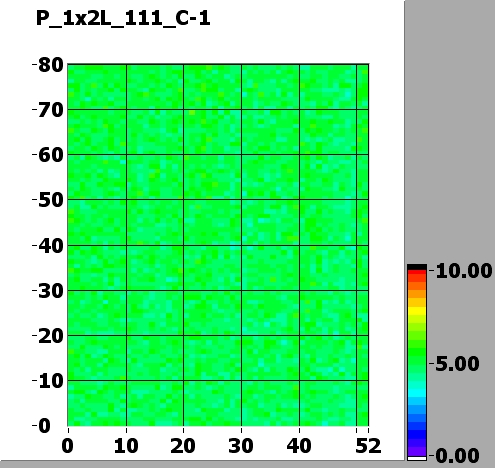

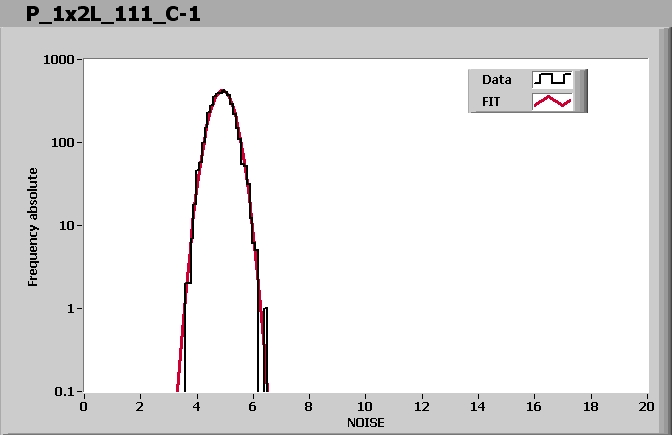

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.905596

SIGMA = 0.389204

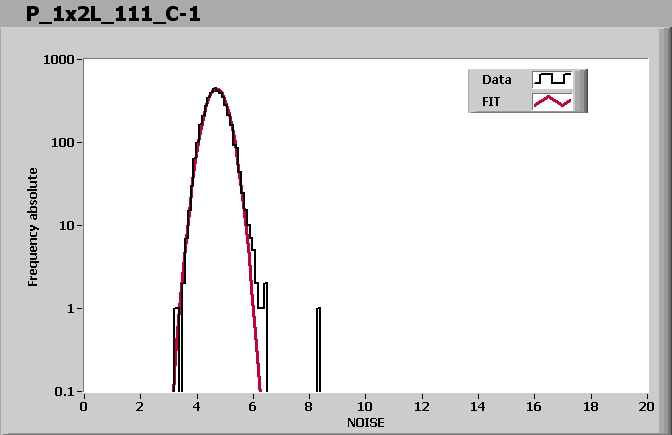

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.698985

SIGMA = 0.375954

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2L_111_C.html,

End testing time: 3:18 PM
