Parts committed by Bolla Gino on date 2/13/2007
| Part | ID |
|---|---|
| BBM | BBM_102-1x2T |
| VHDI | 1x2L_246 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 47C |
| ROC1 | W29_X64K5ST | 47B |
Inspected by Arndt Kirk on date 2/27/2007
| LR_dev | 0.038 |
| LL_dev | 0.060 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 2/27/2007 by Arndt Kirk
Inspected by Arndt Kirk on date 2/27/2007
| Picture | Comment |
|---|---|

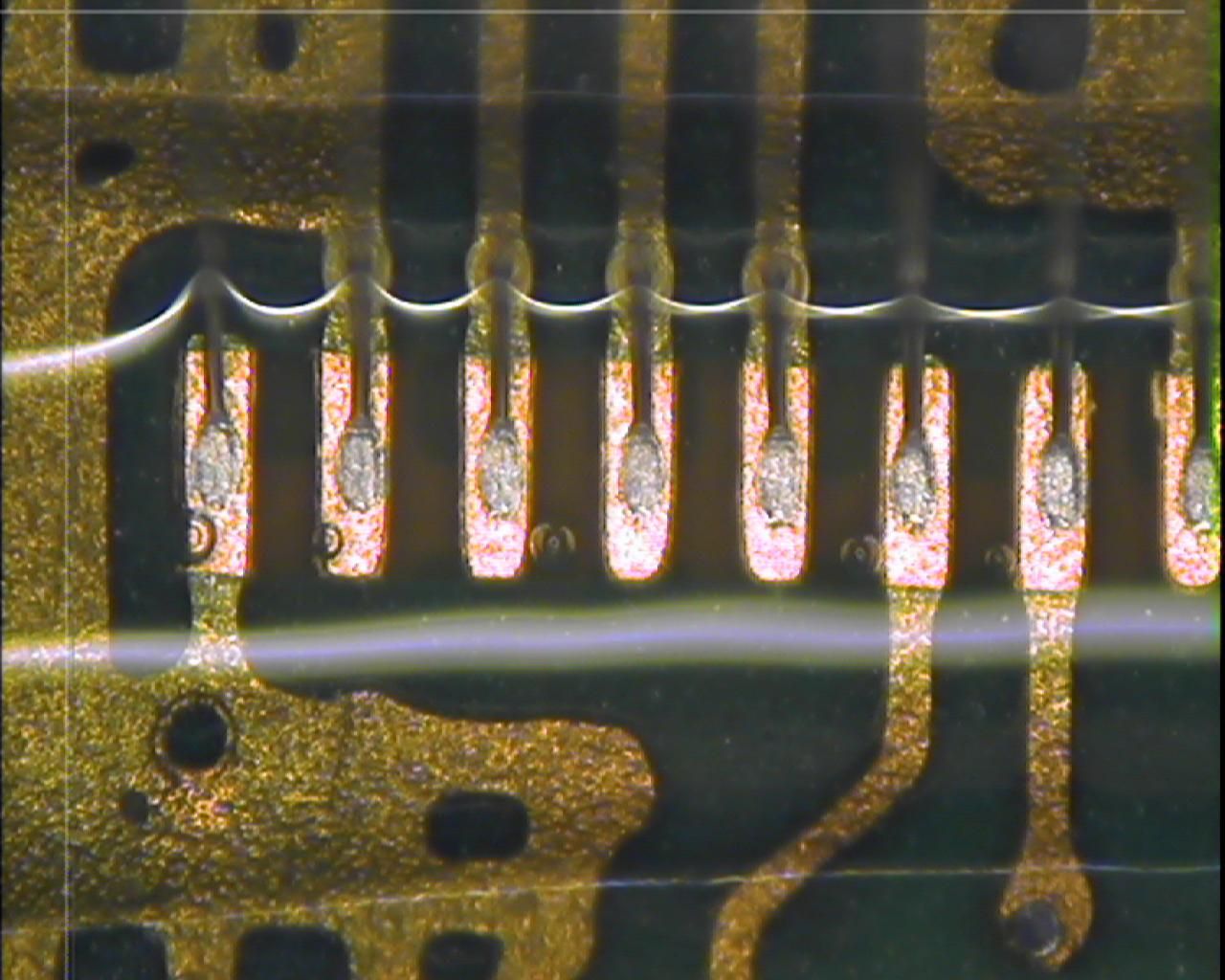

| Small bubbles in encapsulant near VHDI pads for wirebonds to ROC0 channels 1-7. |
PLAQUETTE encapsulated on 2/27/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 2/27/2007 by Arndt Kirk
P_1x2L_102_Aon 2/28/2007 11:59 AM
P_1x2L_102_Aon 2/28/2007 11:59 AM
PLAQUETTE TESTED on 2007-02-28 by Isaac Childres

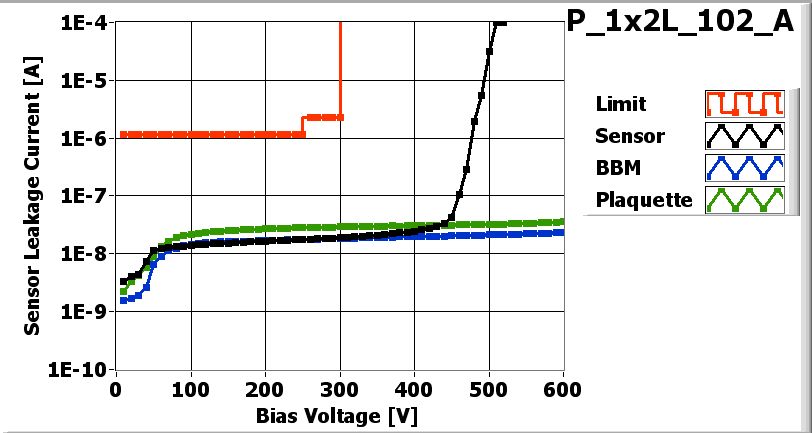

![[IMAGE] of](P_1x2L_102_A_IV.jpg) |
|
|||

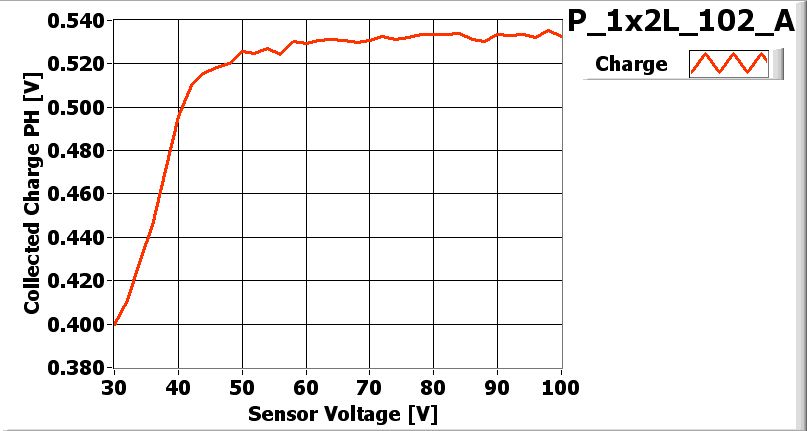

![[IMAGE] of](P_1x2L_102_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 138 | 140 | |
| Vana | 121 | 137 | |
| Cal_Del | 90 | 80 | |
| Vthrs_Comp | 77 | 68 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_102_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

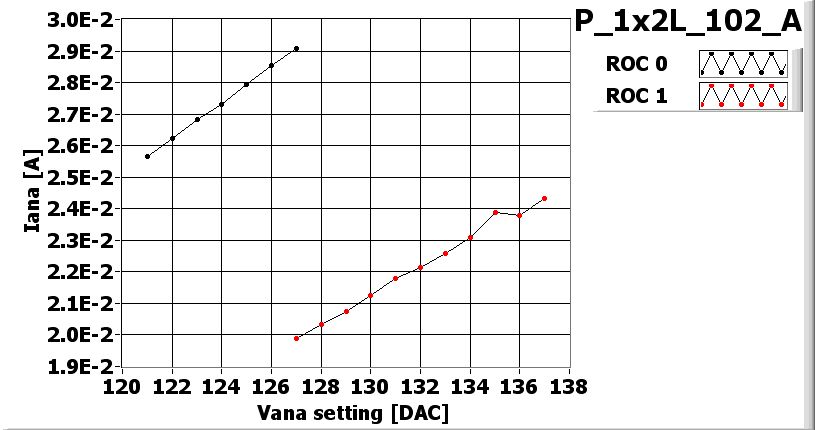

![[IMAGE] of](P_1x2L_102_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_102_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_102_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_102_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_102_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 180 | 100 |
| Vsf | 135 | 140 |
| VoffsetOp | 80 | 70 |
| VIbias_PH | 95 | 105 |
Noise MAP
![[IMAGE] of](P_1x2L_102_A-580-noise.jpg)

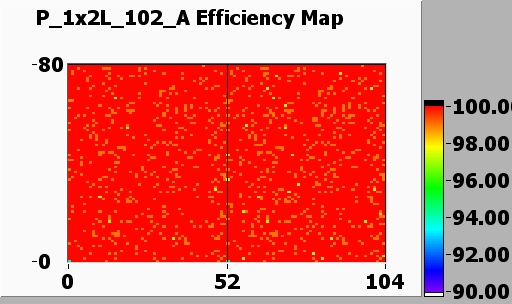

Efficiency MAP
![[IMAGE] of](P_1x2L_102_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
