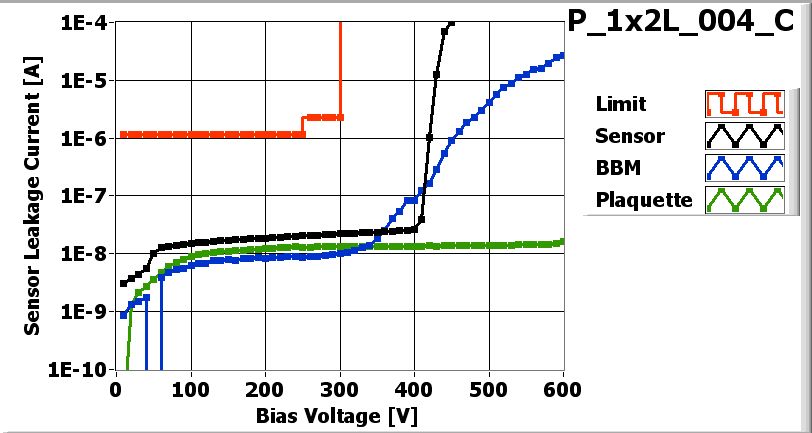

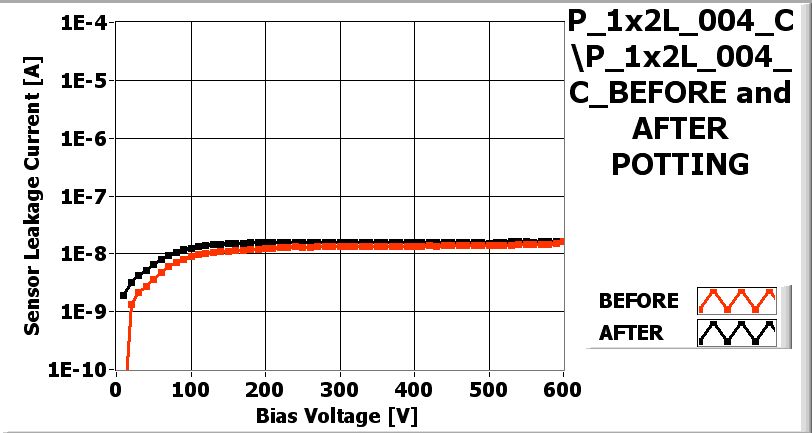

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_004_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_004-1x2T |
| VHDI | 1x2L_240 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 76B |
| ROC1 | XG4KFCT | 76A |
Inspected by Arndt Kirk on date 2/6/2007
| LR_dev | 0.085 |
| LL_dev | 0.105 |
| FINAL COMMENT by Arndt Kirk | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 2/6/2007 by Arndt Kirk
P_1x2L_004_Con 2/7/2007 9:33 AM
P_1x2L_004_C-1on 2/7/2007 10:10 AM
P_1x2L_004_C-1on 2/7/2007 10:10 AM
PLAQUETTE TESTED on 2007-02-07 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 138 | 144 | |
| Vana | 144 | 144 | |
| Cal_Del | 82 | 71 | |
| Vthrs_Comp | 84 | 92 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_004_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

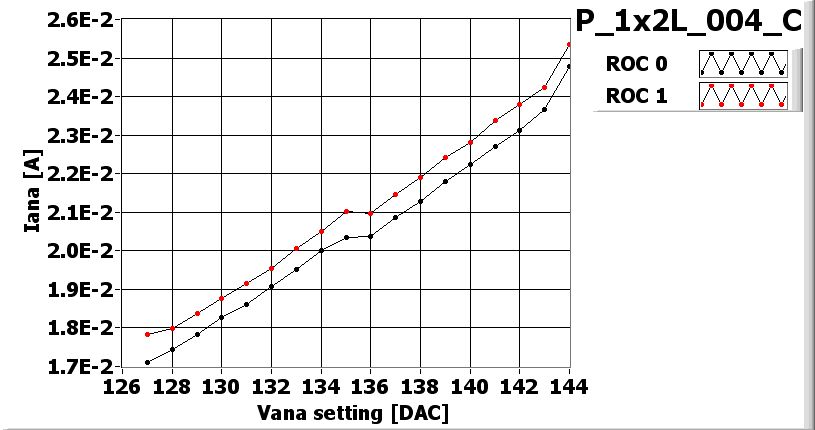

![[IMAGE] of](P_1x2L_004_C_Vana.jpg) |
VANA_XML-File |

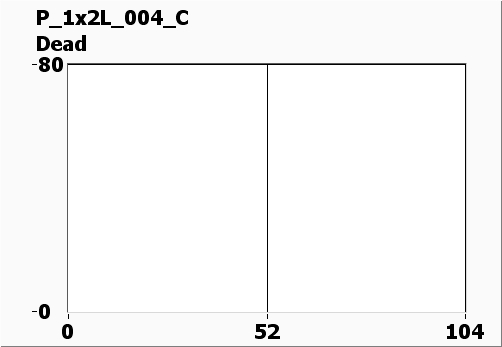

![[IMAGE] of](P_1x2L_004_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_004_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_004_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_004_Cno-bump-light.jpg) |
LIGHT_XML-File |

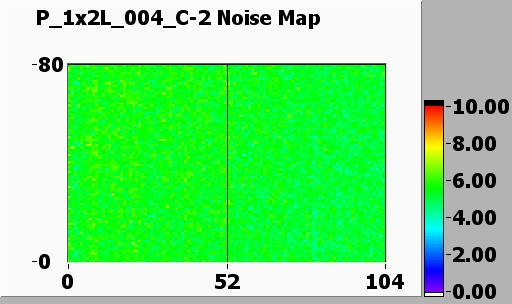

Noise MAP
![[IMAGE] of](P_1x2L_004_C-2-100-noise.jpg)

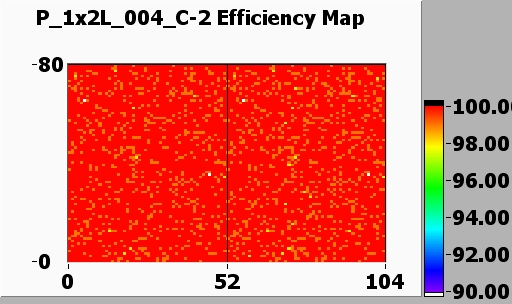

Efficiency MAP
![[IMAGE] of](P_1x2L_004_C-2-100-efficiency.jpg)

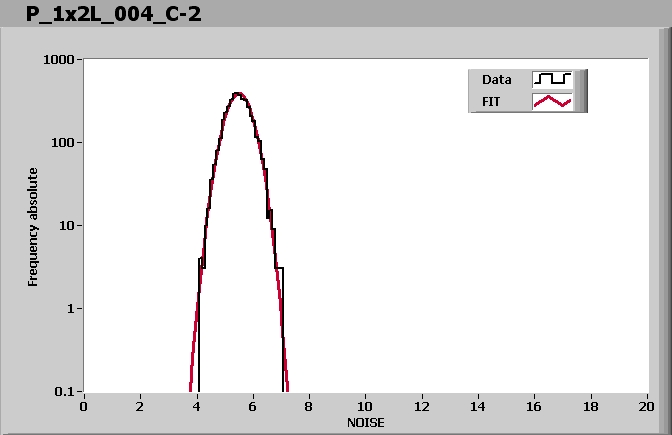

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_004_C-2-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_004_C-2-100-noise-ROC0-HISTO.jpg) | MEAN = 5.489886SIGMA = 0.428269 |

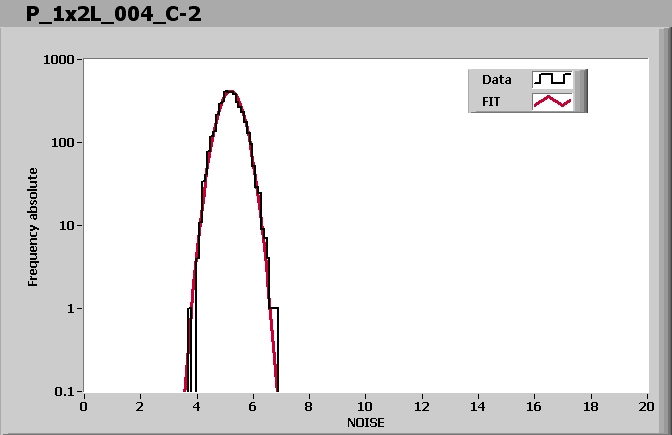

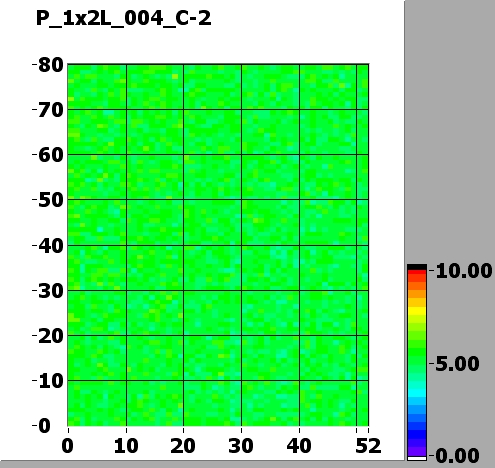

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_004_C-2-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_004_C-2-100-noise-ROC1-HISTO.jpg) | MEAN = 5.202050SIGMA = 0.401998 |
PLAQUETTE READY TO BE POTTED
