P_1x2L_004_C-1

Production testing

Date:2/7/2007

Operator: Gino Bolla

start testing time:10:10 AM

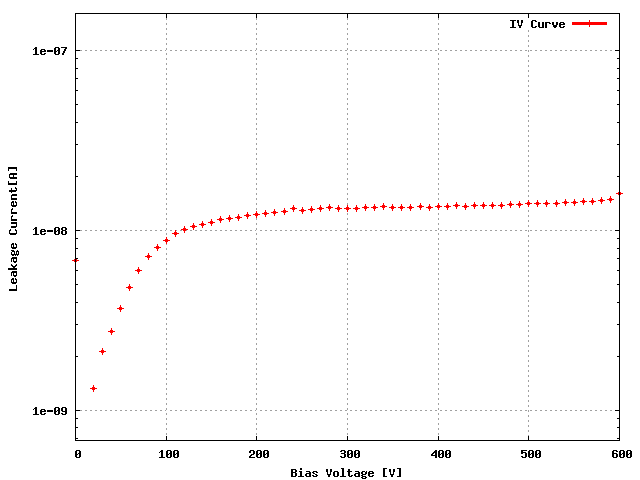

Sensor: S_1x2L_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XG4KFCT76B
ROC1XG4KFCT76A

Depletion Voltage is -50 and suggested operational voltage is -90
Ibias_DAC, Ibias_DAC Data 138 144
Vana, VanaData 144 144
CalDelData and plots8271
VthrCompData and plots8492
TestDdata ,TestD Plots00
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

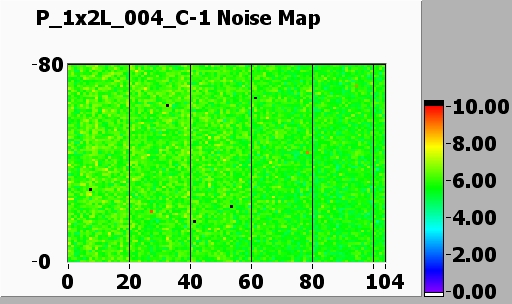

Noise MAP

[IMAGE] of

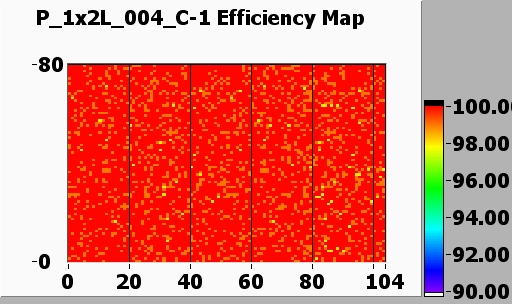

Efficiency MAP

[IMAGE] of

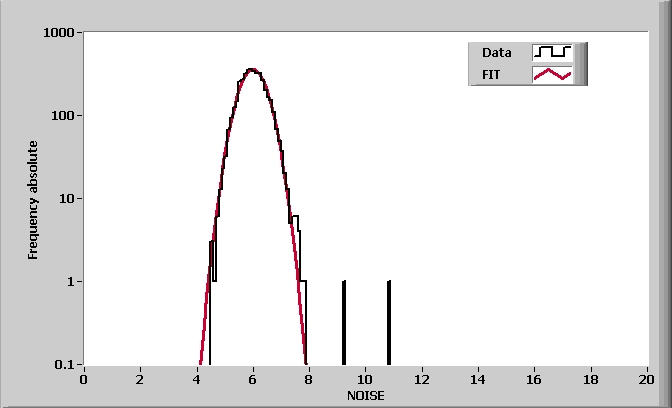

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 5.994850

SIGMA = 0.463177

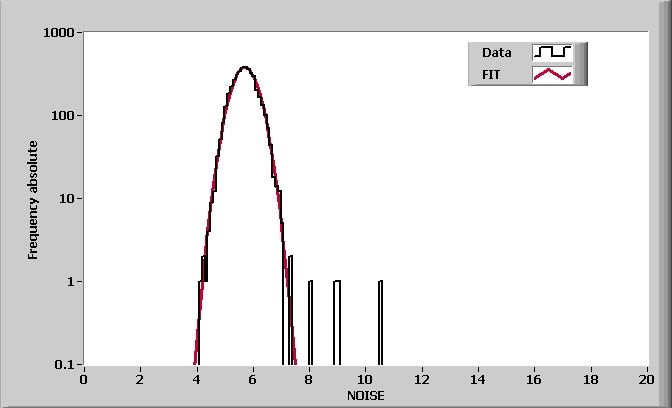

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 5.705058

SIGMA = 0.438245

Comment (if any): GOOD

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2L_004_C.html,

End testing time: 10:32 AM
