TEM Pictures of STM Tips

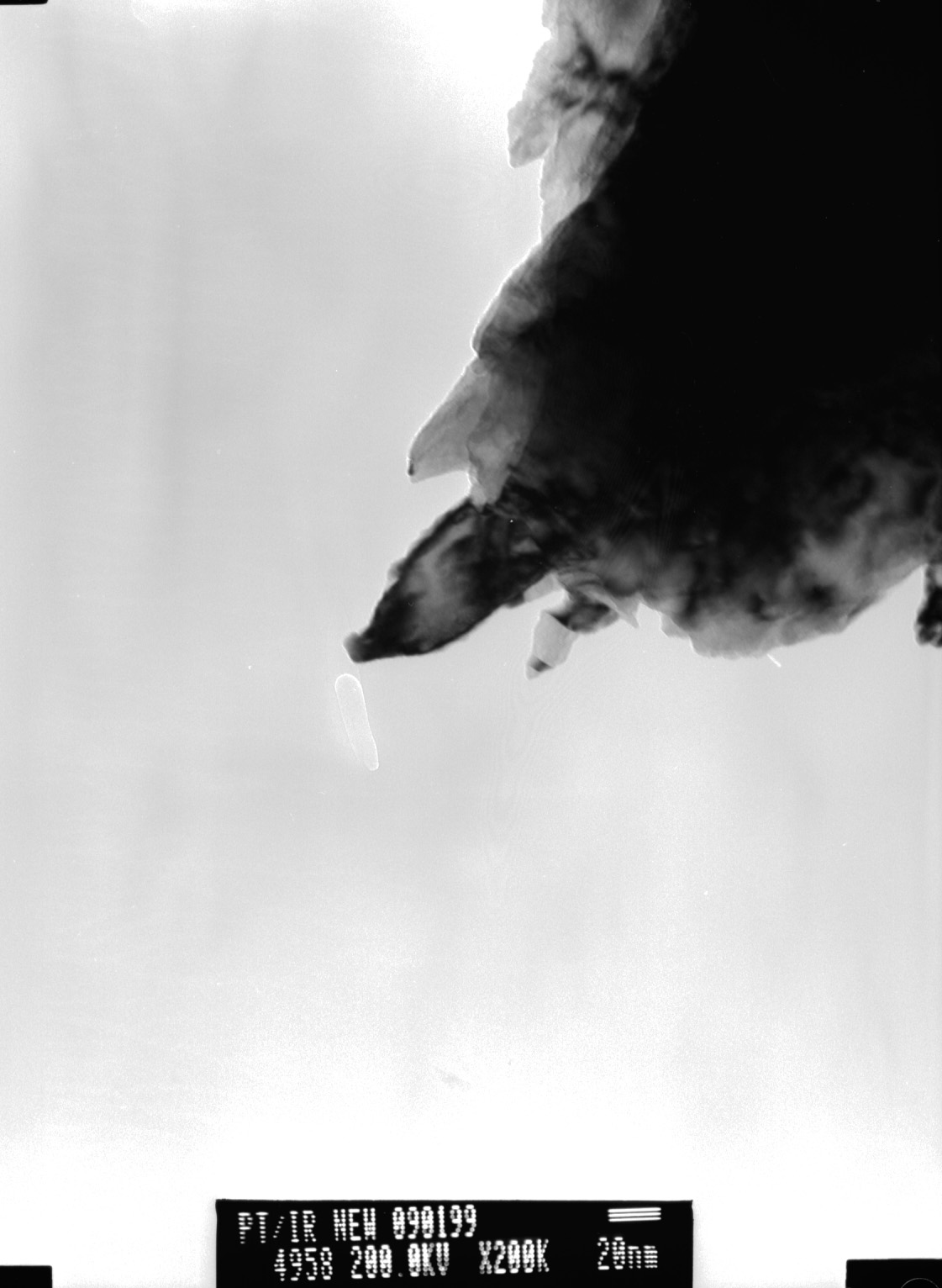

TEM Picture of a cut STM Tip (Pt/Ir, 0.008" diameter). The image was taken before the STM experiment
200 kV, Bar length = 20 nm

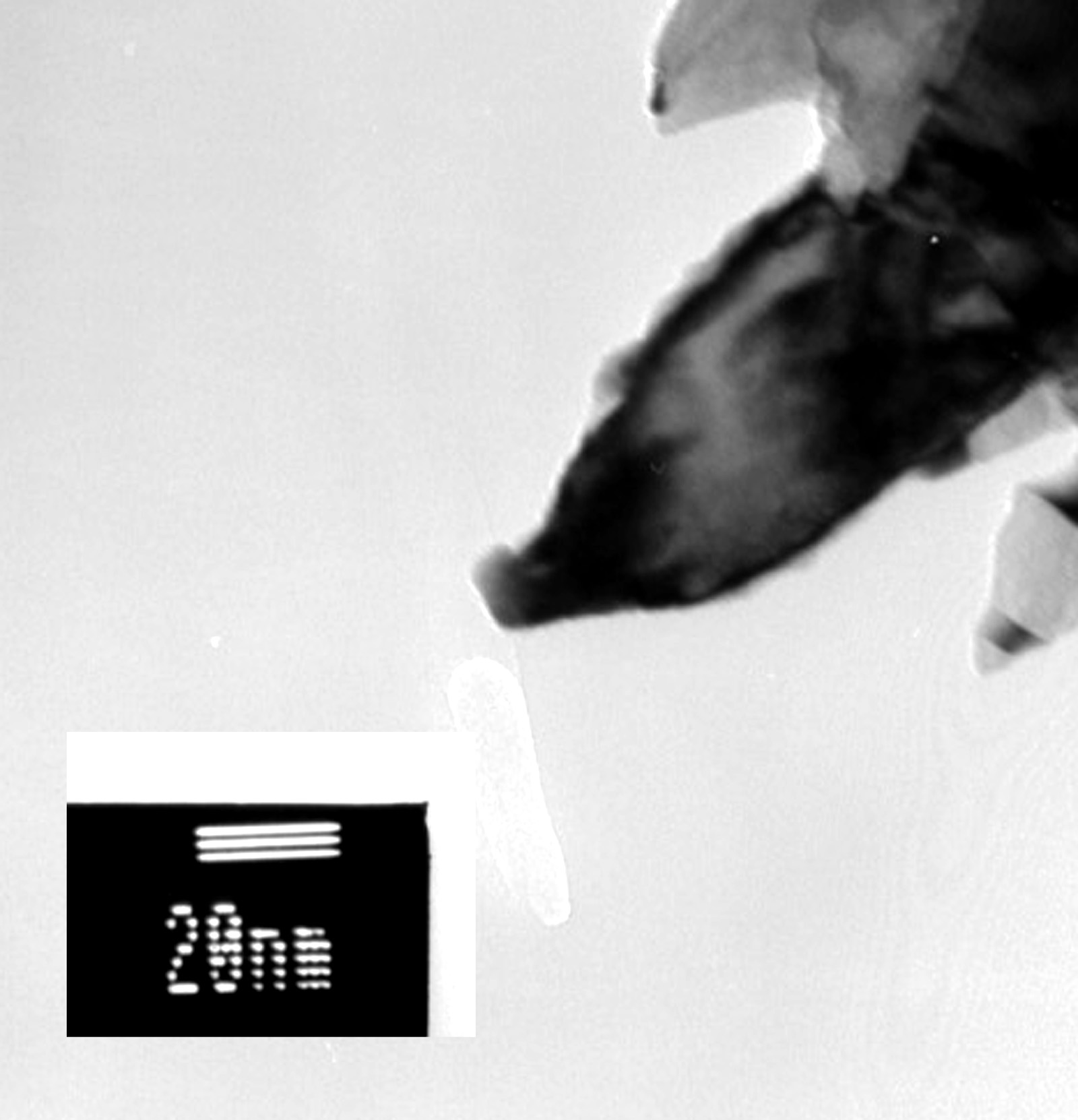

Zoomed-in picture of the above area.
The end of cut tip is very sharp with a size less than 20 nm.

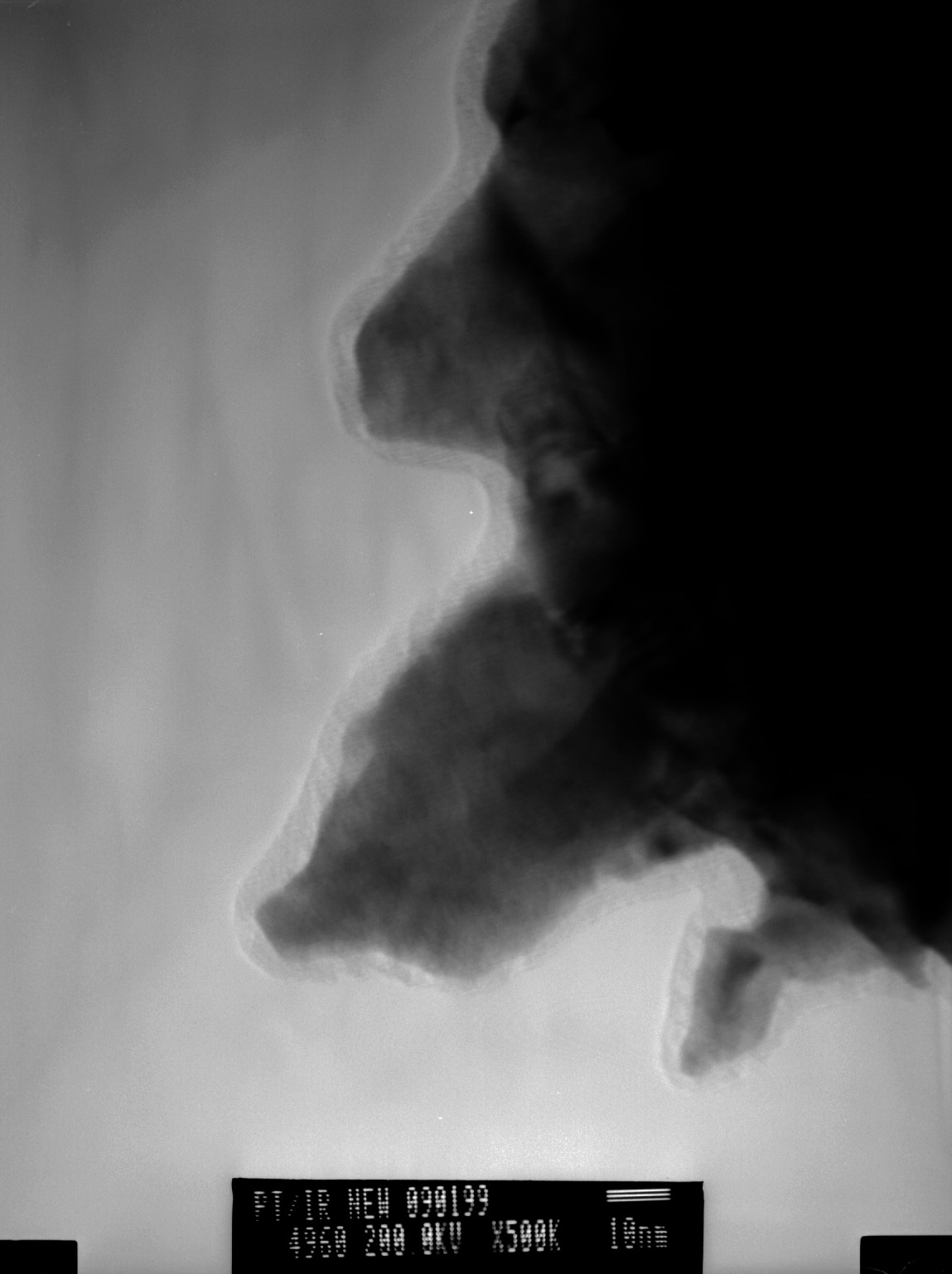

A higher magnification image of the end of the tip. Bar length = 10 nm.
Here you can see the oxide layer on the tip.

TEM pictures were taken by Elton Graugnard and Takhee Lee (Sep. 1999).
