![[IMAGE] of](P_2x5_175_A_IV.jpg)

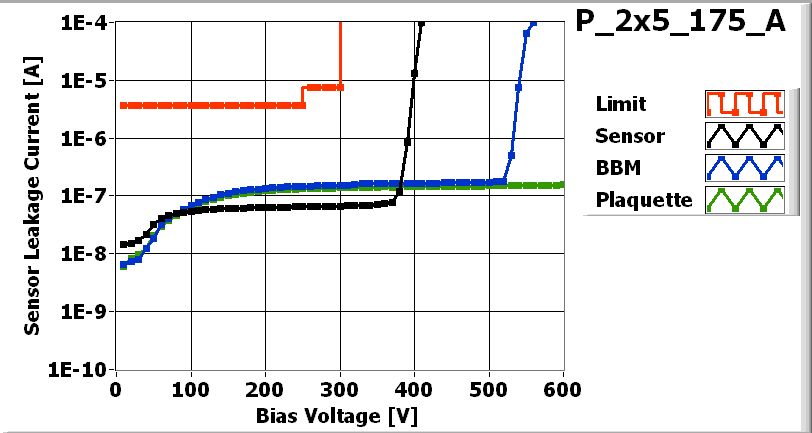

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_175_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/19/2007
| Part | ID |
|---|---|
| BBM | BBM_175-2x5 |
| VHDI | 2x5_276 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 68C |
| ROC1 | W28_X54K5TT | 68A |
| ROC2 | W28_X54K5TT | 67D |
| ROC3 | W28_X54K5TT | 06D |
| ROC4 | W28_X54K5TT | 67A |
| ROC5 | W28_X54K5TT | 46A |
| ROC6 | W28_X54K5TT | 46B |
| ROC7 | W33_XC4K5LT | 15A |
| ROC8 | W28_X54K5TT | 47D |
| ROC9 | W28_X54K5TT | 06C |
Inspected by Arndt Kirk on date 4/26/2007
| LR_dev | 0.011 |
| LL_dev | 0.013 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. Minor delamination near white label on VHDI seen as flexing during wirebonding of pads for HDI wirebonds. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/26/2007 by Arndt Kirk
PLAQUETTE encapsulated on 4/26/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/26/2007 by Ozhan Koybasi
P_2x5_175_Aon 4/27/2007 10:10 AM
P_2x5_175_A-1on 4/27/2007 10:11 AM
P_2x5_175_A-1on 4/27/2007 10:11 AM
PLAQUETTE TESTED on 2007-04-27 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 130 | 122 | 126 | 118 | 128 | 124 | 112 | 120 | 120 | 122 | |
| Vana | 139 | 151 | 141 | 135 | 155 | 127 | 139 | 152 | 114 | 123 | |
| Cal_Del | 78 | 90 | 84 | 75 | 77 | 81 | 86 | 77 | 85 | 80 | |
| Vthrs_Comp | 80 | 87 | 75 | 82 | 87 | 73 | 79 | 92 | 77 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_175_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

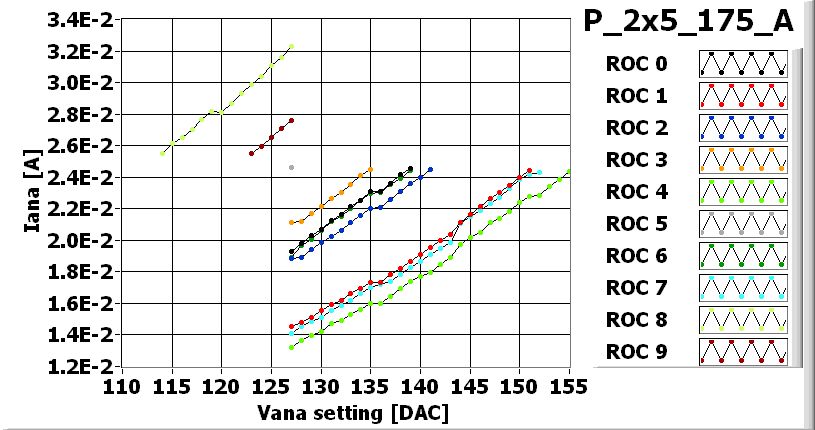

![[IMAGE] of](P_2x5_175_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_175_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_175_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_175_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_175_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 240 | 240 | 240 | 240 | 240 | 235 | 240 | 240 | 230 | 240 |
| Vsf | 175 | 180 | 175 | 180 | 195 | 165 | 200 | 185 | 160 | 160 |
| VoffsetOp | 85 | 75 | 90 | 80 | 90 | 80 | 70 | 80 | 70 | 80 |
| VIbias_PH | 105 | 100 | 100 | 110 | 105 | 95 | 105 | 100 | 100 | 105 |

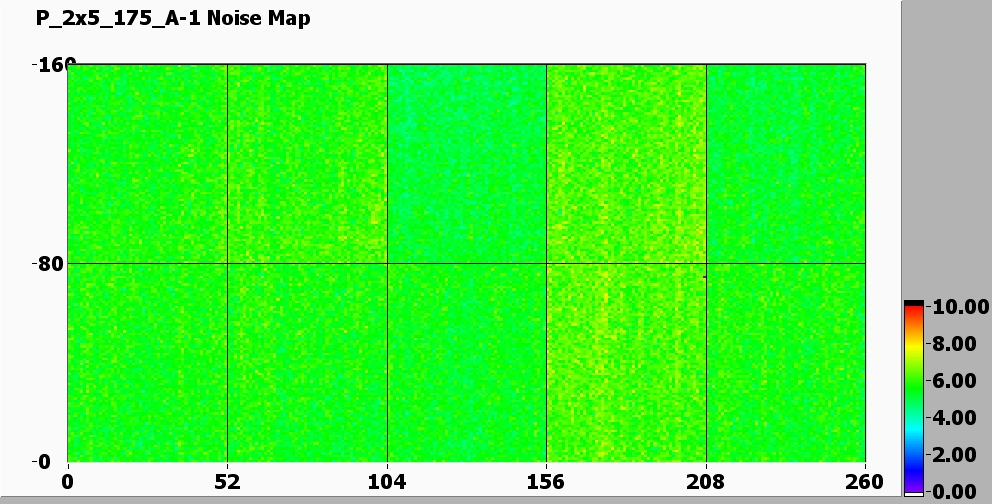

Noise MAP
![[IMAGE] of](P_2x5_175_A-1-580-noise.jpg)

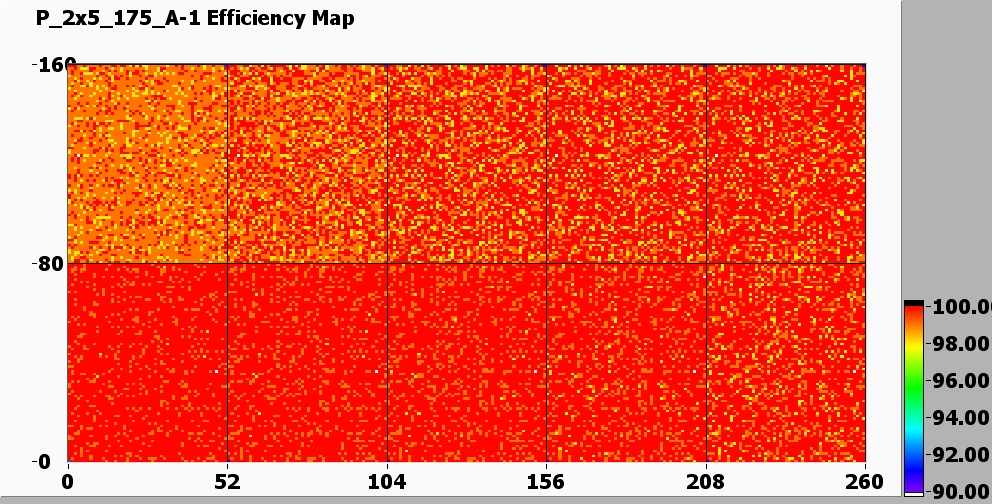

Efficiency MAP
![[IMAGE] of](P_2x5_175_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
