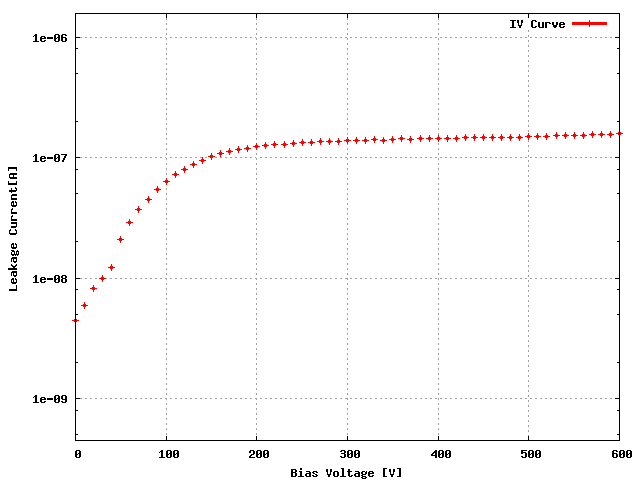

Sensor: S_2x5_175, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	68C
ROC1	W28_X54K5TT	68A
ROC2	W28_X54K5TT	67D
ROC3	W28_X54K5TT	06D
ROC4	W28_X54K5TT	67A
ROC5	W28_X54K5TT	46A
ROC6	W28_X54K5TT	46B
ROC7	W33_XC4K5LT	15A
ROC8	W28_X54K5TT	47D
ROC9	W28_X54K5TT	06C

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	130	122	126	118	128	124	112	120	120	122
Vana, VanaData	139	151	141	135	155	127	139	152	114	123
CalDelData and plots	78	90	84	75	77	81	86	77	85	80
VthrCompData and plots	80	87	75	82	87	73	79	92	77	84
TestDdata ,TestD Plots	0	0	0	1	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

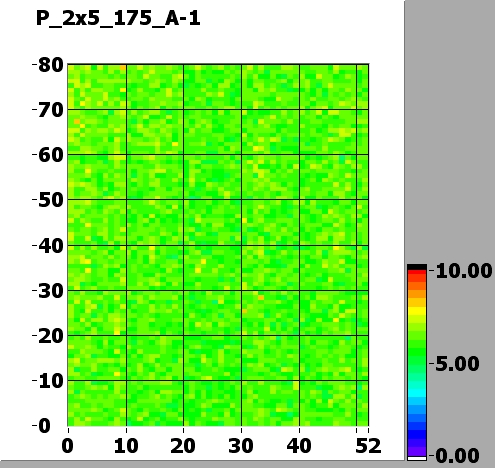

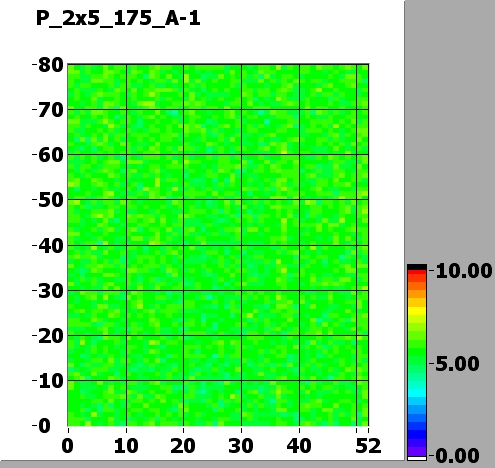

ROC0 NOISE			MEAN = 5.625347 SIGMA = 0.435676
ROC1 NOISE			MEAN = 5.595196 SIGMA = 0.426457
ROC2 NOISE			MEAN = 5.455001 SIGMA = 0.431353

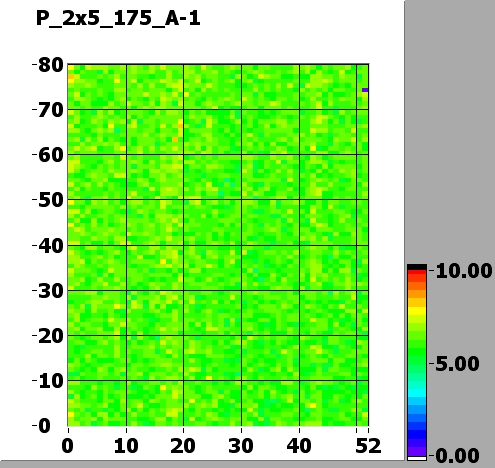

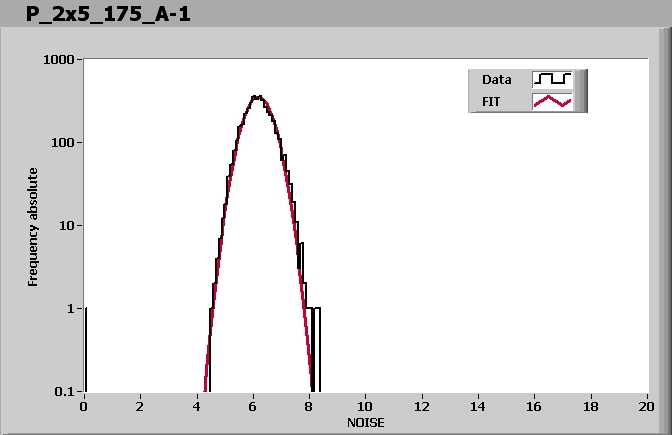

ROC3 NOISE			MEAN = 6.183557 SIGMA = 0.471819
ROC4 NOISE			MEAN = 5.630552 SIGMA = 0.428359
ROC5 NOISE			MEAN = 5.336851 SIGMA = 0.421062
ROC6 NOISE			MEAN = 6.199997 SIGMA = 0.454872

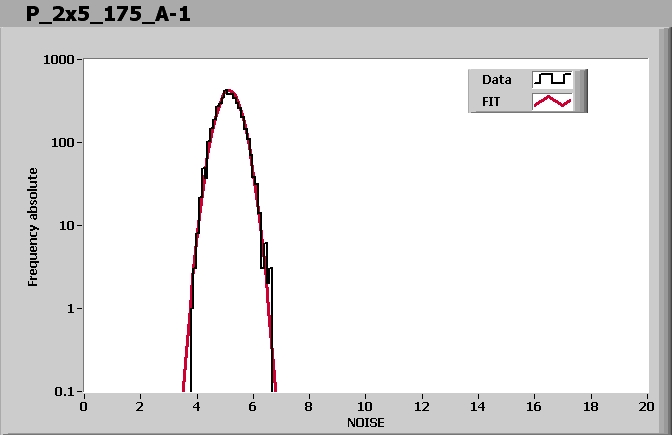

ROC7 NOISE			MEAN = 5.147667 SIGMA = 0.402029

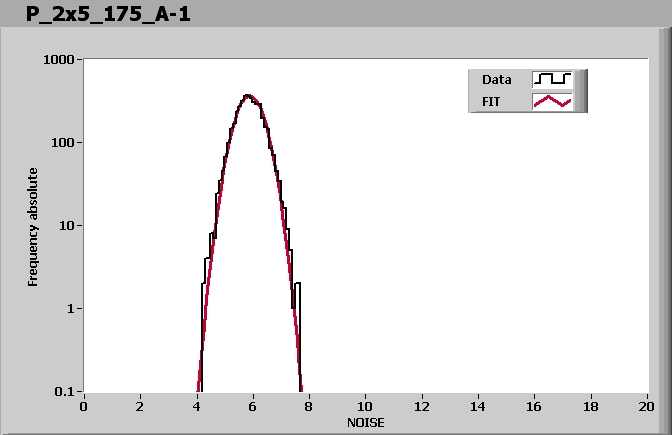

ROC8 NOISE			MEAN = 5.877173 SIGMA = 0.454698
ROC9 NOISE			MEAN = 5.631703 SIGMA = 0.438396

Comment (if any): Good.

P_2x5_175_A.html,

End testing time: 10:34 AM
