P_2x5_172

P_2x5_172_C

Parts committed by Bolla Gino on date 4/2/2007

Part	ID
BBM	BBM_172-2x5
VHDI	2x5_410

ROC ROC wafer Label

ROC0 XH4KFBT 47A

ROC1 XH4KFBT 47B

ROC2 XH4KFBT 48A

ROC3 XH4KFBT 48B

ROC4 XH4KFBT 49B

ROC5 XH4KFBT 43B

ROC6 XH4KFBT 44B

ROC7 XH4KFBT 45A

ROC8 XH4KFBT 45B

ROC9 XH4KFBT 46A

ROC	ROC wafer	Label
ROC0	XH4KFBT	47A
ROC1	XH4KFBT	47B
ROC2	XH4KFBT	48A
ROC3	XH4KFBT	48B
ROC4	XH4KFBT	49B
ROC5	XH4KFBT	43B
ROC6	XH4KFBT	44B
ROC7	XH4KFBT	45A
ROC8	XH4KFBT	45B
ROC9	XH4KFBT	46A

Inspected by Lockwood Gale on date 4/4/2007

LR_dev 0.009

LL_dev 0.020

FINAL COMMENT by Lockwood Gale No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/4/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/5/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/5/2007 by Ozhan Koybasi

P_2x5_172_Con 4/9/2007 10:00 AM

PLAQUETTE TESTED on 2007-04-09 by Gino Bolla

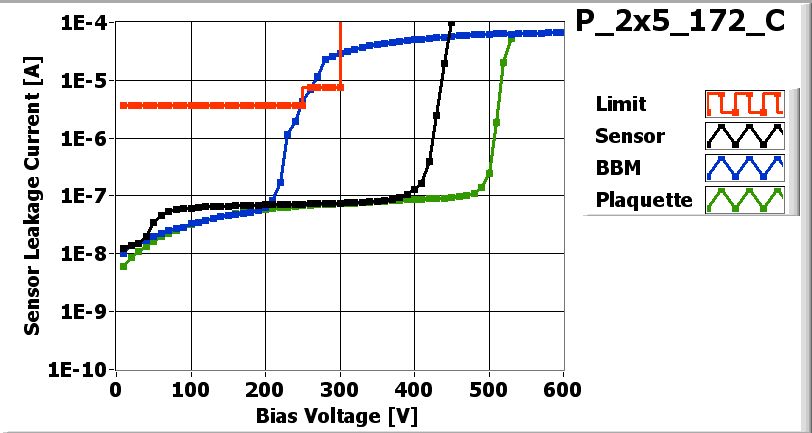

IV_XML-File

Maximum Voltage 530 V

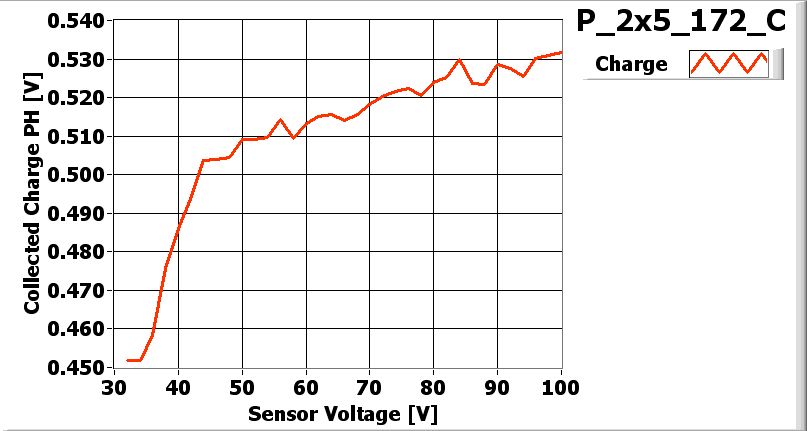

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	148	138	122	128	144	132	146	134	130	132
Vana	140	123	114	108	145	125	147	125	133	127
Cal_Del	77	78	96	97	61	90	74	74	86	78
Vthrs_Comp	77	67	70	62	90	68	81	83	63	75
Unbumped	0	0	1	0	22	0	1	1	0	0
Dead	1	0	0	0	2	0	0	0	0	1
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	1	0	1	0	24	0	1	1	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

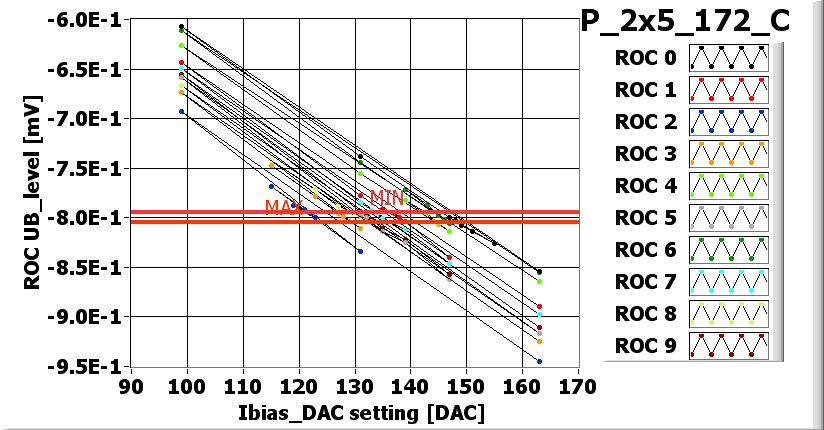

	I_BIAS_DAC_XML-File

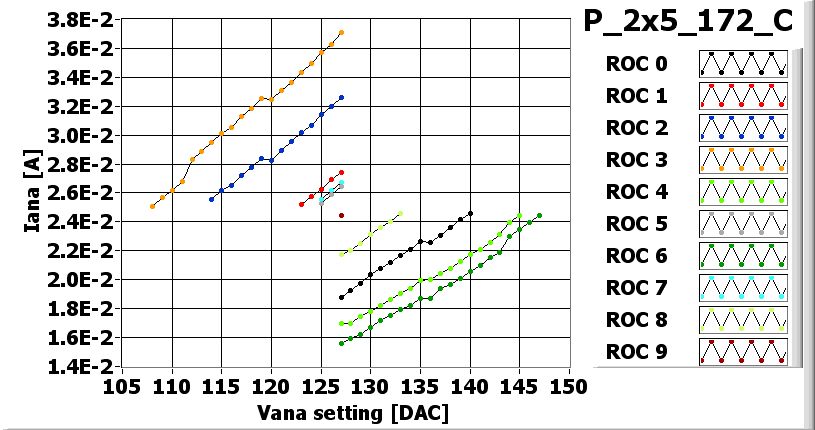

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

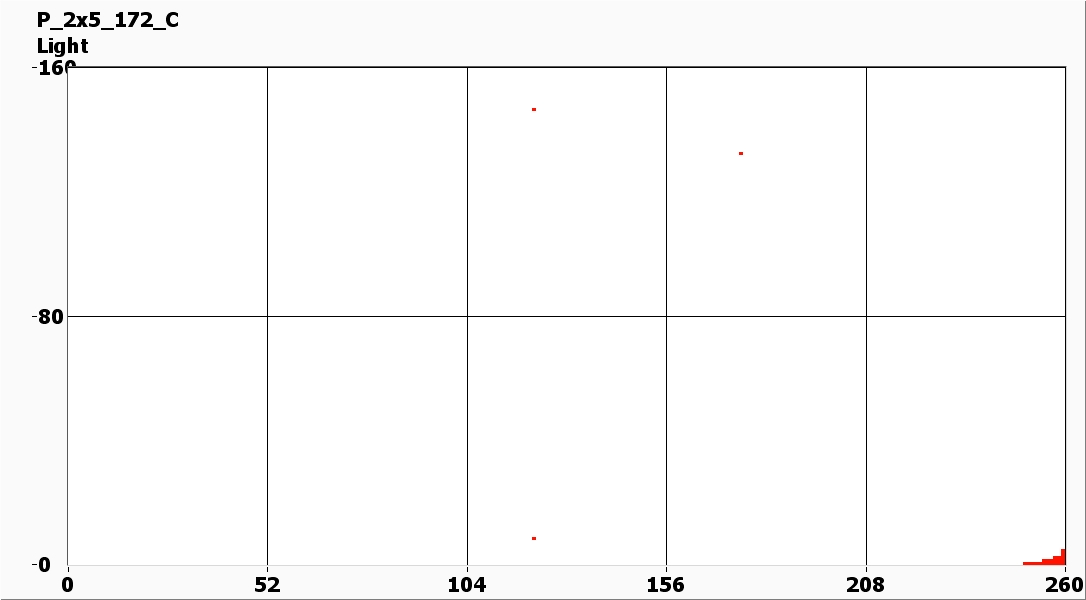

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	95	120	145	165	100	125	90	145	120	125
Vsf	145	140	135	135	145	135	145	140	140	140
VoffsetOp	70	60	70	80	115	60	85	75	80	85
VIbias_PH	100	105	100	105	100	95	105	100	95	100

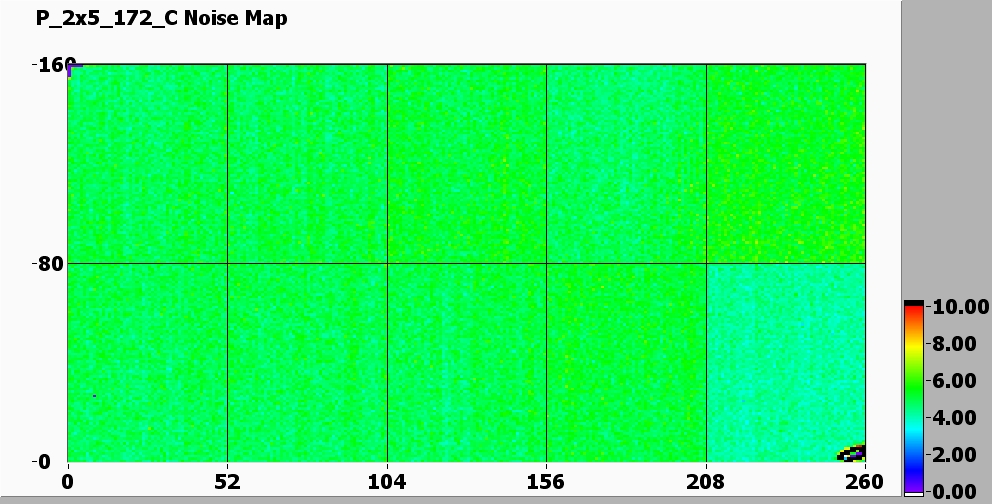

Noise MAP

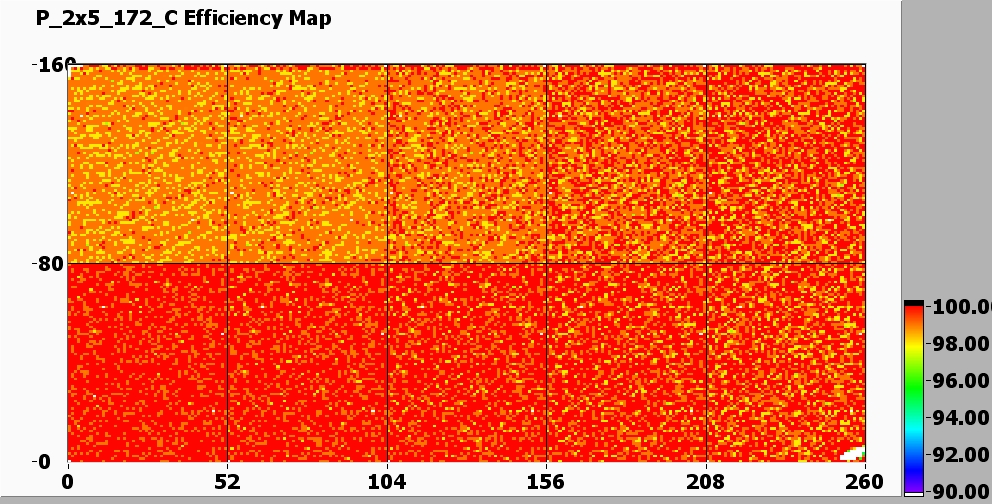

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-04-10
