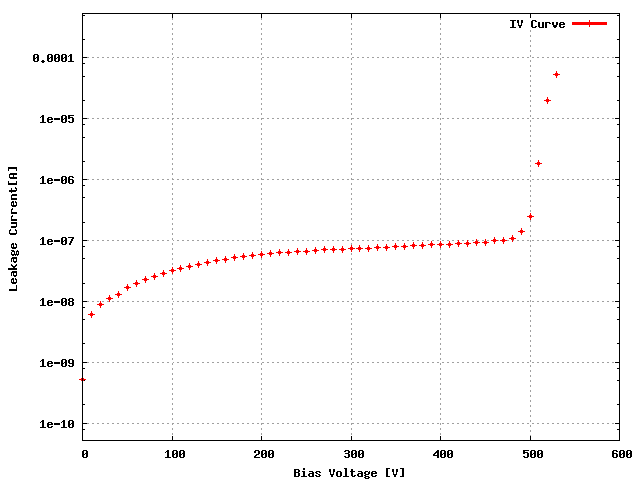

Sensor: S_2x5_172, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	47A
ROC1	XH4KFBT	47B
ROC2	XH4KFBT	48A
ROC3	XH4KFBT	48B
ROC4	XH4KFBT	49B
ROC5	XH4KFBT	43B
ROC6	XH4KFBT	44B
ROC7	XH4KFBT	45A
ROC8	XH4KFBT	45B
ROC9	XH4KFBT	46A

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	148	138	122	128	144	132	146	134	130	132
Vana, VanaData	140	123	114	108	145	125	147	125	133	127
CalDelData and plots	77	78	96	97	61	90	74	74	86	78
VthrCompData and plots	77	67	70	62	90	68	81	83	63	75
TestDdata ,TestD Plots	1	0	1	0	23	0	1	1	0	1
LightData ,Light Plots	0	0	1	0	22	0	1	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

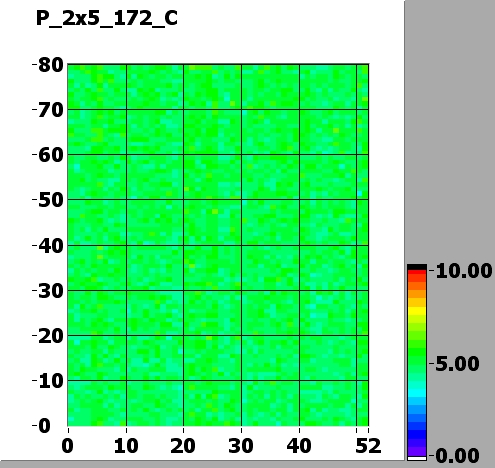

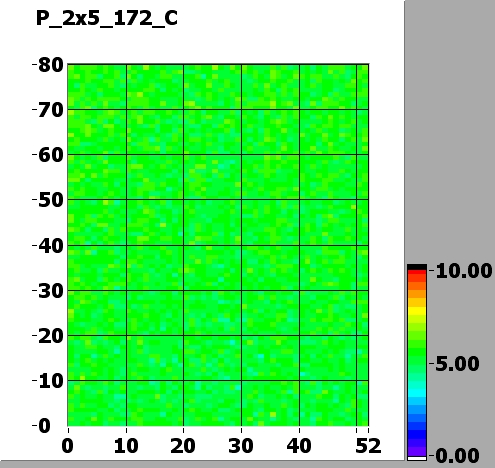

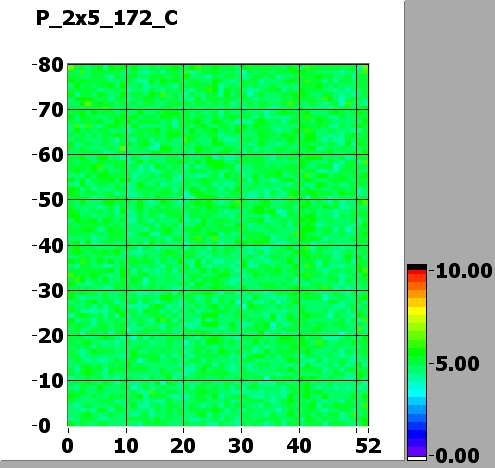

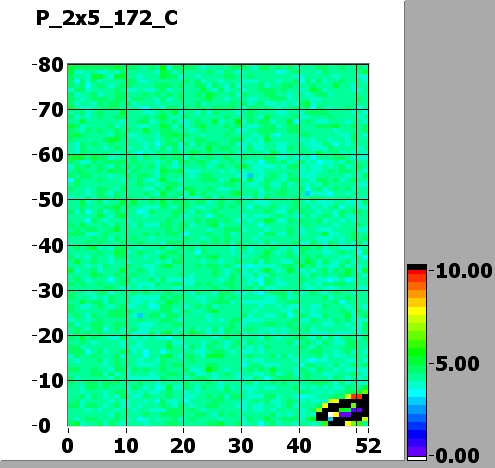

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

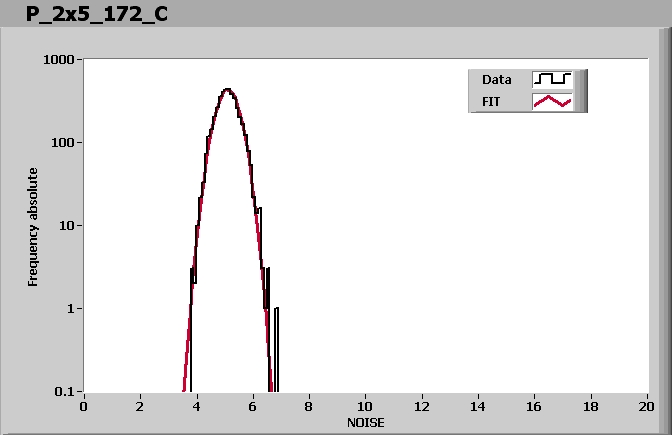

ROC0 NOISE			MEAN = 4.837824 SIGMA = 0.386181
ROC1 NOISE			MEAN = 4.857184 SIGMA = 0.391259
ROC2 NOISE			MEAN = 4.890764 SIGMA = 0.380489
ROC3 NOISE			MEAN = 5.094540 SIGMA = 0.382368

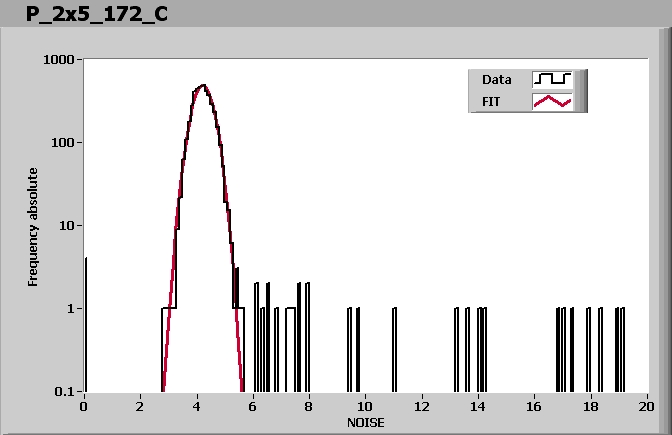

ROC4 NOISE			MEAN = 4.208634 SIGMA = 0.336584
ROC5 NOISE			MEAN = 5.368985 SIGMA = 0.423464
ROC6 NOISE			MEAN = 4.785892 SIGMA = 0.393146

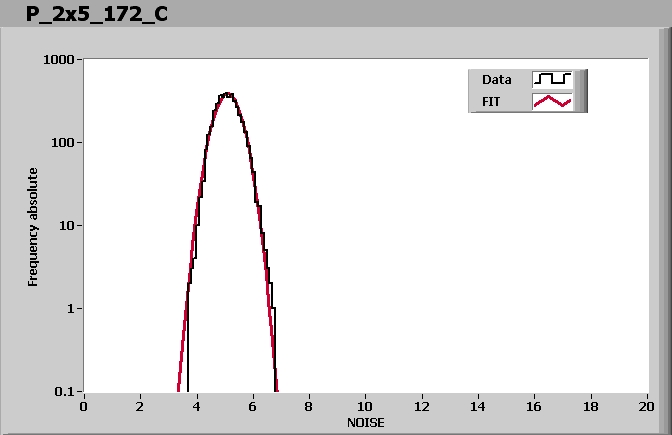

ROC7 NOISE			MEAN = 5.091862 SIGMA = 0.429683
ROC8 NOISE			MEAN = 4.893767 SIGMA = 0.398828
ROC9 NOISE			MEAN = 4.860005 SIGMA = 0.388347

Comment (if any): OK

End testing time: 10:22 AM
