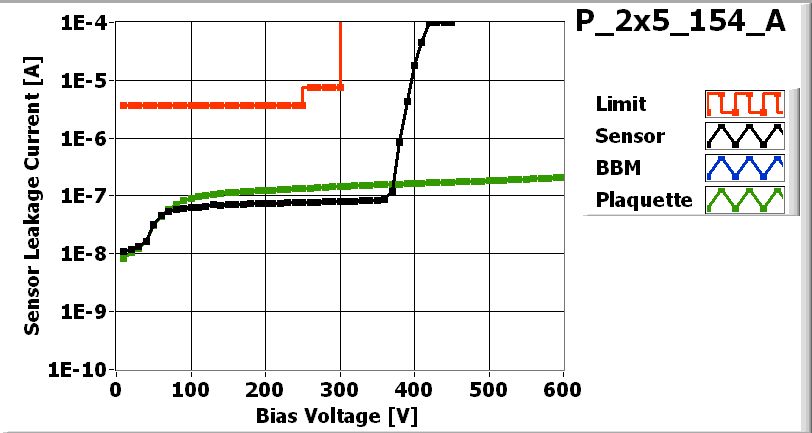

![[IMAGE] of](P_2x5_154_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_154_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_154-2x5 |
| VHDI | 2x5_725 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 61D |
| ROC1 | W21_XA4KFIT | 61C |
| ROC2 | W21_XA4KFIT | 73A |
| ROC3 | W52_D0LQC8T | 06D |
| ROC4 | W52_D0LQC8T | 15D |
| ROC5 | W21_XA4KFIT | 11B |
| ROC6 | W21_XA4KFIT | 21A |
| ROC7 | W21_XA4KFIT | 25B |
| ROC8 | W21_XA4KFIT | 25D |
| ROC9 | W21_XA4KFIT | 39D |
Inspected by Lockwood Gale on date 2/29/2008
| LR_dev | 0.041 |
| LL_dev | 0.028 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 0 Ch 35, 2 tries, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/29/2008 by Lockwood Gale
PLAQUETTE encapsulated on 3/5/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/5/2008 by Ozhan Koybasi
P_2x5_154_Aon 3/6/2008 2:10 PM
P_2x5_154_Aon 3/6/2008 2:10 PM
PLAQUETTE TESTED on 2008-03-06 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 154 | 166 | 160 | 162 | 144 | 148 | 146 | 154 | 140 | 158 | |
| Vana | 123 | 142 | 134 | 153 | 157 | 127 | 117 | 130 | 121 | 132 | |
| Cal_Del | 73 | 67 | 88 | 80 | 91 | 93 | 84 | 90 | 103 | 72 | |
| Vthrs_Comp | 76 | 80 | 79 | 93 | 92 | 74 | 70 | 71 | 68 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

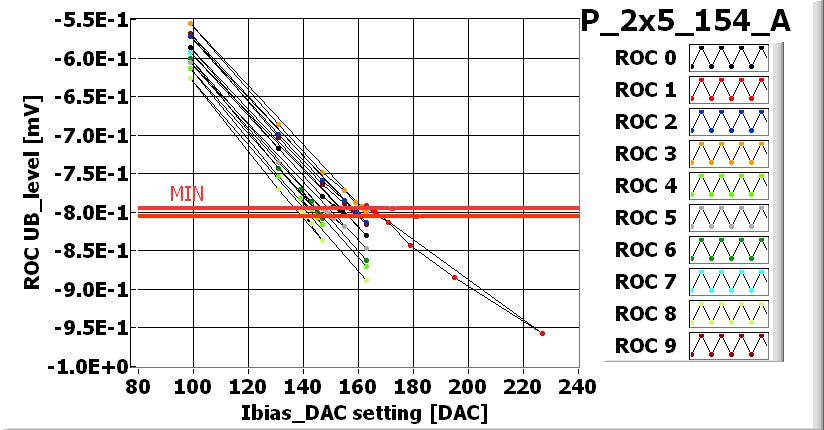

![[IMAGE] of](P_2x5_154_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

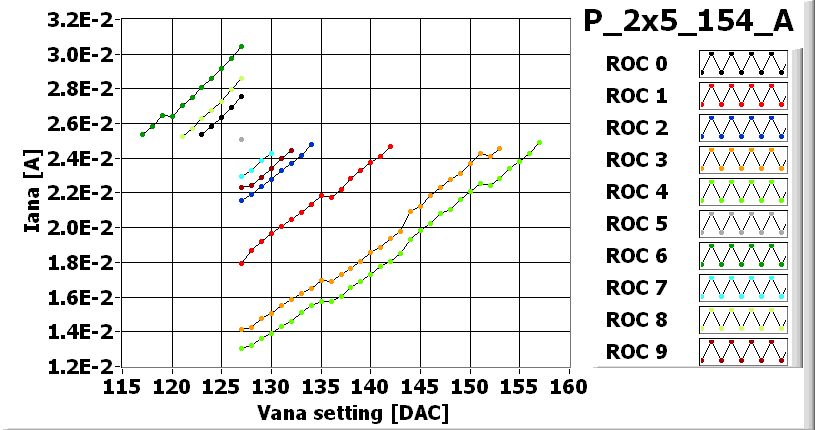

![[IMAGE] of](P_2x5_154_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_154_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_154_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_154_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_154_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 95 | 110 | 95 | 100 | 135 | 150 | 120 | 130 | 115 |
| Vsf | 135 | 140 | 135 | 150 | 150 | 135 | 135 | 140 | 140 | 135 |
| VoffsetOp | 60 | 80 | 90 | 105 | 105 | 70 | 45 | 90 | 55 | 75 |
| VIbias_PH | 100 | 95 | 100 | 105 | 100 | 100 | 95 | 105 | 95 | 110 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_154_A-580-noise.jpg)

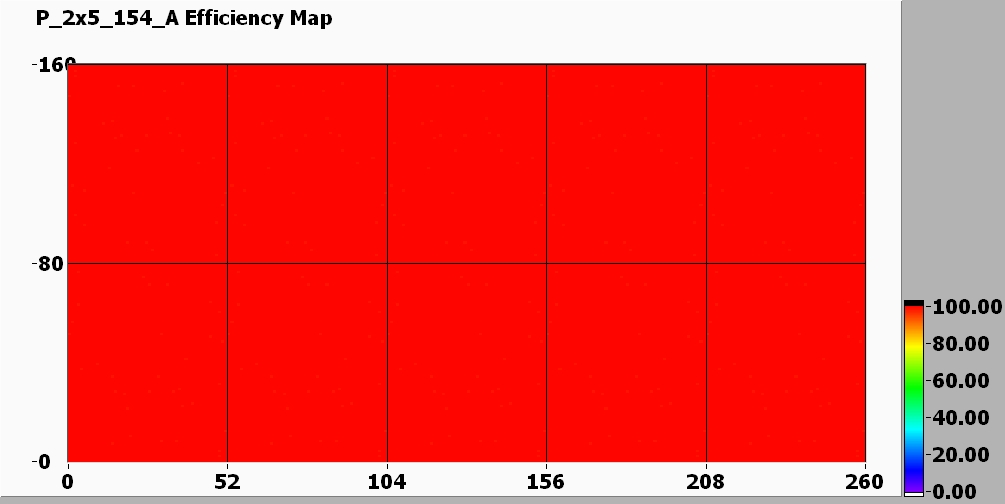

Efficiency MAP
![[IMAGE] of](P_2x5_154_A-580-efficiency.jpg)

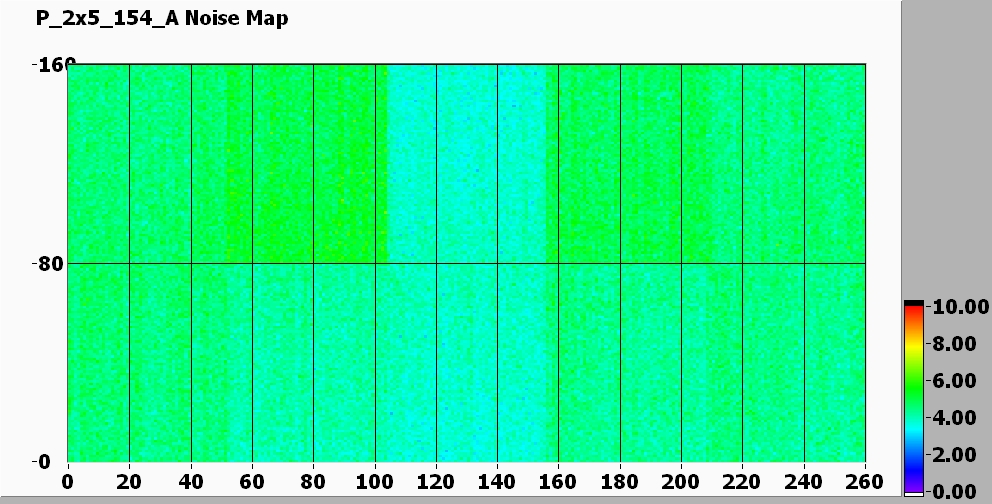

Noise MAP at -200 V
![[IMAGE] of](P_2x5_154_A-200-noise.jpg)

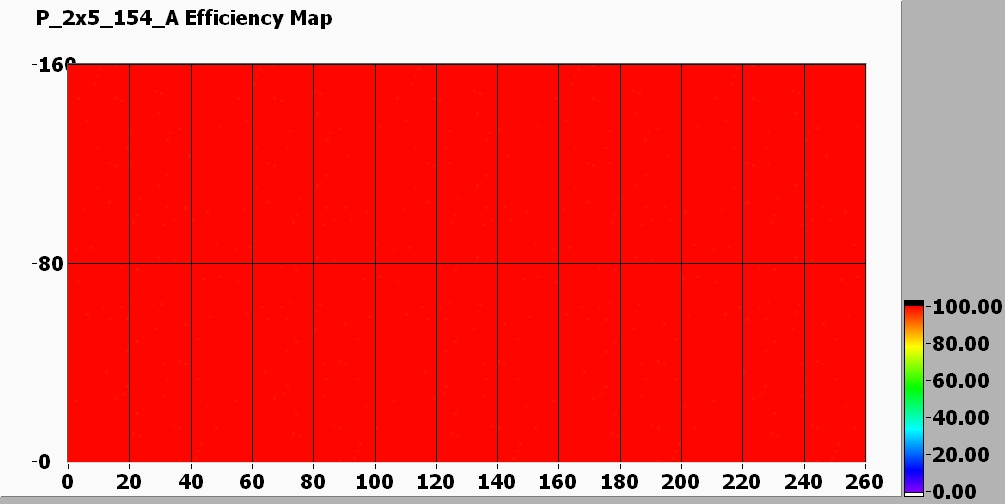

Efficiency MAP
![[IMAGE] of](P_2x5_154_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
