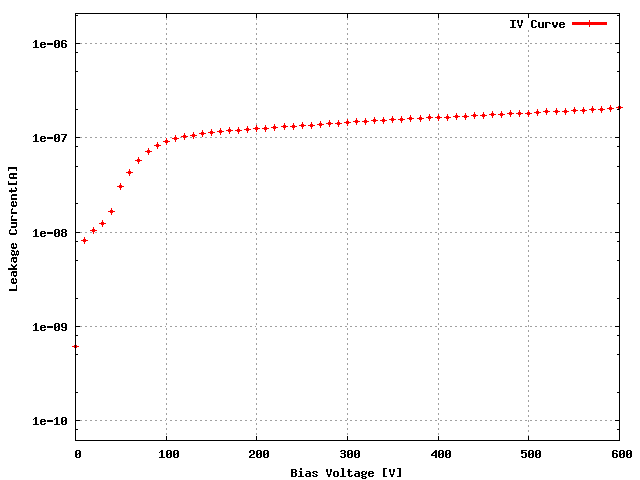

Sensor: S_2x5_154, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W21_XA4KFIT	61D
ROC1	W21_XA4KFIT	61C
ROC2	W21_XA4KFIT	73A
ROC3	W52_D0LQC8T	06D
ROC4	W52_D0LQC8T	15D
ROC5	W21_XA4KFIT	11B
ROC6	W21_XA4KFIT	21A
ROC7	W21_XA4KFIT	25B
ROC8	W21_XA4KFIT	25D
ROC9	W21_XA4KFIT	39D

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	154	166	160	162	144	148	146	154	140	158
Vana, VanaData	123	142	134	153	157	127	117	130	121	132
CalDelData and plots	73	67	88	80	91	93	84	90	103	72
VthrCompData and plots	76	80	79	93	92	74	70	71	68	80
TestDdata ,TestD Plots	0	0	1	0	0	2	0	0	1	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

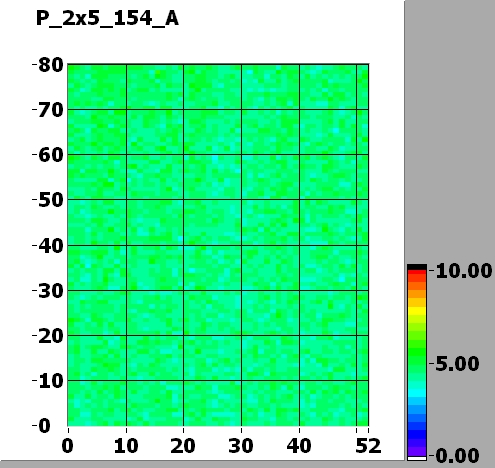

ROC0 NOISE			MEAN = 4.480938 SIGMA = 0.364897
ROC1 NOISE			MEAN = 4.090416 SIGMA = 0.317881
ROC2 NOISE			MEAN = 3.803152 SIGMA = 0.308092

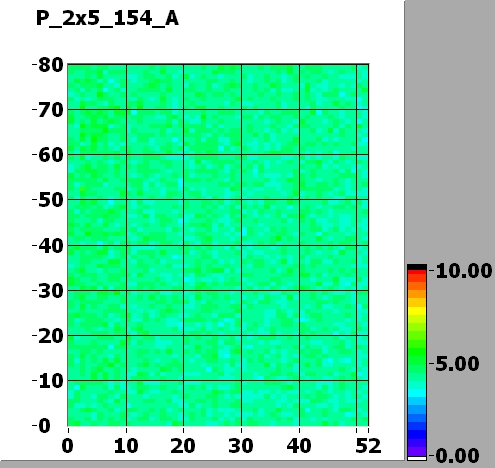

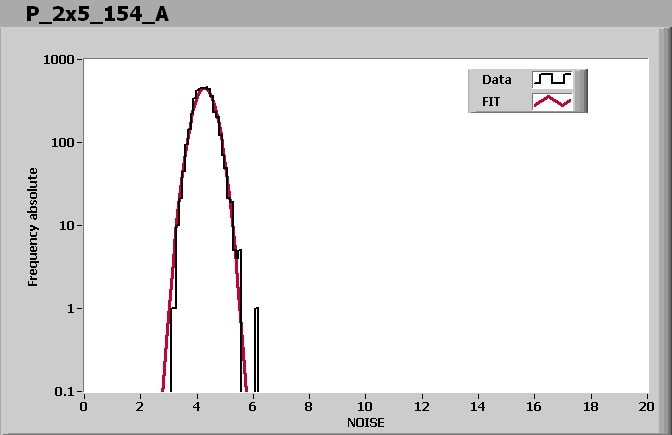

ROC3 NOISE			MEAN = 4.269279 SIGMA = 0.360035

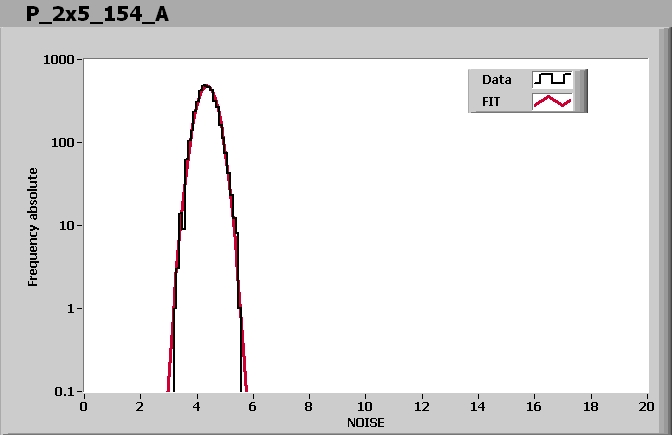

ROC4 NOISE			MEAN = 4.356556 SIGMA = 0.337528

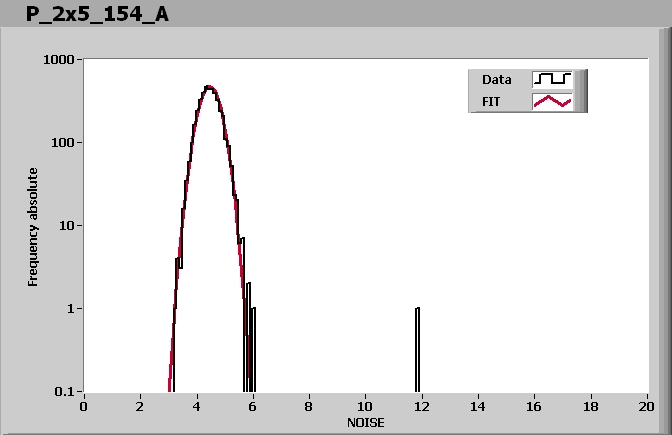

ROC5 NOISE			MEAN = 4.454859 SIGMA = 0.353473
ROC6 NOISE			MEAN = 4.780099 SIGMA = 0.384518

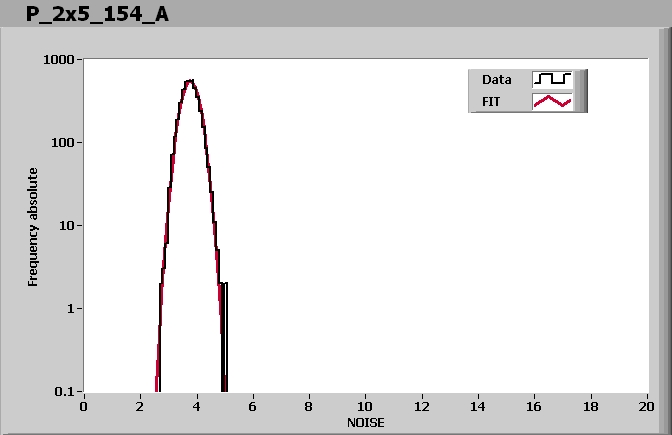

ROC7 NOISE			MEAN = 3.767519 SIGMA = 0.296537
ROC8 NOISE			MEAN = 4.983144 SIGMA = 0.417131

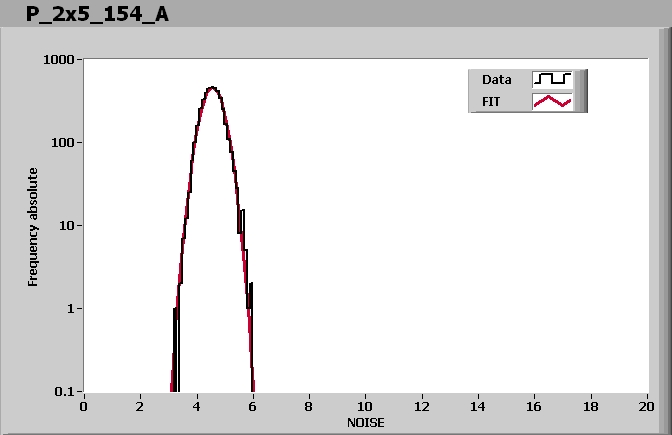

ROC9 NOISE			MEAN = 4.554105 SIGMA = 0.359022

Comment (if any):

End testing time: 2:40 PM
