![[IMAGE] of](P_2x5_140_C-0.jpg)
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_140-2x5 |
| VHDI | 2x5_621 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DULQEDT | 24A |
| ROC1 | DULQEDT | 75A |
| ROC2 | DULQEDT | 34D |
| ROC3 | DULQEDT | 34A |
| ROC4 | DULQEDT | 05C |
| ROC5 | DULQEDT | 74A |
| ROC6 | DULQEDT | 55B |
| ROC7 | DULQEDT | 06A |
| ROC8 | DULQEDT | 06D |
| ROC9 | DULQEDT | 15B |
Inspected by Arndt Kirk on date 6/18/2007
| LR_dev | 0.038 |
| LL_dev | 0.036 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. ROC0 ch 35 and ROC8 ch 35 required scraping traces on VHDI to bond wires. ROC4 ch 35, ROC 7 ch 1, ROC8 ch 24 required multiple attempts to bond to VHDI pads. All wires OK. |
PLAQUETTE made READY for ENCAPSULATION on 6/18/2007 by Arndt Kirk
Inspected by Arndt Kirk on date 6/18/2007
| Picture | Comment |
|---|---|

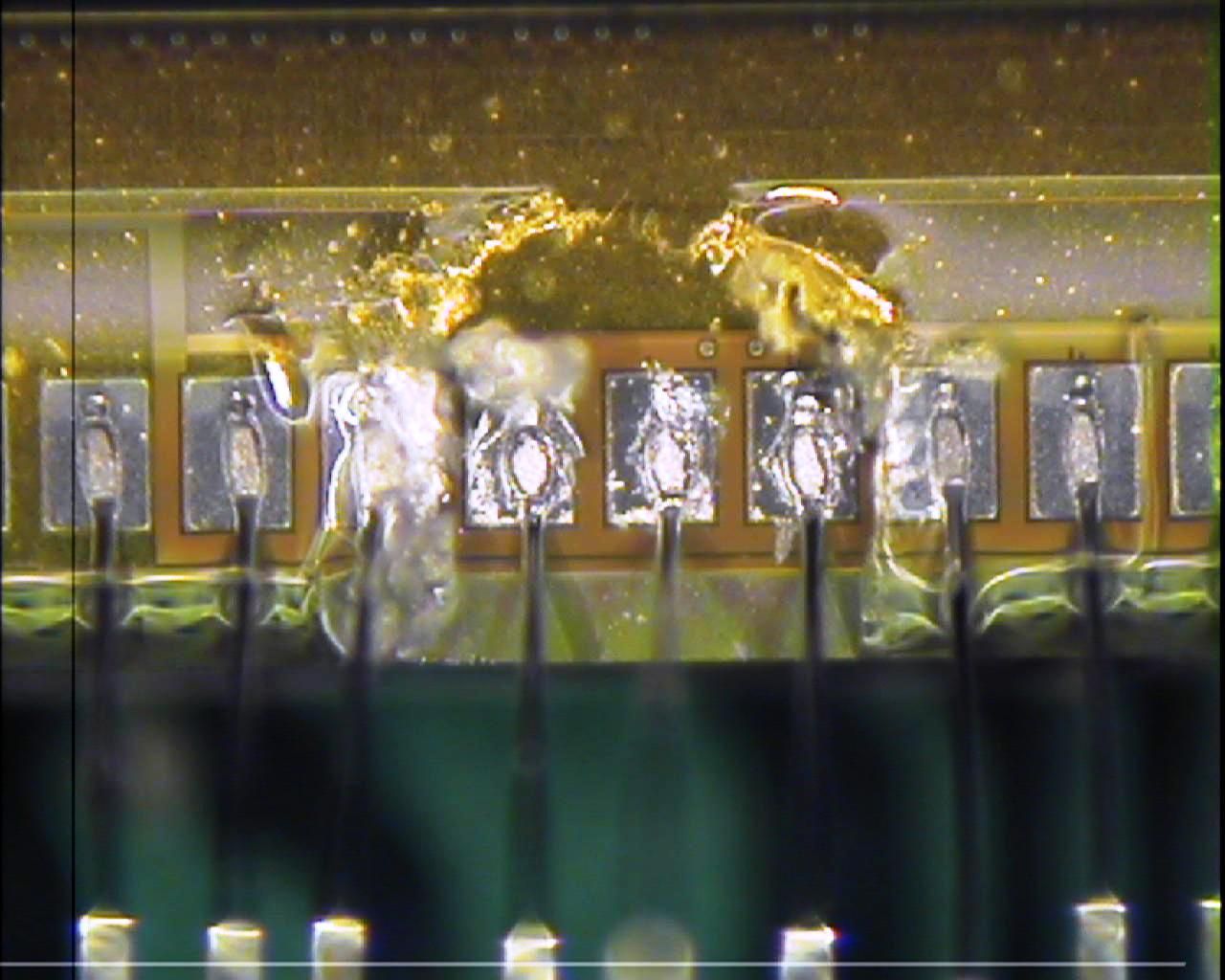

| ROC8 channel 24 wirebond broke (foot lift on VHDI pad) during encapsulation. Cut through encapsulation beads on ROC and VHDI and repaired wirebonds for ROC8 channels 23-25. Repaired bonds on ROC pads pictured here before (re)encapsulation. |
Inspected by Arndt Kirk on date 6/18/2007
| Picture | Comment |
|---|---|
![[IMAGE] of](P_2x5_140_C-1.jpg) | Reaired wirbonds on VHDI for ROC8 chaneels 23-25 before (re)encapsulation. |
PLAQUETTE encapsulated on 6/20/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/20/2007 by Ozhan Koybasi
P_2x5_140_Con 6/21/2007 9:59 AM
P_2x5_140_Con 6/21/2007 9:59 AM
PLAQUETTE TESTED on 2007-06-21 by Emily Grace

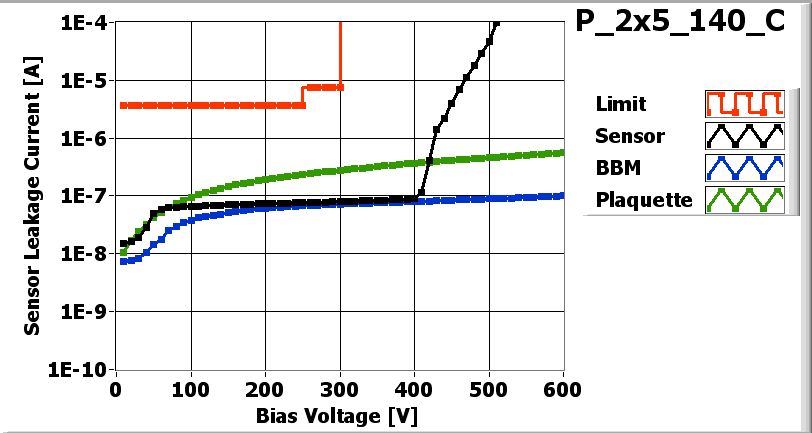

![[IMAGE] of](P_2x5_140_C_IV.jpg) |
|
|||

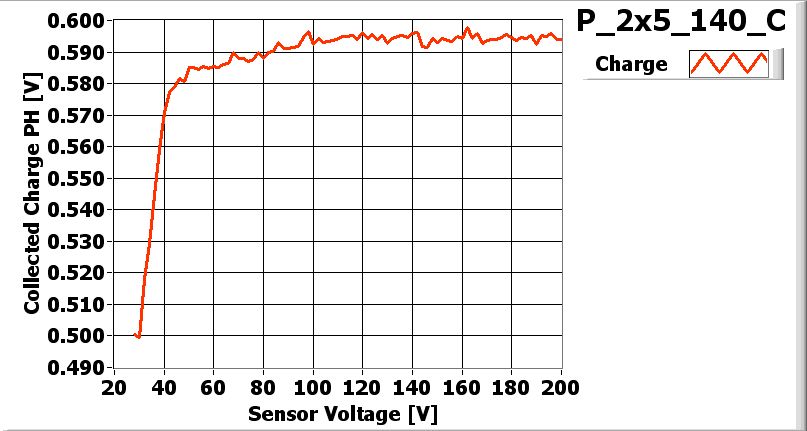

![[IMAGE] of](P_2x5_140_C_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 150 | 152 | 150 | 146 | 160 | 146 | 154 | 156 | 166 | 156 | |
| Vana | 142 | 139 | 141 | 126 | 159 | 165 | 132 | 154 | 145 | 148 | |
| Cal_Del | 79 | 68 | 85 | 75 | 86 | 74 | 81 | 91 | 95 | 94 | |
| Vthrs_Comp | 90 | 89 | 82 | 79 | 91 | 90 | 80 | 89 | 84 | 80 | |
| Unbumped | 8 | 3 | 1 | 0 | 22 | 3 | 0 | 0 | 63 | 4 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 8 | 6 | 1 | 0 | 22 | 3 | 0 | 1 | 63 | 4 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

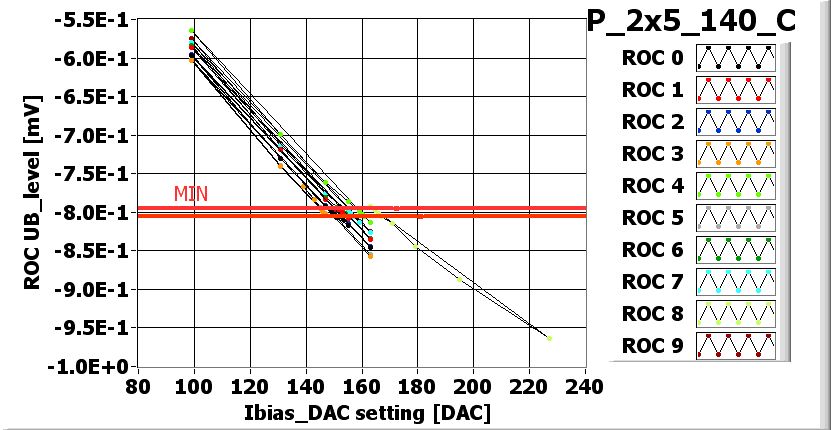

![[IMAGE] of](P_2x5_140_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

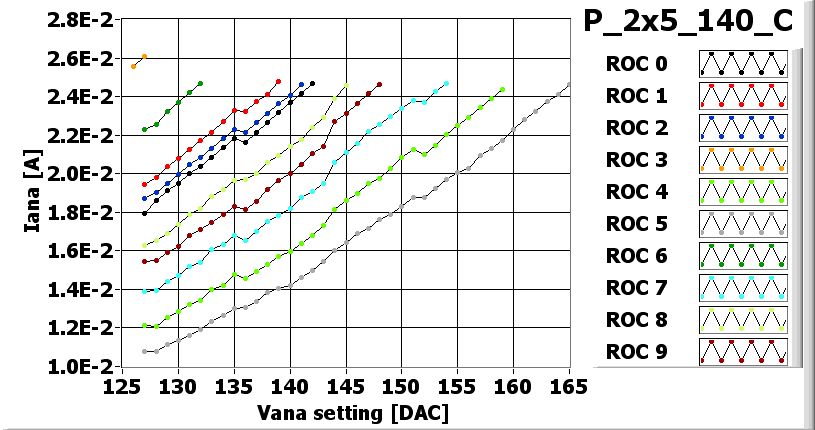

![[IMAGE] of](P_2x5_140_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_140_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_140_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_140_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_140_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 110 | 100 | 130 | 95 | 95 | 105 | 90 | 95 | 105 |
| Vsf | 145 | 140 | 140 | 140 | 160 | 160 | 135 | 155 | 140 | 145 |
| VoffsetOp | 105 | 80 | 110 | 75 | 105 | 95 | 90 | 100 | 95 | 105 |
| VIbias_PH | 100 | 100 | 105 | 110 | 100 | 105 | 100 | 100 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_140_C-580-noise.jpg)

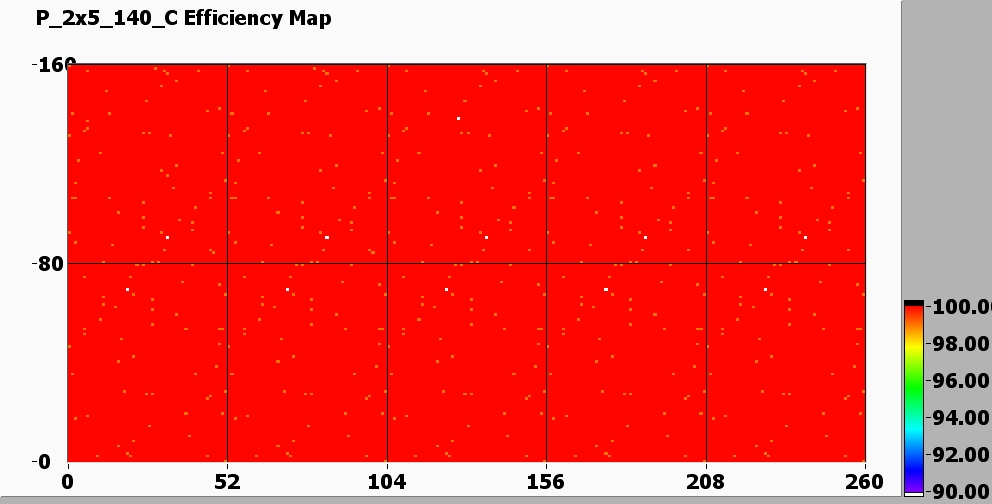

Efficiency MAP
![[IMAGE] of](P_2x5_140_C-580-efficiency.jpg)

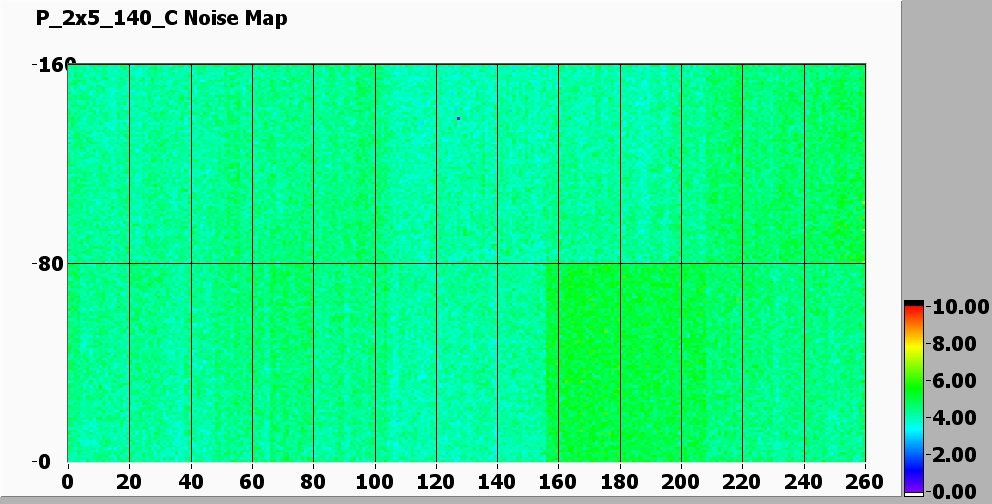

Noise MAP at -200 V
![[IMAGE] of](P_2x5_140_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_140_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
