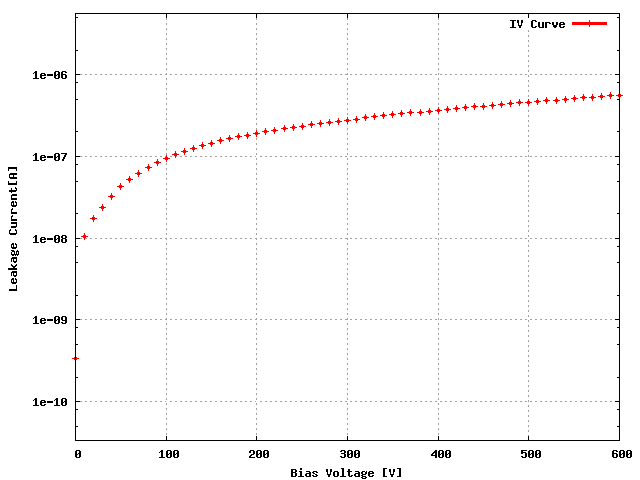

Sensor: S_2x5_140, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	DULQEDT	24A
ROC1	DULQEDT	75A
ROC2	DULQEDT	34D
ROC3	DULQEDT	34A
ROC4	DULQEDT	05C
ROC5	DULQEDT	74A
ROC6	DULQEDT	55B
ROC7	DULQEDT	06A
ROC8	DULQEDT	06D
ROC9	DULQEDT	15B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	150	152	150	146	160	146	154	156	166	156
Vana, VanaData	142	139	141	126	159	165	132	154	145	148
CalDelData and plots	79	68	85	75	86	74	81	91	95	94
VthrCompData and plots	90	89	82	79	91	90	80	89	84	80
TestDdata ,TestD Plots	1	5	0	0	22	3	0	1	59	3
LightData ,Light Plots	8	3	1	0	22	3	0	0	63	4
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD

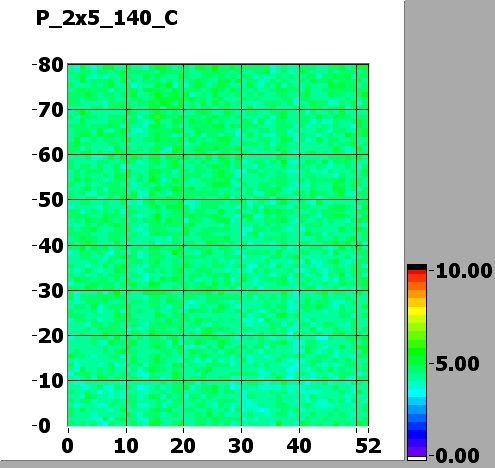

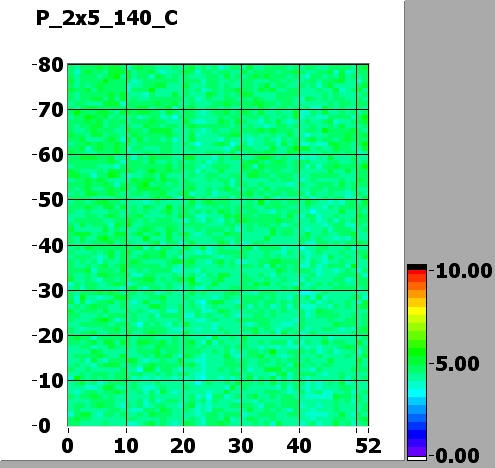

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

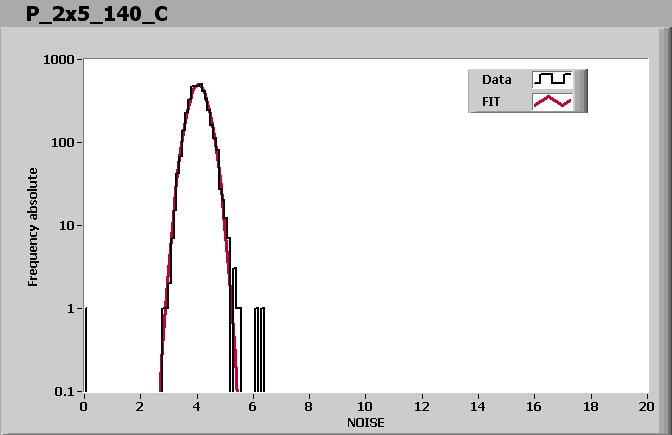

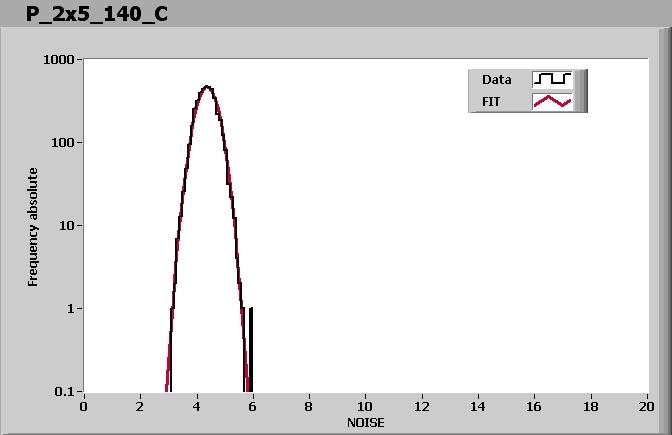

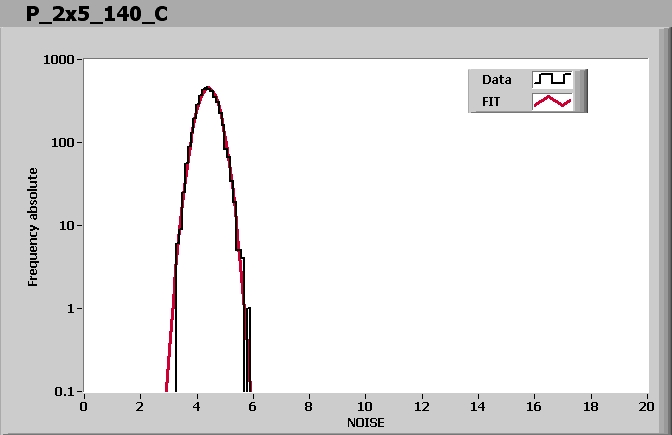

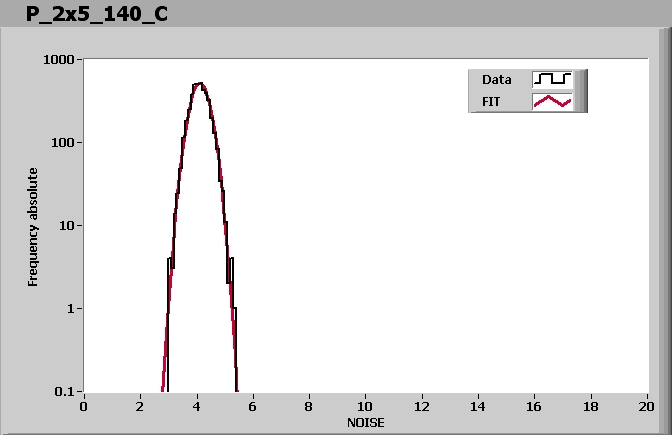

ROC0 NOISE			MEAN = 4.247205 SIGMA = 0.334188
ROC1 NOISE			MEAN = 4.405224 SIGMA = 0.364034
ROC2 NOISE			MEAN = 4.108873 SIGMA = 0.319311
ROC3 NOISE			MEAN = 4.972725 SIGMA = 0.375011
ROC4 NOISE			MEAN = 4.427205 SIGMA = 0.343560
ROC5 NOISE			MEAN = 4.619955 SIGMA = 0.372812
ROC6 NOISE			MEAN = 4.173660 SIGMA = 0.339936
ROC7 NOISE			MEAN = 4.055057 SIGMA = 0.333465
ROC8 NOISE			MEAN = 4.358295 SIGMA = 0.350516
ROC9 NOISE			MEAN = 4.190683 SIGMA = 0.328424

Comment (if any):
