![[IMAGE] of](P_2x5_136_A-0.jpg)
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_136-2x5 |
| VHDI | 2x5_709 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_DOLQC8T | 74D |
| ROC1 | W52_DOLQC8T | 74C |
| ROC2 | W52_DOLQC8T | 74B |
| ROC3 | W52_DOLQC8T | 73D |
| ROC4 | W52_DOLQC8T | 73A |
| ROC5 | W52_DOLQC8T | 42C |
| ROC6 | W52_DOLQC8T | 43A |
| ROC7 | W52_DOLQC8T | 43C |
| ROC8 | W52_DOLQC8T | 43D |
| ROC9 | W52_DOLQC8T | 44A |
Inspected by Arndt Kirk on date 11/26/2007
| Picture | Comment |
|---|---|
| Could not initially stick wirebonds to ROC1 pads. Residue seen on pads. Pads for channels 15-23 polished with rounded end of pick, then bonded. Other ROC pads wiped with dry swabs. |
Inspected by Lockwood Gale on date 11/27/2007
| LR_dev | 0.039 |
| LL_dev | 0.024 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 3 Ch 8, 2Fl 3 tries, ROC 1 Ch1,2 2FL 2 tries, ROC 0 Ch 34,35, 2FL 2 tries. No other wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/29/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 11/29/2007 by Arndt Kirk
P_2x5_136_Aon 11/30/2007 12:24 PM
P_2x5_136_A-1on 11/30/2007 1:48 PM
P_2x5_136_A-2on 11/30/2007 1:52 PM
P_2x5_136_A-2on 11/30/2007 1:52 PM
PLAQUETTE TESTED on 2007-11-30 by Gino Bolla
![[IMAGE] of](P_2x5_136_A_IV.jpg) |
|
|||

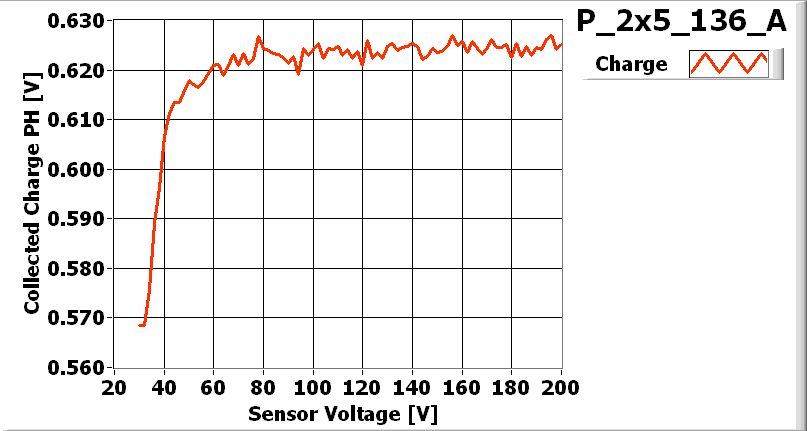

![[IMAGE] of](P_2x5_136_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 170 | 170 | 152 | 150 | 150 | 150 | 154 | 148 | 164 | 144 | |
| Vana | 157 | 141 | 130 | 143 | 130 | 151 | 142 | 140 | 164 | 143 | |
| Cal_Del | 101 | 99 | 98 | 102 | 100 | 99 | 101 | 99 | 94 | 99 | |
| Vthrs_Comp | 93 | 95 | 93 | 82 | 96 | 96 | 90 | 95 | 102 | 92 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

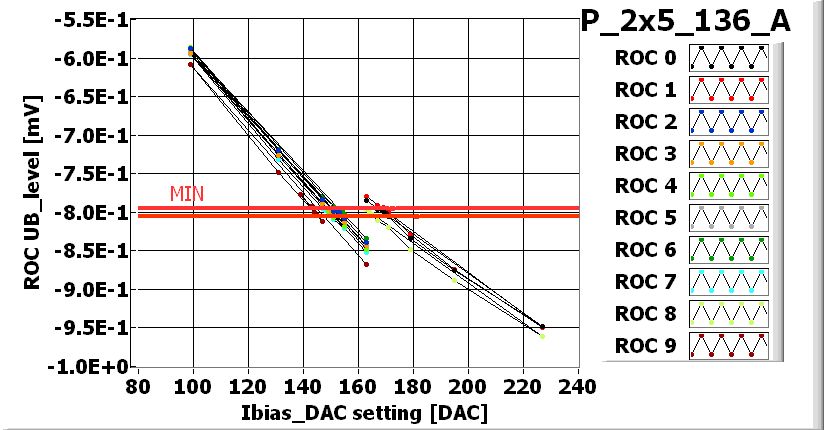

![[IMAGE] of](P_2x5_136_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

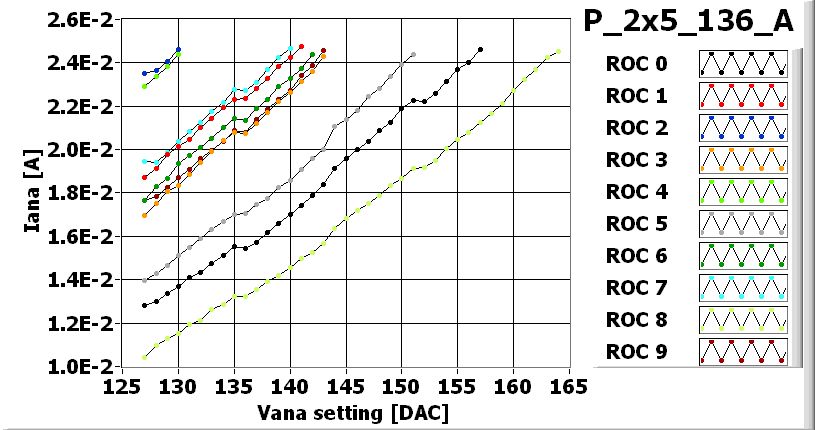

![[IMAGE] of](P_2x5_136_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_136_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_136_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_136_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_136_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 100 | 105 | 105 | 140 | 100 | 30 | 125 | 110 | 95 |
| Vsf | 155 | 140 | 145 | 145 | 140 | 155 | 145 | 155 | 165 | 145 |
| VoffsetOp | 140 | 115 | 110 | 105 | 80 | 105 | 115 | 110 | 130 | 90 |
| VIbias_PH | 105 | 105 | 100 | 100 | 95 | 95 | 95 | 85 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_136_A-2-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_136_A-2-580-efficiency.jpg)

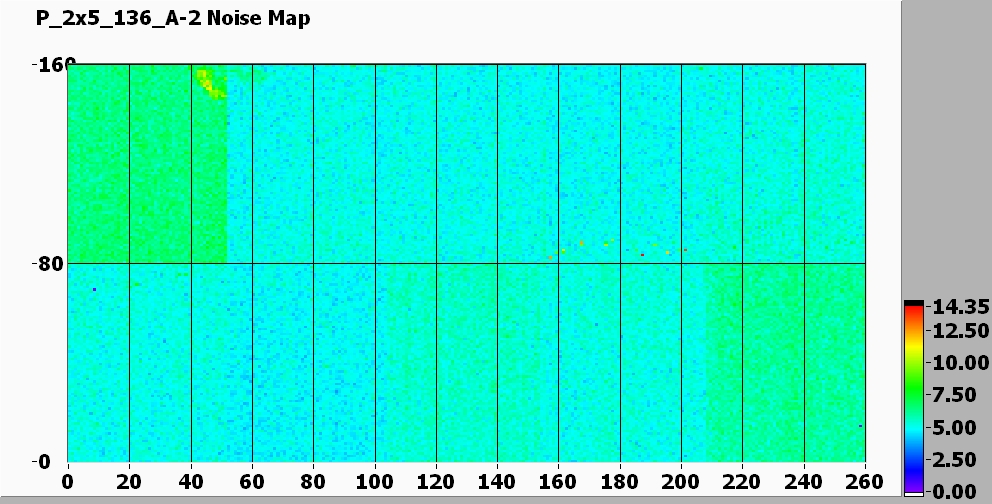

Noise MAP at -200 V
![[IMAGE] of](P_2x5_136_A-2-200-noise.jpg)

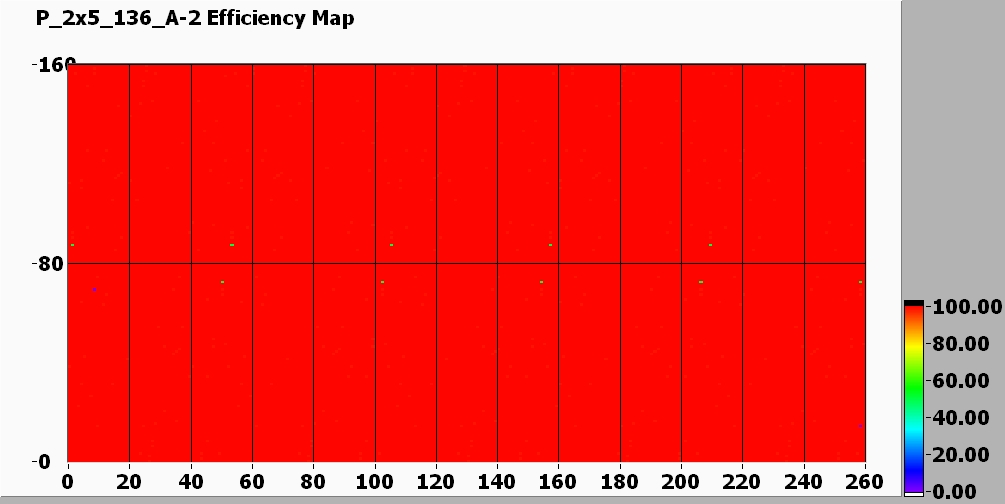

Efficiency MAP
![[IMAGE] of](P_2x5_136_A-2-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
