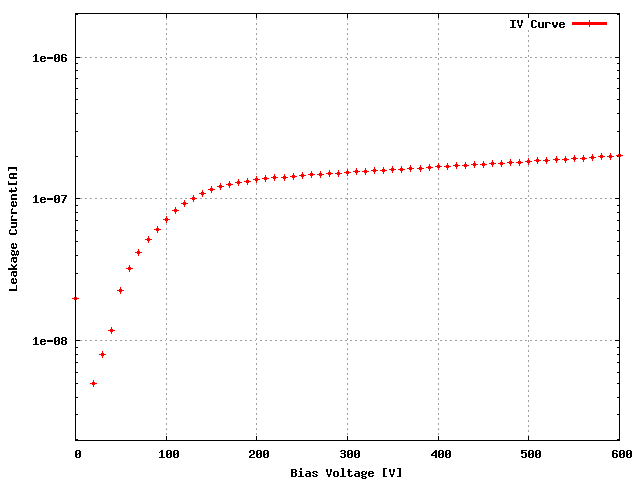

Sensor: S_2x5_136, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	74D
ROC1	W52_DOLQC8T	74C
ROC2	W52_DOLQC8T	74B
ROC3	W52_DOLQC8T	73D
ROC4	W52_DOLQC8T	73A
ROC5	W52_DOLQC8T	42C
ROC6	W52_DOLQC8T	43A
ROC7	W52_DOLQC8T	43C
ROC8	W52_DOLQC8T	43D
ROC9	W52_DOLQC8T	44A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	170	170	152	150	150	150	154	148	164	144
Vana, VanaData	157	141	130	143	130	151	142	140	164	143
CalDelData and plots	101	99	98	102	100	99	101	99	94	99
VthrCompData and plots	93	95	93	82	96	96	90	95	102	92
TestDdata ,TestD Plots	3	0	0	0	1	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

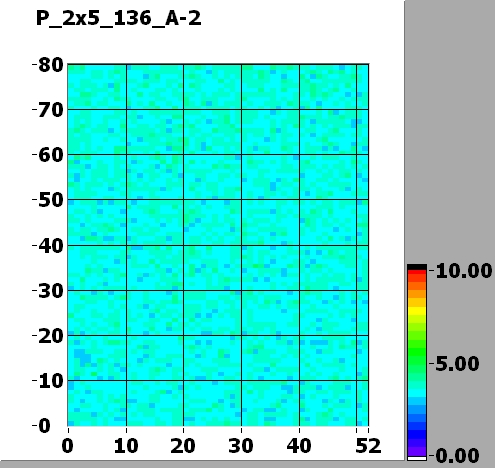

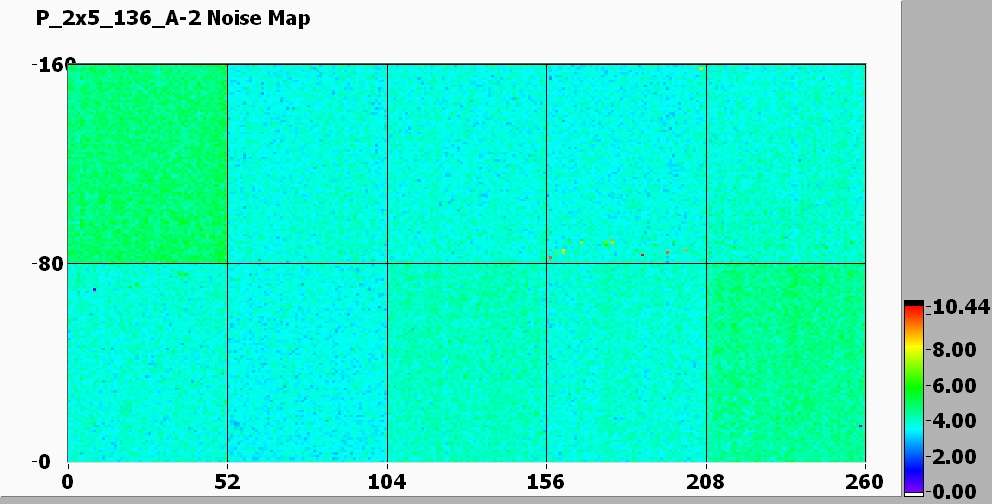

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.690581 SIGMA = 0.293270

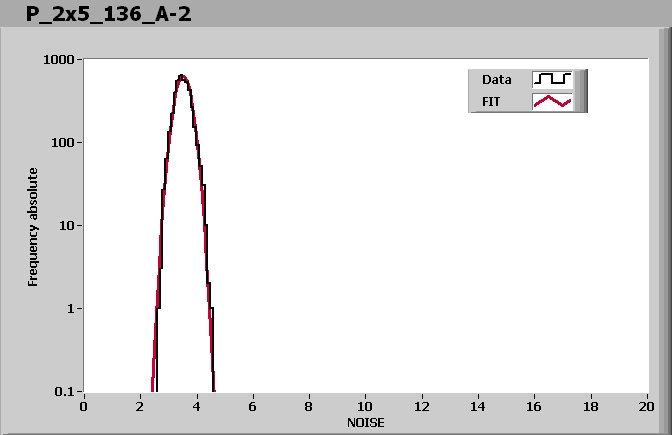

ROC1 NOISE			MEAN = 3.505356 SIGMA = 0.262440
ROC2 NOISE			MEAN = 3.917288 SIGMA = 0.293597
ROC3 NOISE			MEAN = 3.733989 SIGMA = 0.277650
ROC4 NOISE			MEAN = 4.348521 SIGMA = 0.339022

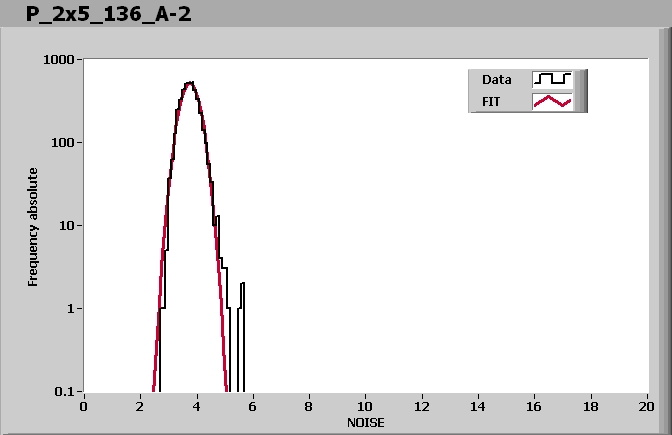

ROC5 NOISE			MEAN = 3.750744 SIGMA = 0.313160

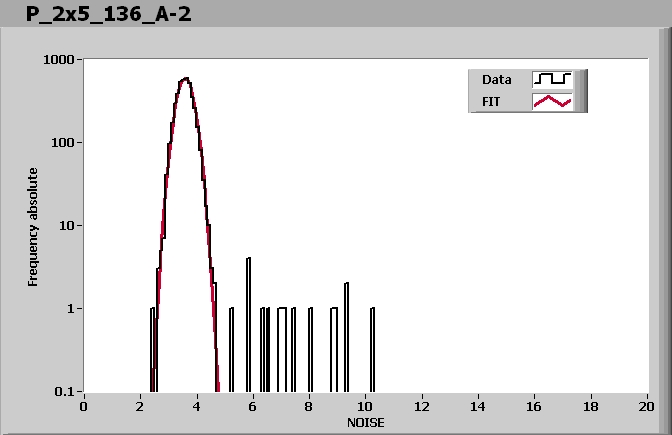

ROC6 NOISE			MEAN = 3.586533 SIGMA = 0.279264

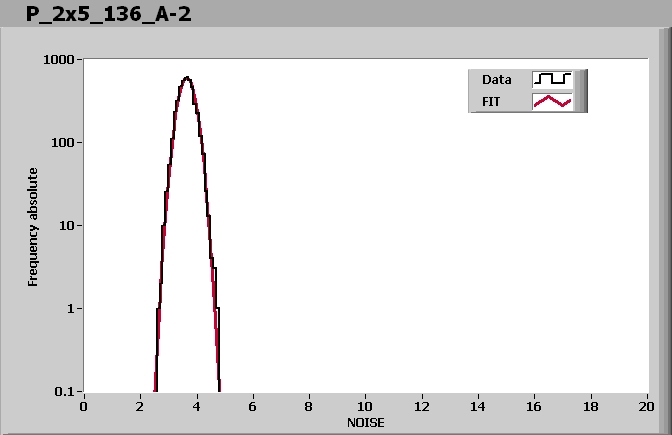

ROC7 NOISE			MEAN = 3.643917 SIGMA = 0.274537

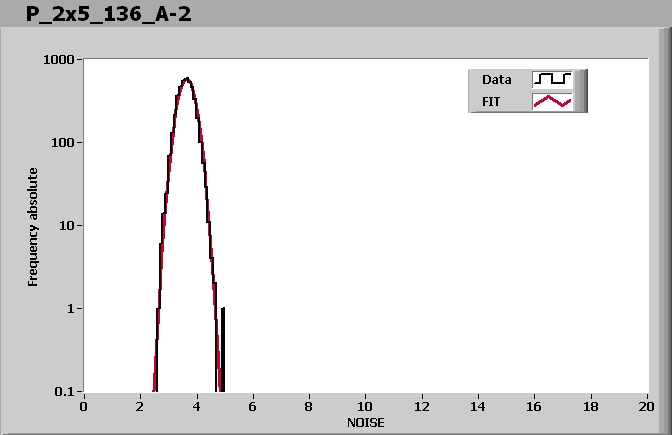

ROC8 NOISE			MEAN = 3.638013 SIGMA = 0.281505

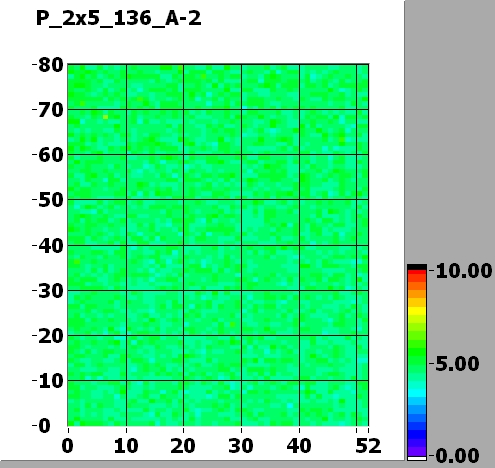

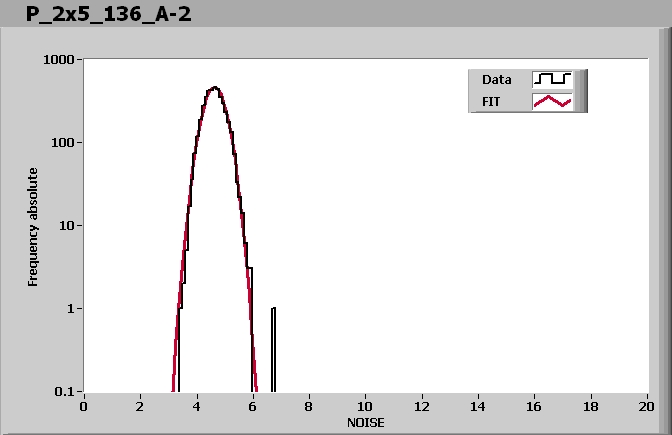

ROC9 NOISE			MEAN = 4.623502 SIGMA = 0.362810

Comment (if any):

P_2x5_136_A-1.html,

P_2x5_136_A.html,

End testing time: 2:23 PM
