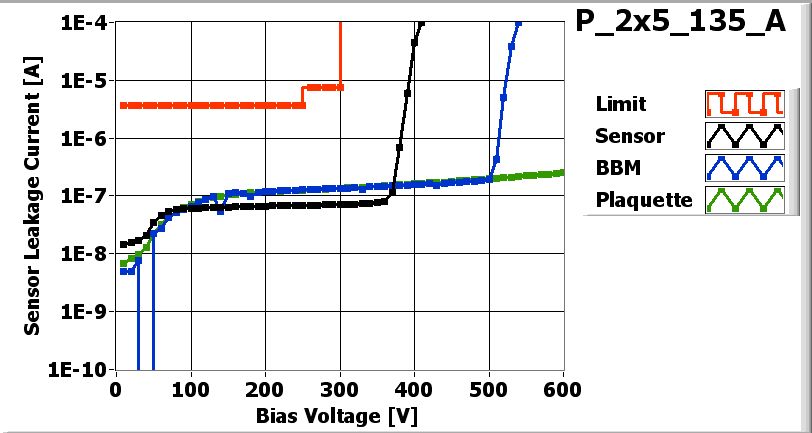

![[IMAGE] of](P_2x5_135_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

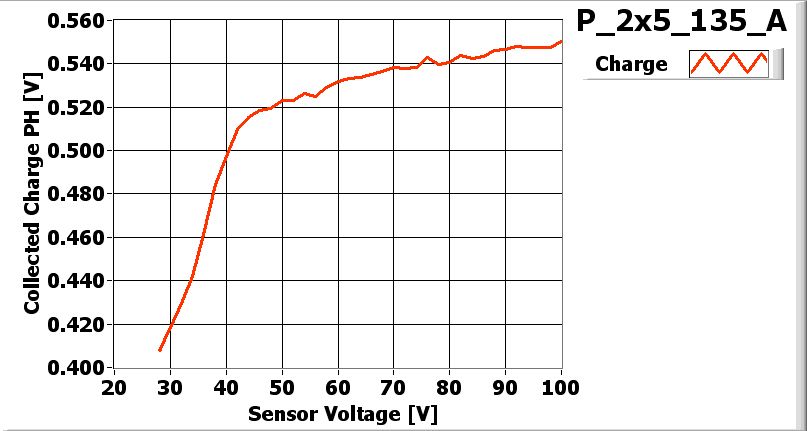

![[IMAGE] of](P_2x5_135_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 3/21/2007
| Part | ID |
|---|---|
| BBM | BBM_135-2x5 |
| VHDI | 2x5_399 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 30C |
| ROC1 | W36_XD4K3LT | 30B |
| ROC2 | W36_XD4K3LT | 30A |
| ROC3 | W36_XD4K3LT | 49D |
| ROC4 | W36_XD4K3LT | 49C |
| ROC5 | W36_XD4K3LT | 64D |
| ROC6 | W36_XD4K3LT | 68A |
| ROC7 | W36_XD4K3LT | 61B |
| ROC8 | W36_XD4K3LT | 51A |
| ROC9 | W36_XD4K3LT | 73D |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.026 |
| LL_dev | 0.029 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 0 chn 34,33,32,31 2 attempts, all okay |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_2x5_135_Aon 4/2/2007 12:43 PM
P_2x5_135_Aon 4/2/2007 12:43 PM
PLAQUETTE TESTED on 2007-04-02 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 150 | 140 | 134 | 144 | 158 | 138 | 138 | 140 | 132 | 138 | |
| Vana | 130 | 131 | 135 | 127 | 141 | 122 | 128 | 128 | 122 | 135 | |
| Cal_Del | 87 | 81 | 77 | 85 | 85 | 87 | 90 | 75 | 86 | 81 | |
| Vthrs_Comp | 73 | 78 | 80 | 71 | 80 | 81 | 69 | 74 | 75 | 71 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

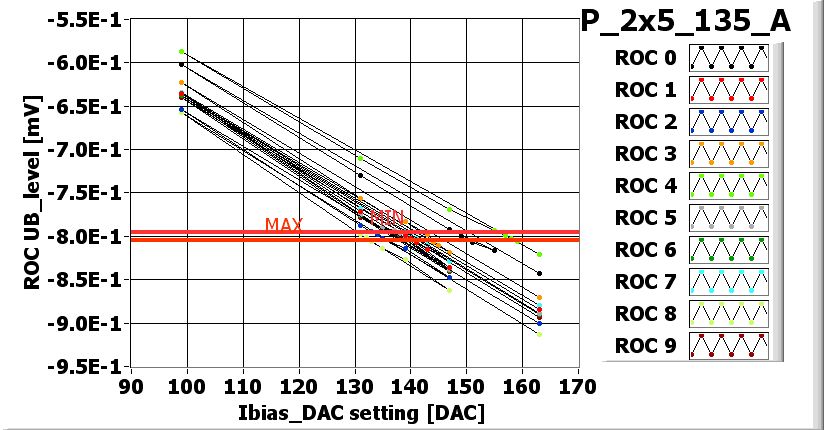

![[IMAGE] of](P_2x5_135_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

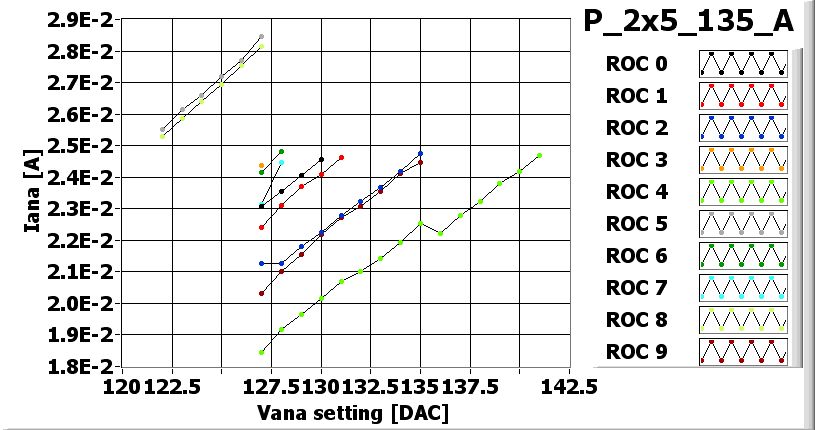

![[IMAGE] of](P_2x5_135_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_135_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_135_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_135_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_135_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 135 | 130 | 85 | 130 | 105 | 135 | 115 | 120 | 135 | 105 |
| Vsf | 140 | 140 | 135 | 140 | 140 | 140 | 140 | 140 | 135 | 140 |
| VoffsetOp | 80 | 70 | 95 | 80 | 125 | 65 | 85 | 85 | 85 | 75 |
| VIbias_PH | 95 | 100 | 100 | 105 | 100 | 105 | 95 | 100 | 100 | 105 |

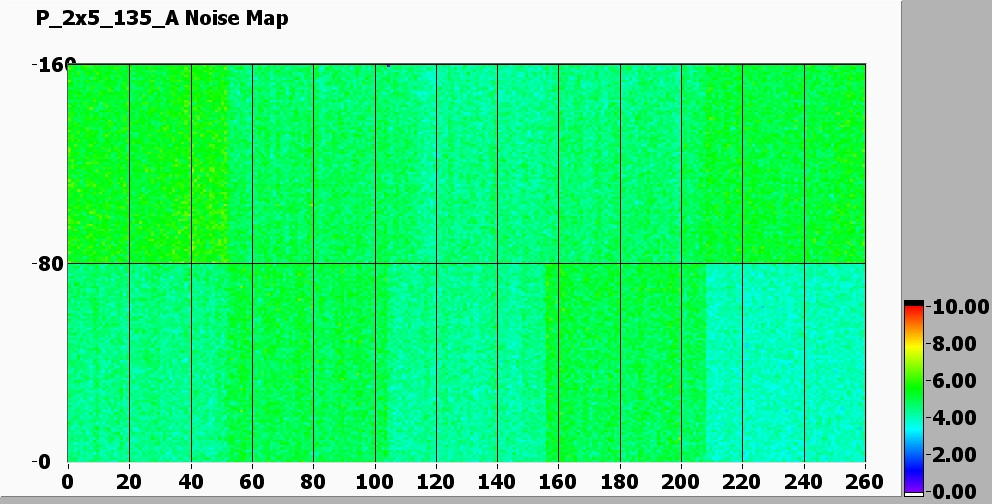

Noise MAP
![[IMAGE] of](P_2x5_135_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_135_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
