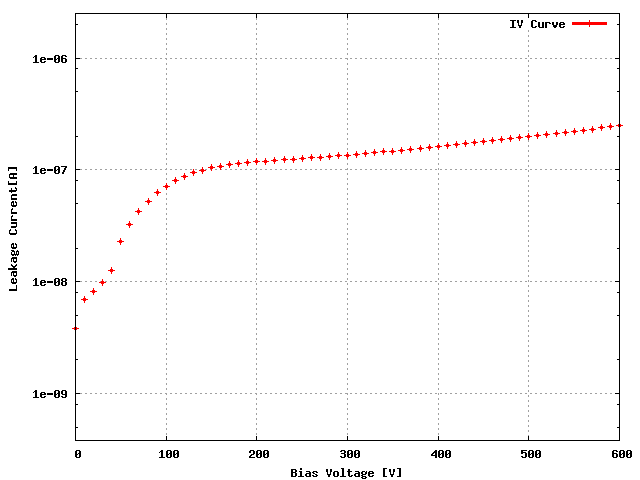

Sensor: S_2x5_135, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	30C
ROC1	W36_XD4K3LT	30B
ROC2	W36_XD4K3LT	30A
ROC3	W36_XD4K3LT	49D
ROC4	W36_XD4K3LT	49C
ROC5	W36_XD4K3LT	64D
ROC6	W36_XD4K3LT	68A
ROC7	W36_XD4K3LT	61B
ROC8	W36_XD4K3LT	51A
ROC9	W36_XD4K3LT	73D

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	150	140	134	144	158	138	138	140	132	138
Vana, VanaData	130	131	135	127	141	122	128	128	122	135
CalDelData and plots	87	81	77	85	85	87	90	75	86	81
VthrCompData and plots	73	78	80	71	80	81	69	74	75	71
TestDdata ,TestD Plots	1	0	0	0	0	1	20	25	10	1
LightData ,Light Plots	1	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.423453 SIGMA = 0.351913

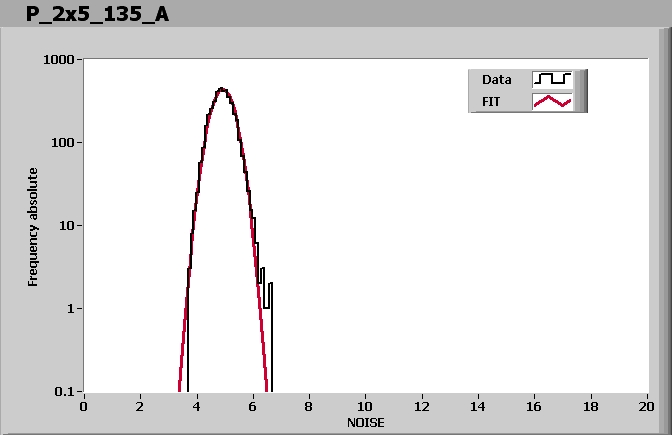

ROC1 NOISE			MEAN = 4.918151 SIGMA = 0.377337
ROC2 NOISE			MEAN = 4.279056 SIGMA = 0.349735
ROC3 NOISE			MEAN = 4.912188 SIGMA = 0.394745
ROC4 NOISE			MEAN = 3.911950 SIGMA = 0.298062
ROC5 NOISE			MEAN = 5.104916 SIGMA = 0.400177

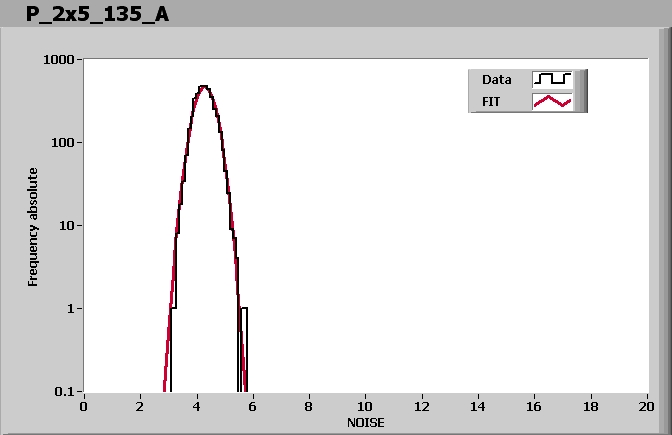

ROC6 NOISE			MEAN = 4.592138 SIGMA = 0.388416
ROC7 NOISE			MEAN = 4.408517 SIGMA = 0.381239
ROC8 NOISE			MEAN = 4.750904 SIGMA = 0.377202

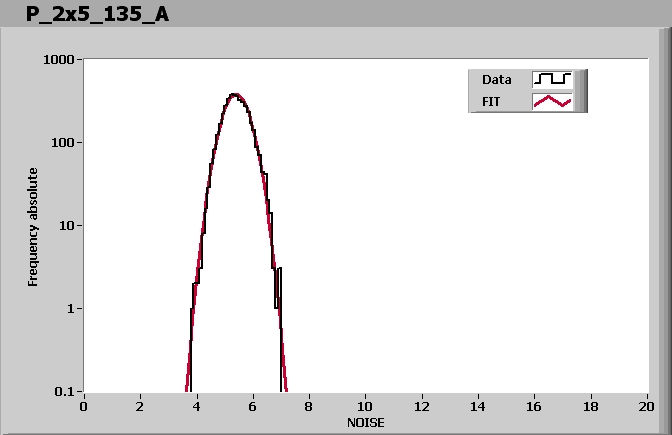

ROC9 NOISE			MEAN = 5.395884 SIGMA = 0.438603

Comment (if any): Good

End testing time: 1:04 PM
