P_2x5_125

P_2x5_125_C

Parts committed by Bolla Gino on date 5/22/2007

Part	ID
BBM	BBM_125-2x5
VHDI	2x5_611

ROC ROC wafer Label

ROC0 KMNG2DT 28B

ROC1 KMNG2DT 38D

ROC2 KMNG2DT 67D

ROC3 KMNG2DT 28C

ROC4 KMNG2DT 26C

ROC5 KMNG2DT 36D

ROC6 KMNG2DT 36C

ROC7 KMNG2DT 36A

ROC8 KMNG2DT 36B

ROC9 KMNG2DT 38B

ROC	ROC wafer	Label
ROC0	KMNG2DT	28B
ROC1	KMNG2DT	38D
ROC2	KMNG2DT	67D
ROC3	KMNG2DT	28C
ROC4	KMNG2DT	26C
ROC5	KMNG2DT	36D
ROC6	KMNG2DT	36C
ROC7	KMNG2DT	36A
ROC8	KMNG2DT	36B
ROC9	KMNG2DT	38B

Inspected by Lockwood Gale on date 6/7/2007

LR_dev 0.035

LL_dev 0.033

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 6/7/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/7/2007 by Kozak Brian

PLAQUETTE made READY for testing on 6/7/2007 by Kozak Brian

P_2x5_125_Con 6/8/2007 9:12 AM

PLAQUETTE TESTED on 2007-06-08 by Emily Grace

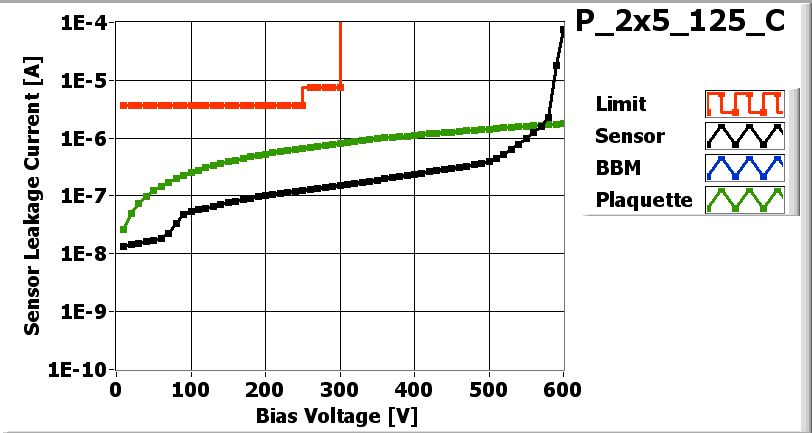

IV_XML-File

Maximum Voltage 600 V

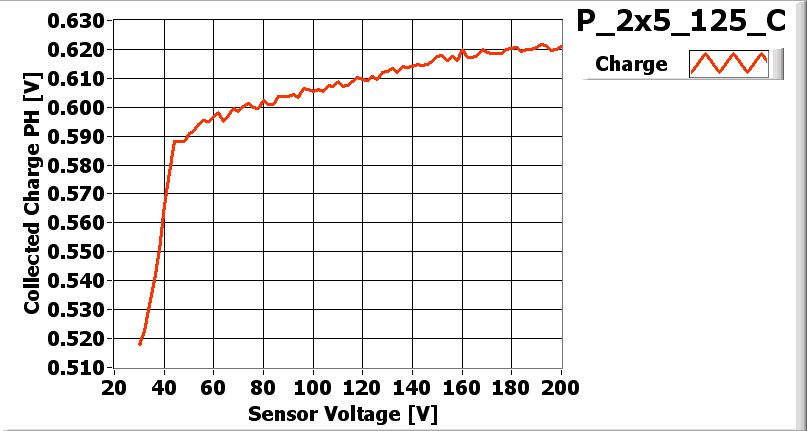

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

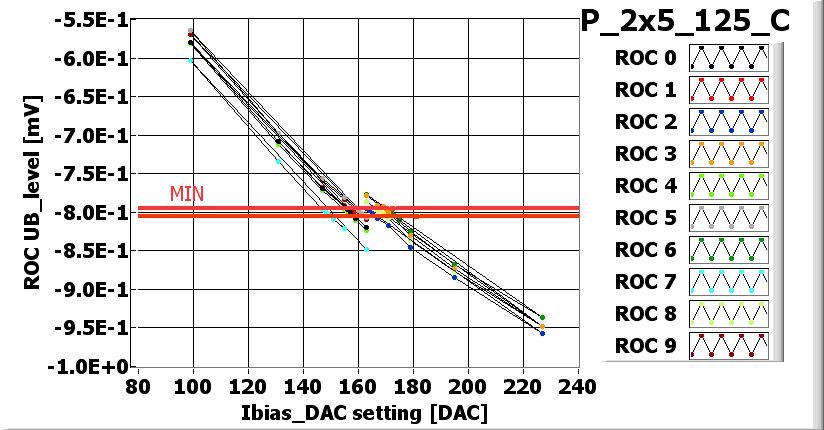

Ibias_DAC	156	158	164	170	156	160	172	148	168	160

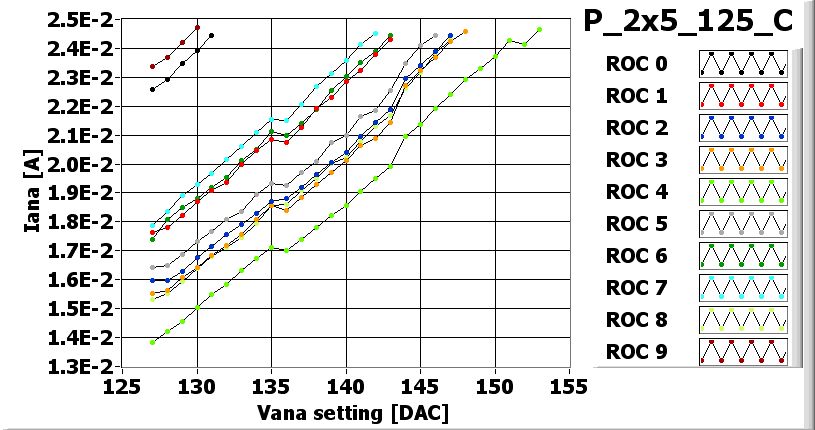

Vana	131	143	147	148	153	146	143	142	147	130
Cal_Del	72	76	71	67	59	68	66	63	71	73
Vthrs_Comp	75	82	86	87	89	85	86	91	83	74
Unbumped	0	0	1	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	1	0	0	0	0	0	0	0	0
Total BAD	0	1	1	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	115	90	90	95	95	95	90	100	95	110
Vsf	135	140	150	145	155	145	145	140	145	140
VoffsetOp	85	95	100	90	105	95	120	95	80	100
VIbias_PH	100	100	100	105	100	100	100	105	100	95

Noise MAP at VMAX

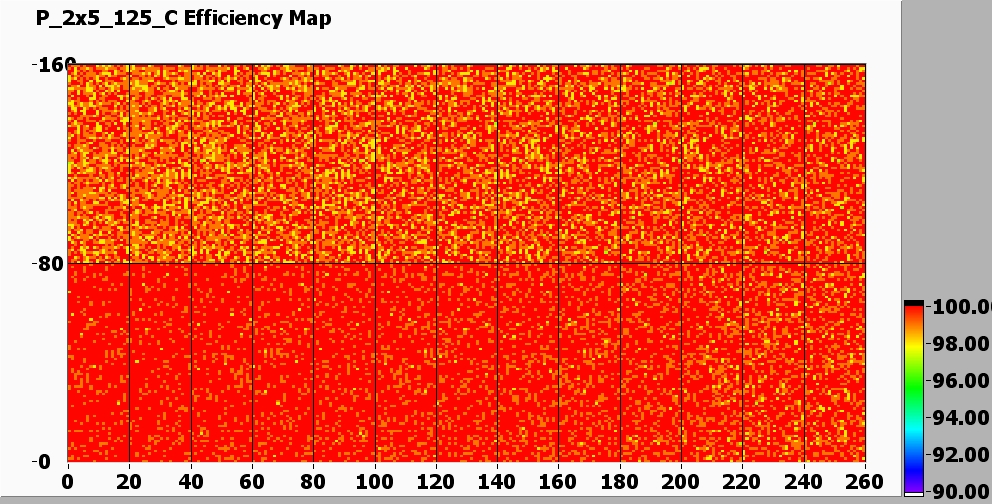

Efficiency MAP

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-11

Plaquette assigned to panel P3R_060
