P_2x5_125

P_2x5_125_C

Production testing

Date:6/8/2007

Operator: Emily Grace

start testing time:9:12 AM

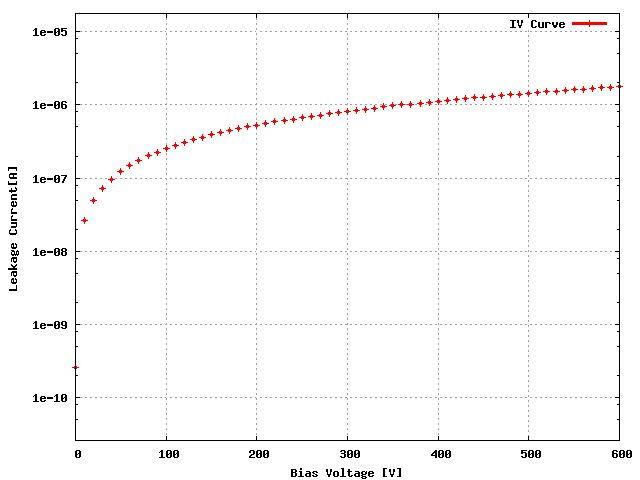

Sensor: S_2x5_125, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KMNG2DT 28B

ROC1 KMNG2DT 38D

ROC2 KMNG2DT 67D

ROC3 KMNG2DT 28C

ROC4 KMNG2DT 26C

ROC5 KMNG2DT 36D

ROC6 KMNG2DT 36C

ROC7 KMNG2DT 36A

ROC8 KMNG2DT 36B

ROC9 KMNG2DT 38B

ROC	ROC wafer	Label
ROC0	KMNG2DT	28B
ROC1	KMNG2DT	38D
ROC2	KMNG2DT	67D
ROC3	KMNG2DT	28C
ROC4	KMNG2DT	26C
ROC5	KMNG2DT	36D
ROC6	KMNG2DT	36C
ROC7	KMNG2DT	36A
ROC8	KMNG2DT	36B
ROC9	KMNG2DT	38B

Inspected by Lockwood Gale on date 6/7/2007

LR_dev 0.035

LL_dev 0.033

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 6/7/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/7/2007 by Kozak Brian

PLAQUETTE made READY for testing on 6/7/2007 by Kozak Brian

P_2x5_125_Con 6/8/2007 9:12 AM

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	156	158	164	170	156	160	172	148	168	160
Vana, VanaData	131	143	147	148	153	146	143	142	147	130
CalDelData and plots	72	76	71	67	59	68	66	63	71	73
VthrCompData and plots	75	82	86	87	89	85	86	91	83	74
TestDdata ,TestD Plots	0	1	1	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	1	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

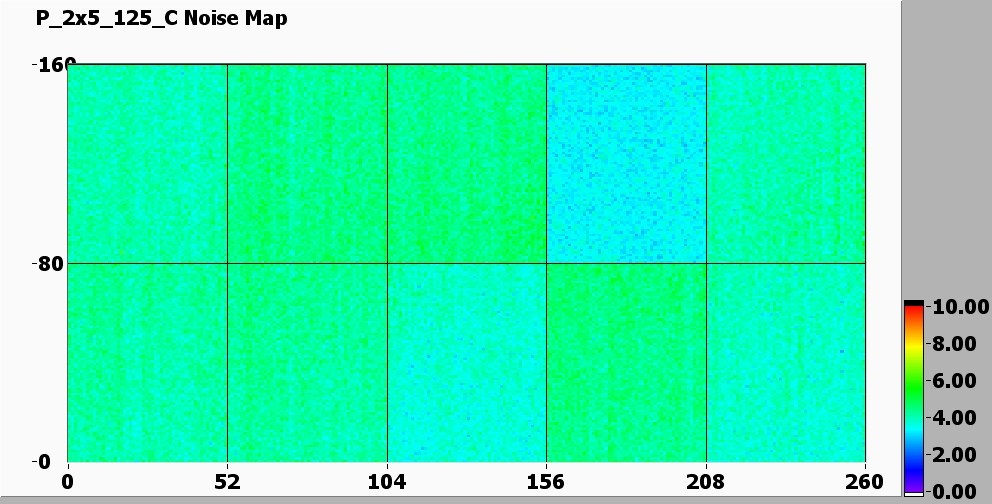

Noise MAP at VMAX

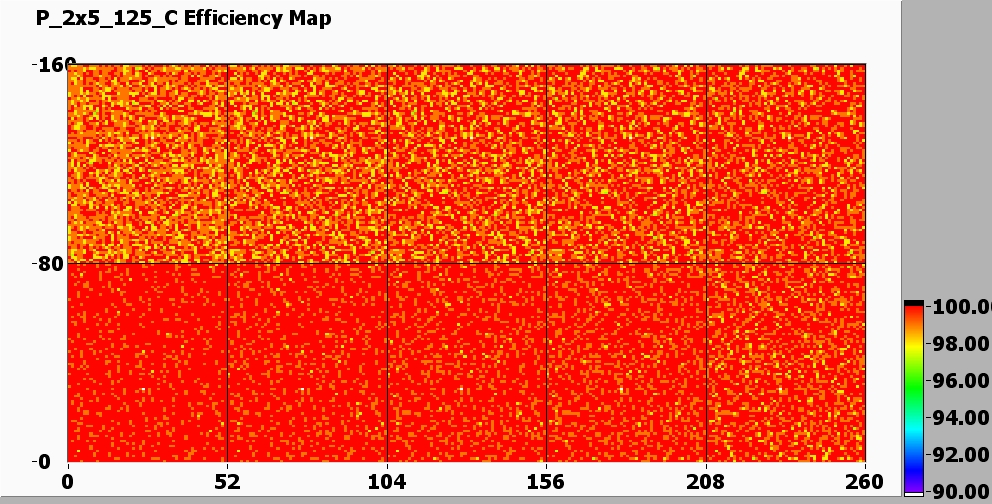

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	90	90	95	95	95	90	100	95	110
Vsf	135	140	150	145	155	145	145	140	145	140
VoffsetOp	85	95	100	90	105	95	120	95	80	100
VIbias_PH	100	100	100	105	100	100	100	105	100	95

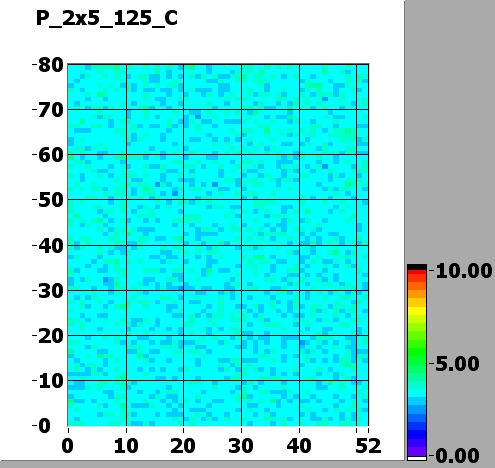

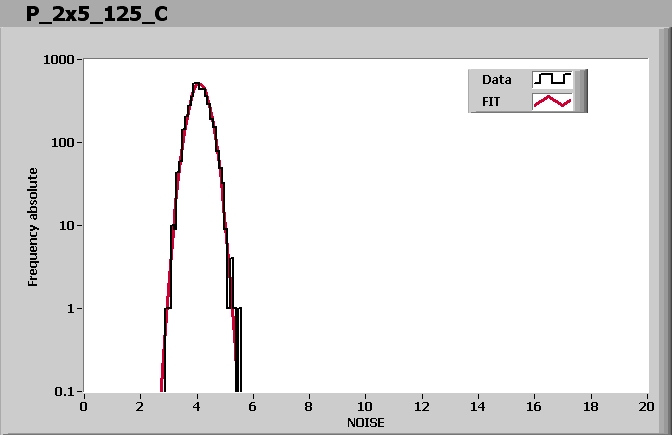

ROC0 NOISE			MEAN = 4.091622 SIGMA = 0.327567
ROC1 NOISE			MEAN = 4.163667 SIGMA = 0.331492

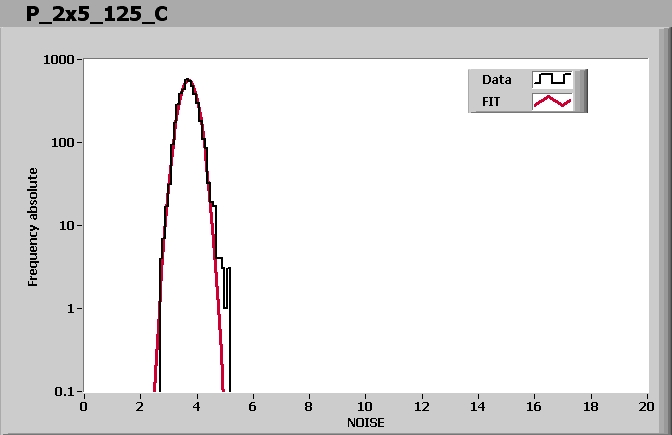

ROC2 NOISE			MEAN = 3.706066 SIGMA = 0.294365

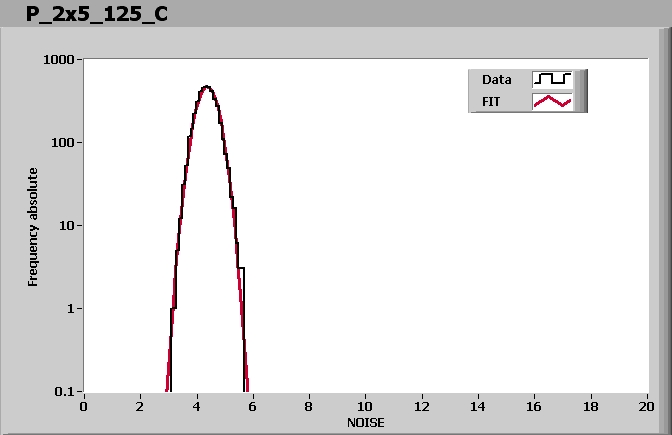

ROC3 NOISE			MEAN = 4.363382 SIGMA = 0.348572
ROC4 NOISE			MEAN = 3.821955 SIGMA = 0.308224

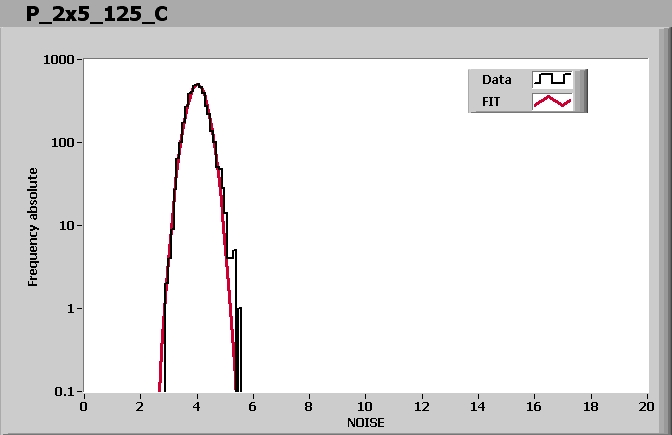

ROC5 NOISE			MEAN = 4.017533 SIGMA = 0.330293

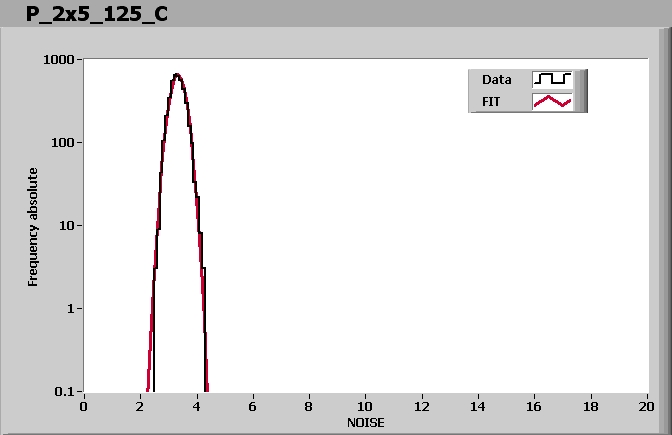

ROC6 NOISE			MEAN = 3.320608 SIGMA = 0.252678
ROC7 NOISE			MEAN = 4.358983 SIGMA = 0.340099
ROC8 NOISE			MEAN = 4.333054 SIGMA = 0.345414
ROC9 NOISE			MEAN = 4.001308 SIGMA = 0.313616

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 9:42 AM
