![[IMAGE] of](P_2x5_123_A_IV.jpg)

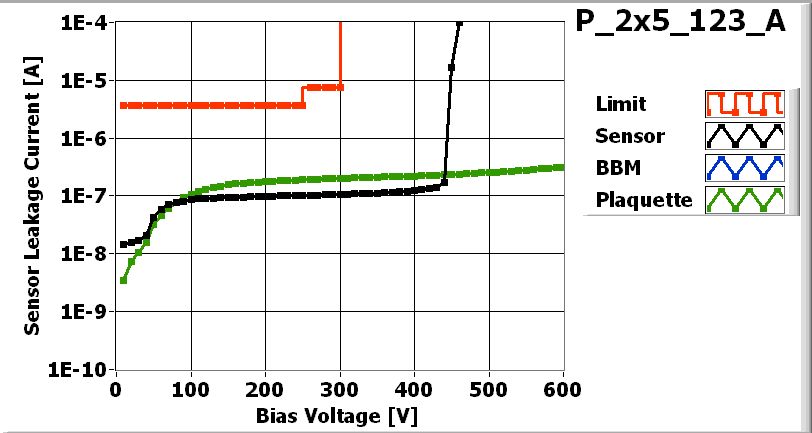

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_123_A_LASER.jpg)

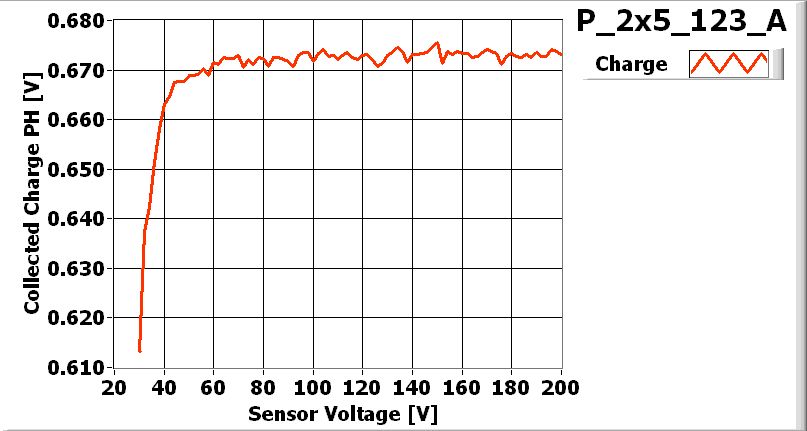

| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_123-2x5 |
| VHDI | 2x5_715 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W47_DXLQF5T | 11C |
| ROC1 | W47_DXLQF5T | 29C |
| ROC2 | W47_DXLQF5T | 29A |
| ROC3 | W55_D3LQE4T | 06D |
| ROC4 | W47_DXLQF5T | 28C |
| ROC5 | W55_D3LQE4T | 62A |
| ROC6 | W55_D3LQE4T | 62B |
| ROC7 | W55_D3LQE4T | 62D |
| ROC8 | W55_D3LQE4T | 63A |
| ROC9 | W55_D3LQE4T | 63B |
Inspected by Lockwood Gale on date 11/21/2007
| LR_dev | 0.072 |
| LL_dev | 0.058 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 0 Ch1 2Fl 2tries, ROC 8 Ch1 2Fl 3 tries, ROC 6 Ch34,33 2FL. No other wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/21/2007 by Ozhan Koybasi
P_2x5_123_Aon 11/26/2007 6:10 PM
P_2x5_123_Aon 11/26/2007 6:10 PM
PLAQUETTE TESTED on 2007-11-26 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 172 | 158 | 164 | 154 | 160 | 160 | 156 | 154 | 160 | 144 | |
| Vana | 144 | 127 | 139 | 130 | 139 | 145 | 147 | 138 | 134 | 135 | |
| Cal_Del | 79 | 94 | 74 | 105 | 81 | 83 | 82 | 96 | 76 | 98 | |
| Vthrs_Comp | 88 | 73 | 82 | 74 | 92 | 90 | 87 | 85 | 91 | 90 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_123_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_123_A_Vana.jpg) |

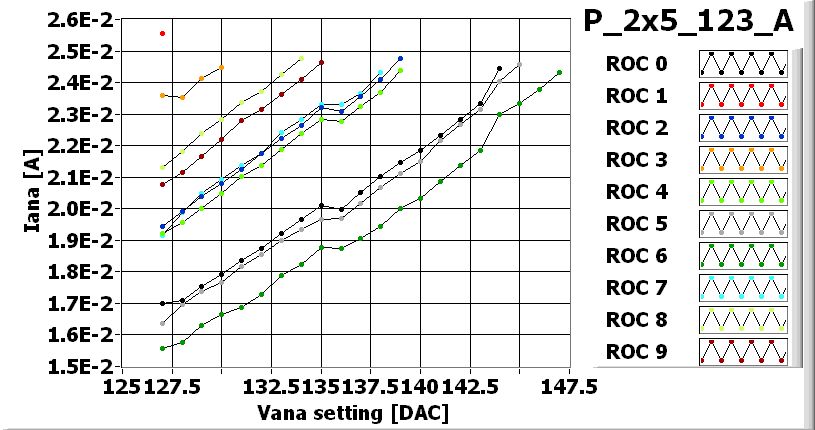

VANA_XML-File |
![[IMAGE] of](P_2x5_123_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_123_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_123_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_123_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 105 | 105 | 120 | 105 | 100 | 95 | 95 | 105 | 120 |
| Vsf | 150 | 140 | 140 | 140 | 140 | 145 | 150 | 140 | 140 | 140 |
| VoffsetOp | 115 | 105 | 135 | 90 | 115 | 100 | 115 | 90 | 100 | 85 |
| VIbias_PH | 95 | 100 | 100 | 105 | 100 | 95 | 95 | 105 | 95 | 95 |

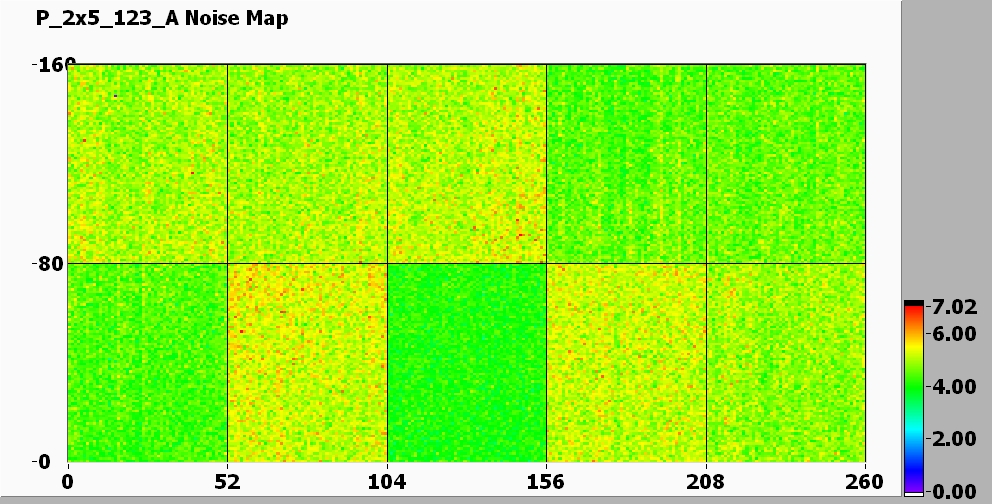

Noise MAP at VMAX
![[IMAGE] of](P_2x5_123_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_123_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x5_123_A-200-noise.jpg)

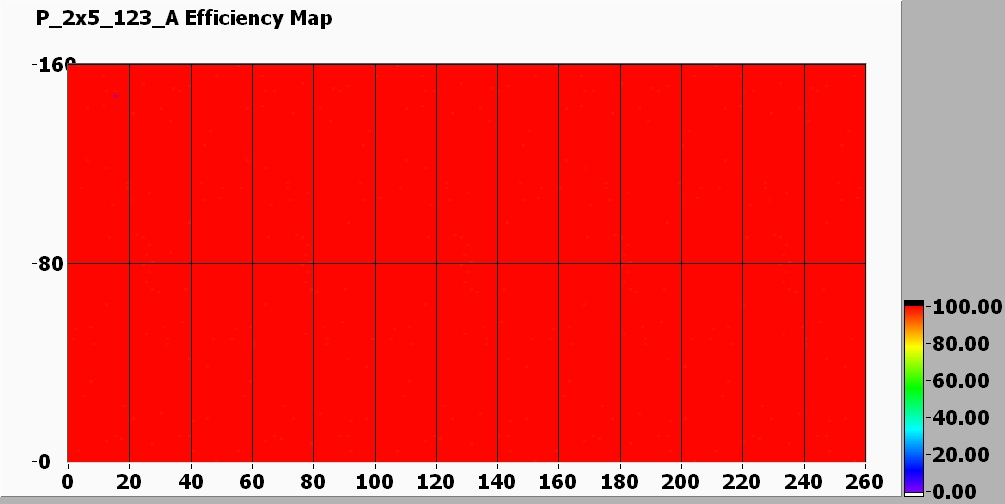

Efficiency MAP
![[IMAGE] of](P_2x5_123_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
