P_2x5_122

P_2x5_122_C

Parts committed by Bolla Gino on date 5/22/2007

Part	ID
BBM	BBM_122-2x5
VHDI	2x5_612

ROC ROC wafer Label

ROC0 KMNG2DT 24A

ROC1 KMNG2DT 64B

ROC2 KMNG2DT 74C

ROC3 KMNG2DT 05D

ROC4 KMNG2DT 05B

ROC5 KMNG2DT 63B

ROC6 KMNG2DT 03A

ROC7 KMNG2DT 73A

ROC8 KMNG2DT 73D

ROC9 KMNG2DT 73C

ROC	ROC wafer	Label
ROC0	KMNG2DT	24A
ROC1	KMNG2DT	64B
ROC2	KMNG2DT	74C
ROC3	KMNG2DT	05D
ROC4	KMNG2DT	05B
ROC5	KMNG2DT	63B
ROC6	KMNG2DT	03A
ROC7	KMNG2DT	73A
ROC8	KMNG2DT	73D
ROC9	KMNG2DT	73C

Inspected by Lockwood Gale on date 5/29/2007

LR_dev 0.065

LL_dev 0.070

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. ROC 1, Ch 1, ROC 8, Ch 35, No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 5/29/2007 by Lockwood Gale

PLAQUETTE encapsulated on 5/29/2007 by Perera Rajiv

PLAQUETTE made READY for testing on 5/29/2007 by Perera Rajiv

P_2x5_122_Con 5/30/2007 11:02 AM

PLAQUETTE TESTED on 2007-05-30 by Emily Grace

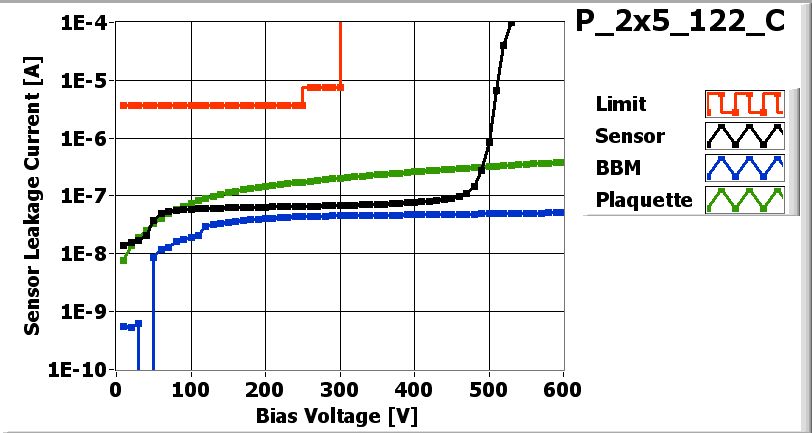

IV_XML-File

Maximum Voltage 600 V

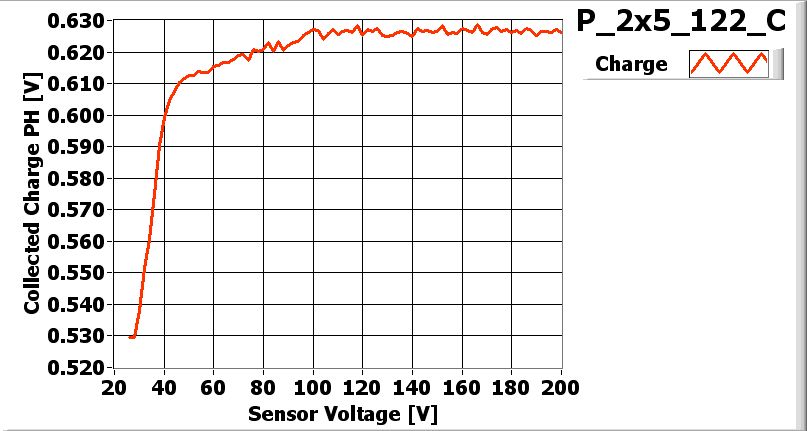

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	172	170	154	186	170	154	160	144	152	164
Vana	139	138	132	140	138	127	127	137	127	137
Cal_Del	68	74	85	77	75	92	77	92	78	82
Vthrs_Comp	88	85	76	86	80	74	86	83	83	82
Unbumped	0	2	1	1	2	0	1	775	3	55
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	2	1	1	2	0	1	775	3	55

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

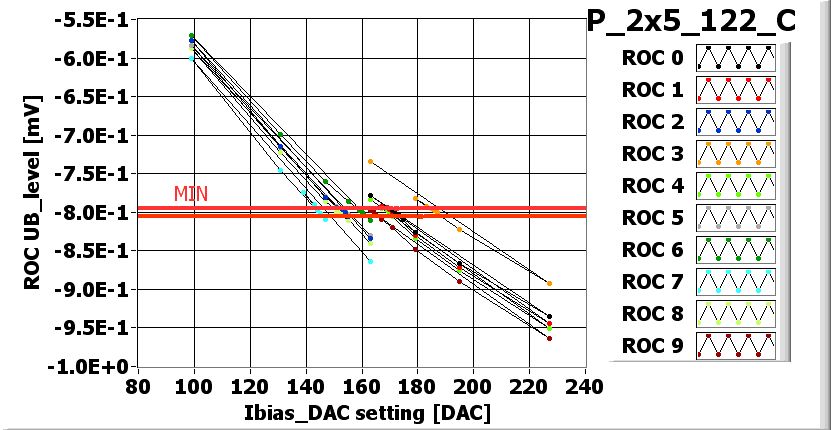

	I_BIAS_DAC_XML-File

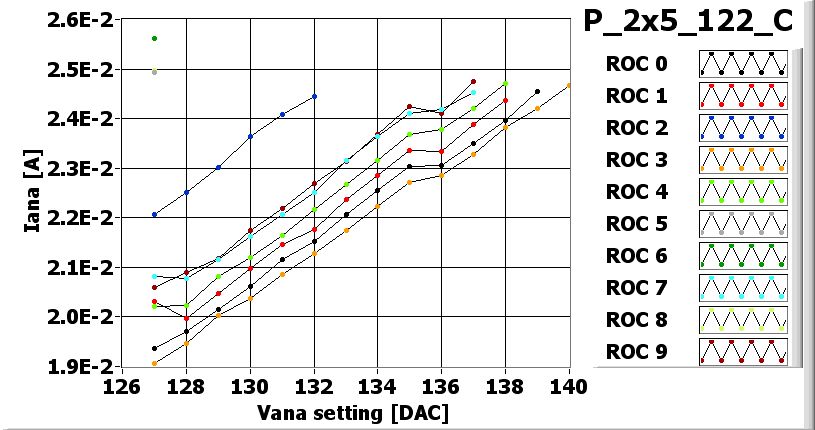

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

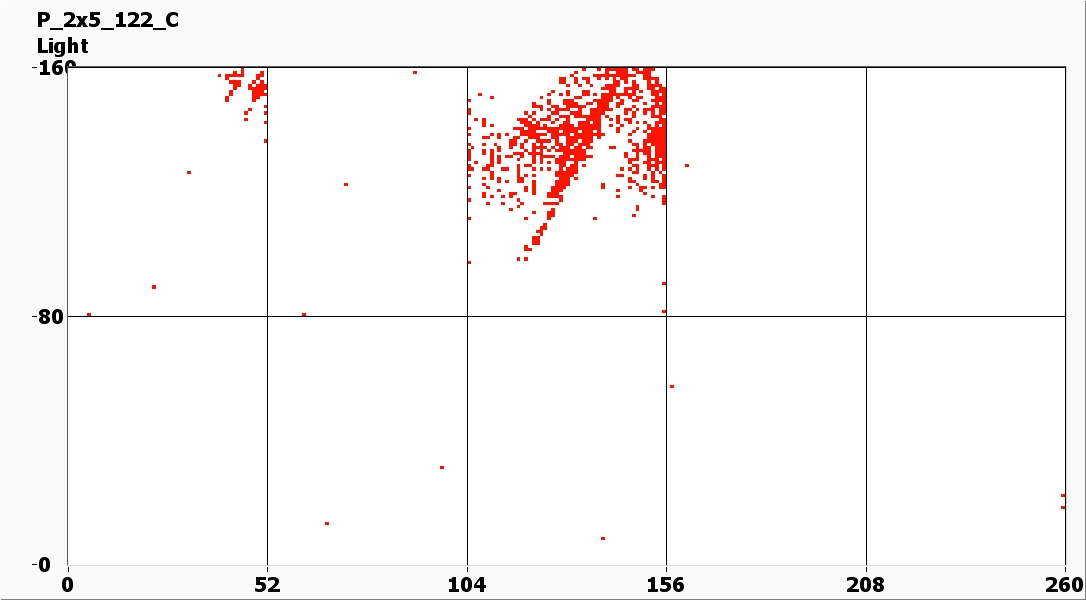

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	95	115	105	105	95	105	110	135	120	105
Vsf	140	140	140	140	145	140	135	140	135	140
VoffsetOp	110	95	80	115	110	85	90	65	70	105
VIbias_PH	100	95	95	100	100	95	100	105	100	100

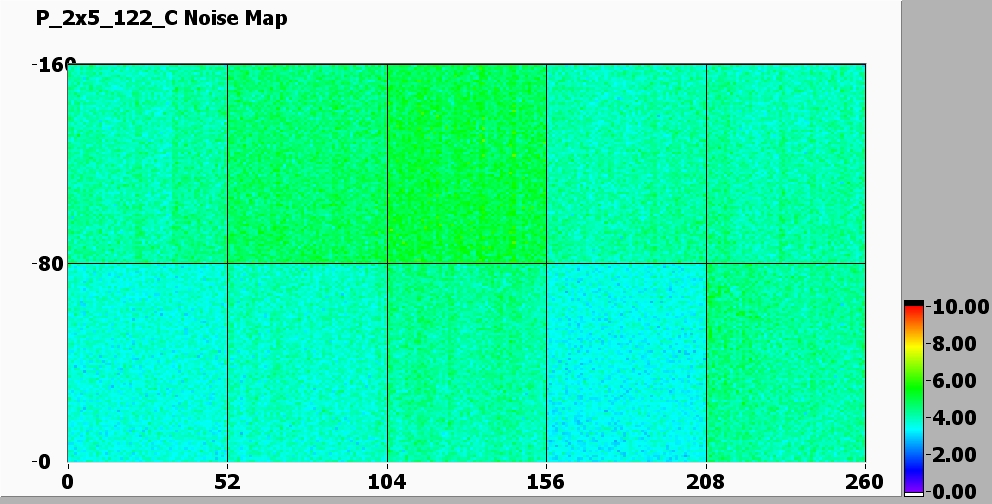

Noise MAP at VMAX

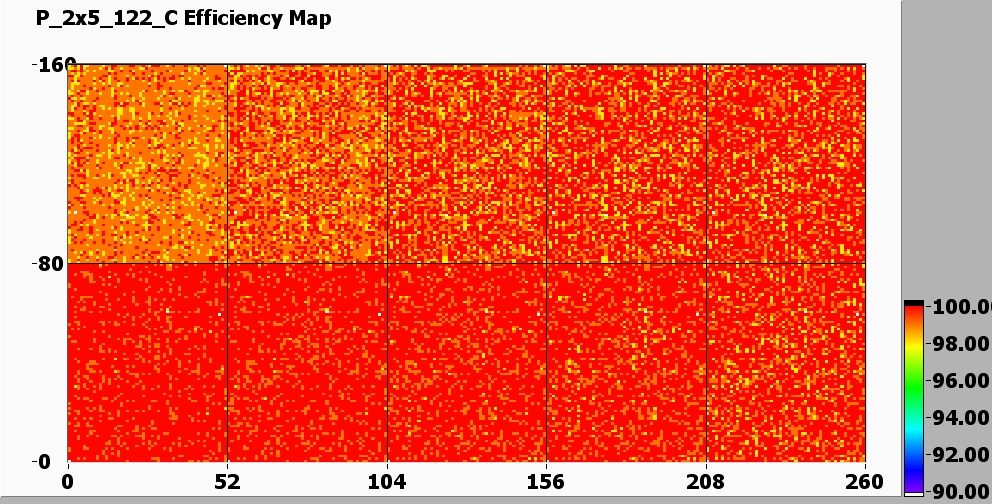

Efficiency MAP

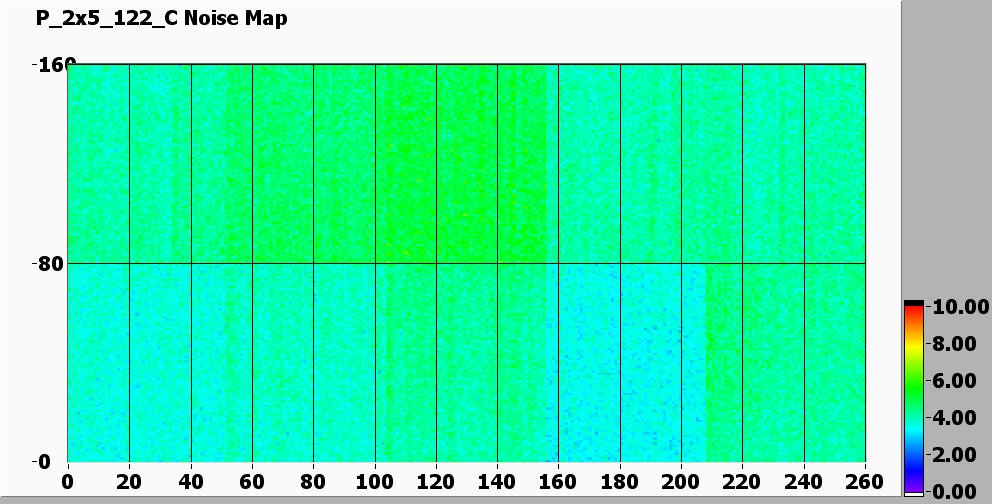

Noise MAP at -200 V

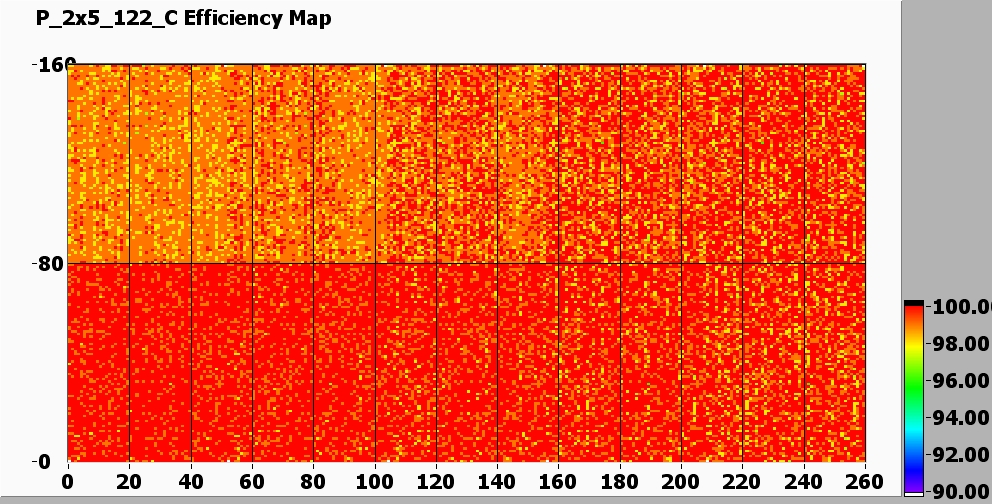

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-01
