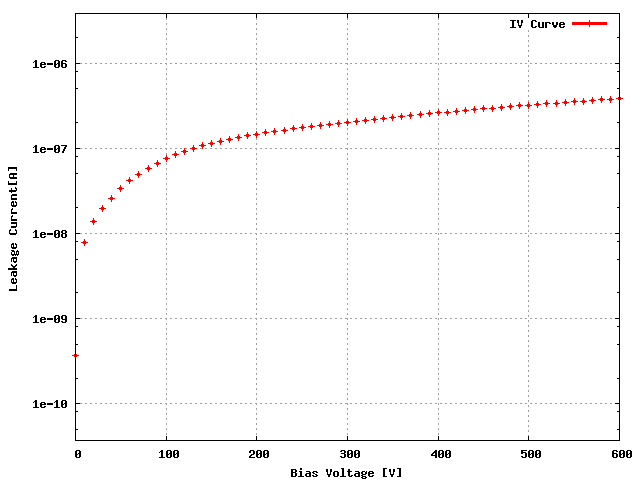

Sensor: S_2x5_122, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KMNG2DT	24A
ROC1	KMNG2DT	64B
ROC2	KMNG2DT	74C
ROC3	KMNG2DT	05D
ROC4	KMNG2DT	05B
ROC5	KMNG2DT	63B
ROC6	KMNG2DT	03A
ROC7	KMNG2DT	73A
ROC8	KMNG2DT	73D
ROC9	KMNG2DT	73C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	172	170	154	186	170	154	160	144	152	164
Vana, VanaData	139	138	132	140	138	127	127	137	127	137
CalDelData and plots	68	74	85	77	75	92	77	92	78	82
VthrCompData and plots	88	85	76	86	80	74	86	83	83	82
TestDdata ,TestD Plots	0	2	0	0	2	0	1	58	3	3
LightData ,Light Plots	0	2	1	1	2	0	1	775	3	55
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD	BAD

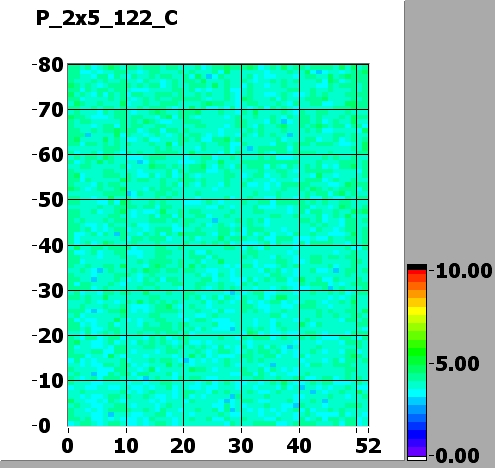

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

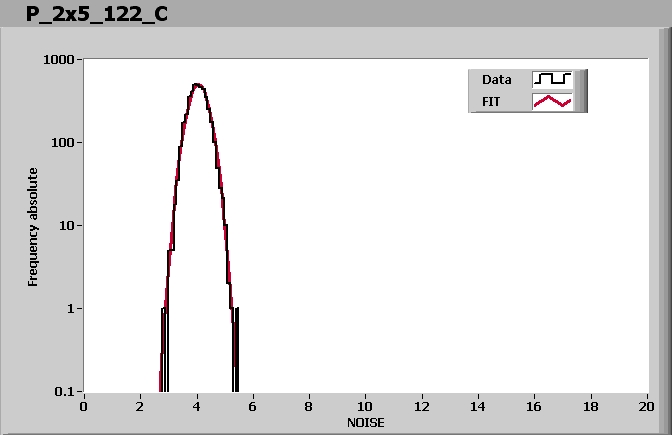

ROC0 NOISE			MEAN = 3.626055 SIGMA = 0.288819

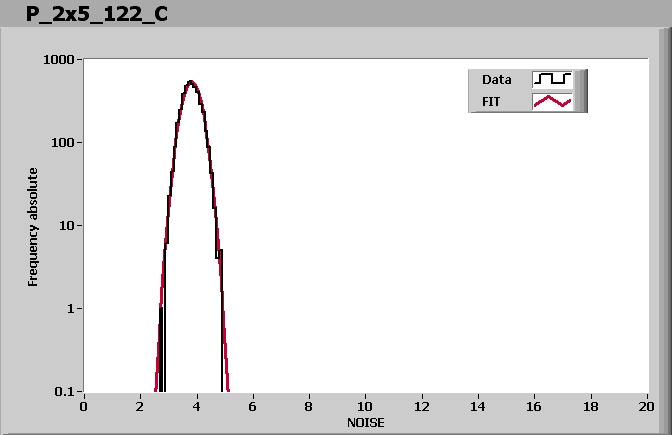

ROC1 NOISE			MEAN = 3.816277 SIGMA = 0.310791
ROC2 NOISE			MEAN = 4.157358 SIGMA = 0.340624
ROC3 NOISE			MEAN = 3.471281 SIGMA = 0.272864
ROC4 NOISE			MEAN = 4.195935 SIGMA = 0.350748
ROC5 NOISE			MEAN = 4.060310 SIGMA = 0.338460
ROC6 NOISE			MEAN = 4.055211 SIGMA = 0.333709
ROC7 NOISE			MEAN = 4.929894 SIGMA = 0.396403
ROC8 NOISE			MEAN = 4.599614 SIGMA = 0.359416
ROC9 NOISE			MEAN = 4.089859 SIGMA = 0.345629

Comment (if any):

End testing time: 11:31 AM
