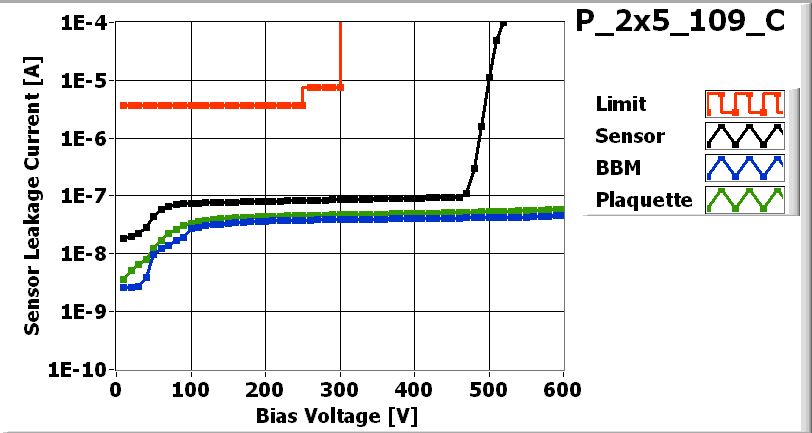

![[IMAGE] of](P_2x5_109_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

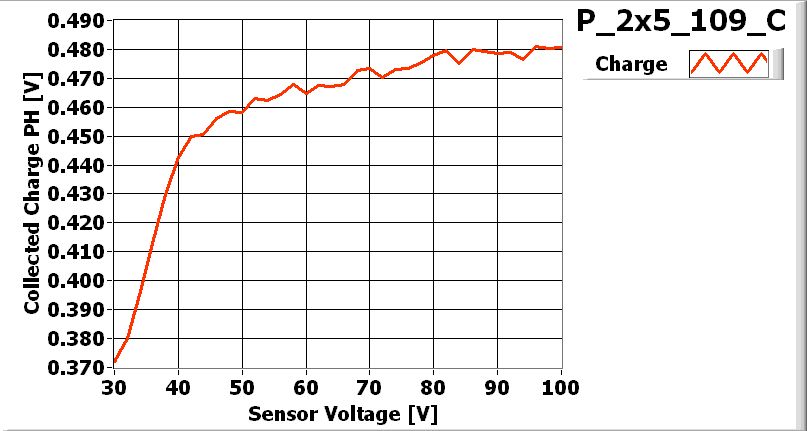

![[IMAGE] of](P_2x5_109_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/16/2007
| Part | ID |
|---|---|
| BBM | BBM_109-2x5 |
| VHDI | 2x5_416 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 35D |
| ROC1 | X94KFJT | 25B |
| ROC2 | X94KFJT | 25A |
| ROC3 | X94KFJT | 25C |
| ROC4 | X94KFJT | 15B |
| ROC5 | X94KFJT | 65C |
| ROC6 | X94KFJT | 65D |
| ROC7 | X94KFJT | 65B |
| ROC8 | X94KFJT | 05A |
| ROC9 | X94KFJT | 15A |
Inspected by Lockwood Gale on date 4/23/2007
| LR_dev | 0.039 |
| LL_dev | 0.040 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. Delaminated VHDI, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/24/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/24/2007 by Ozhan Koybasi
P_2x5_109_Con 4/25/2007 10:34 AM
P_2x5_109_Con 4/25/2007 10:34 AM
PLAQUETTE TESTED on 2007-04-25 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 140 | 128 | 128 | 150 | 150 | 138 | 144 | 136 | 128 | 150 | |
| Vana | 131 | 129 | 111 | 129 | 147 | 130 | 127 | 133 | 127 | 146 | |
| Cal_Del | 91 | 97 | 78 | 93 | 73 | 84 | 83 | 102 | 93 | 76 | |
| Vthrs_Comp | 73 | 62 | 74 | 71 | 86 | 70 | 61 | 66 | 72 | 84 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 0 | 1 | 9 | 1 | 85 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 0 | 1 | 9 | 1 | 85 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

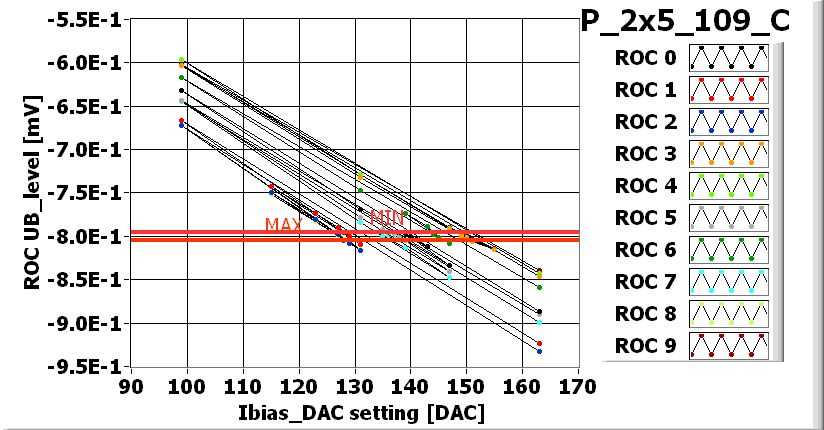

![[IMAGE] of](P_2x5_109_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_109_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_109_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_109_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_109_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_109_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 120 | 160 | 145 | 100 | 120 | 125 | 115 | 125 | 95 |
| Vsf | 140 | 140 | 140 | 140 | 145 | 135 | 140 | 140 | 140 | 145 |
| VoffsetOp | 70 | 85 | 70 | 70 | 105 | 65 | 65 | 80 | 80 | 120 |
| VIbias_PH | 100 | 95 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |

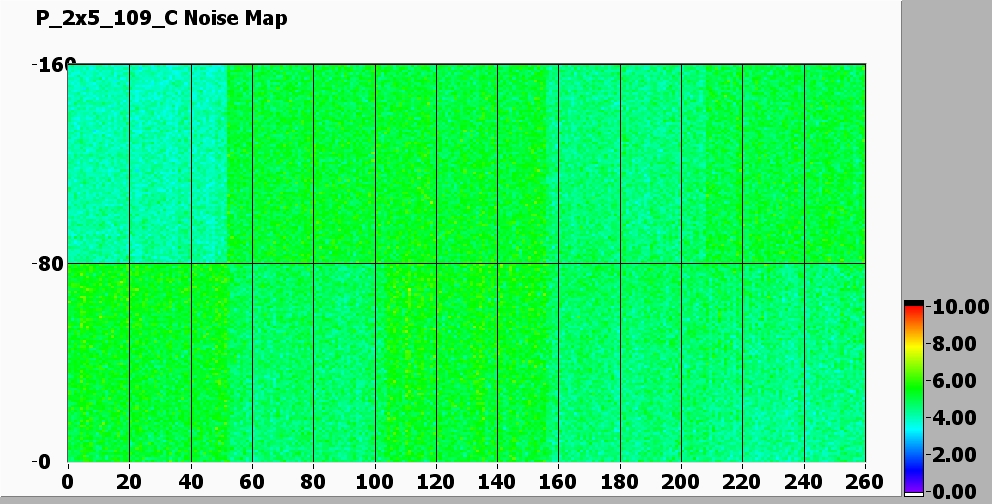

Noise MAP
![[IMAGE] of](P_2x5_109_C-580-noise.jpg)

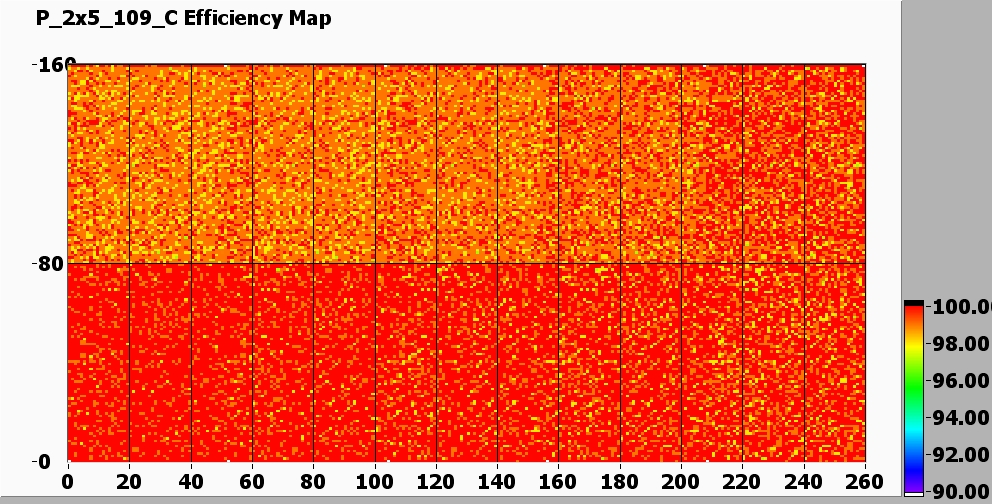

Efficiency MAP
![[IMAGE] of](P_2x5_109_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
