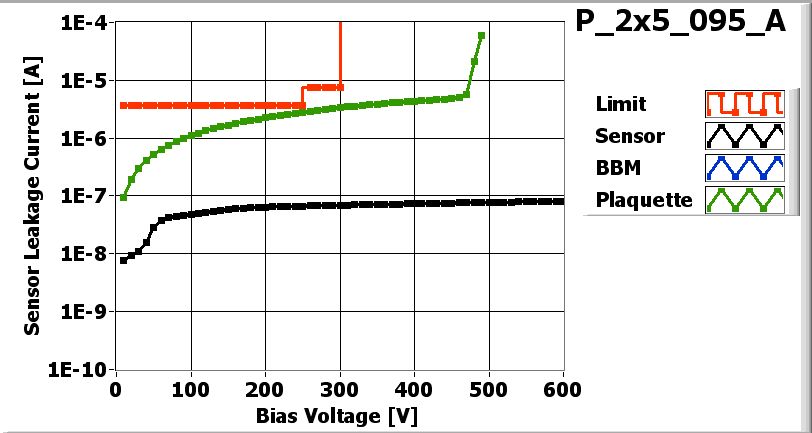

![[IMAGE] of](P_2x5_095_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 490 V |
![[IMAGE] of](P_2x5_095_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 8/9/2007
| Part | ID |
|---|---|
| BBM | BBM_095-2x5 |
| VHDI | 2x5_336 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 25A |
| ROC1 | X74JP0T | 43D |
| ROC2 | X74JP0T | 43B |
| ROC3 | X74JP0T | 43A |
| ROC4 | W13_XX4JPAT | 04B |
| ROC5 | X74JP0T | 32B |
| ROC6 | X74JP0T | 32C |
| ROC7 | XX4JPAT | 57D |
| ROC8 | X74JP0T | 33A |
| ROC9 | X74JP0T | 33B |
This plaquette was reworked. Old results here
Inspected by Lockwood Gale on date 8/21/2007
| LR_dev | 0.010 |
| LL_dev | 0.011 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | NO ASSEMBLY PROBLEMS No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 8/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 8/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/21/2007 by Ozhan Koybasi
P_2x5_095_Aon 8/22/2007 9:48 AM
P_2x5_095_A-1on 8/22/2007 9:52 AM
P_2x5_095_A-1on 8/22/2007 9:52 AM
PLAQUETTE TESTED on 2007-08-22 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 146 | 150 | 146 | 154 | 150 | 154 | 150 | 132 | 156 | 148 | |
| Vana | 127 | 126 | 116 | 133 | 127 | 124 | 158 | 106 | 127 | 133 | |
| Cal_Del | 96 | 78 | 74 | 71 | 75 | 69 | 68 | 75 | 73 | 80 | |
| Vthrs_Comp | 70 | 66 | 64 | 75 | 74 | 75 | 91 | 69 | 83 | 76 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

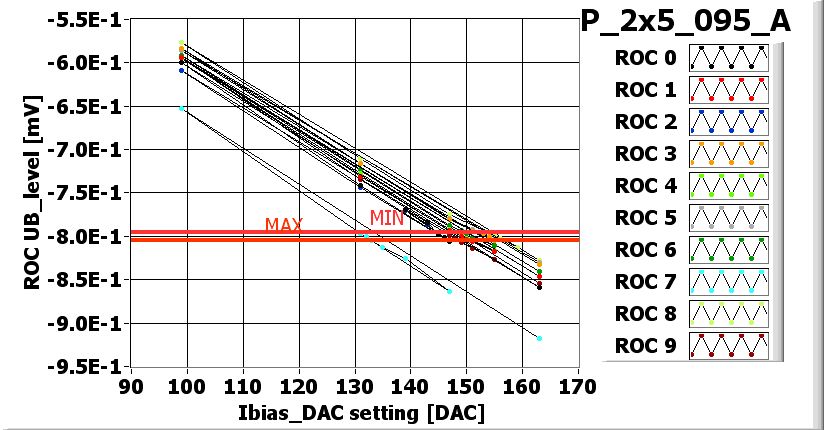

![[IMAGE] of](P_2x5_095_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

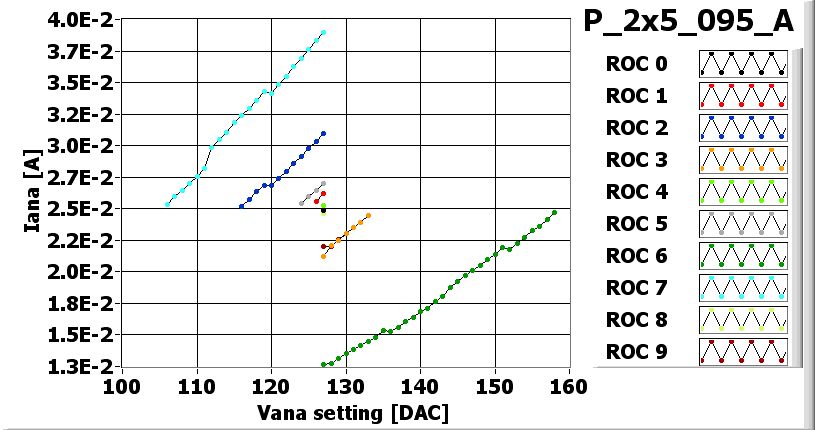

![[IMAGE] of](P_2x5_095_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_095_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_095_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_095_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_095_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 120 | 130 | 105 | 120 | 135 | 100 | 170 | 125 | 120 |
| Vsf | 135 | 140 | 130 | 140 | 135 | 135 | 150 | 140 | 135 | 140 |
| VoffsetOp | 45 | 60 | 50 | 70 | 80 | 75 | 95 | 45 | 60 | 60 |
| VIbias_PH | 95 | 95 | 105 | 95 | 90 | 105 | 100 | 105 | 105 | 95 |

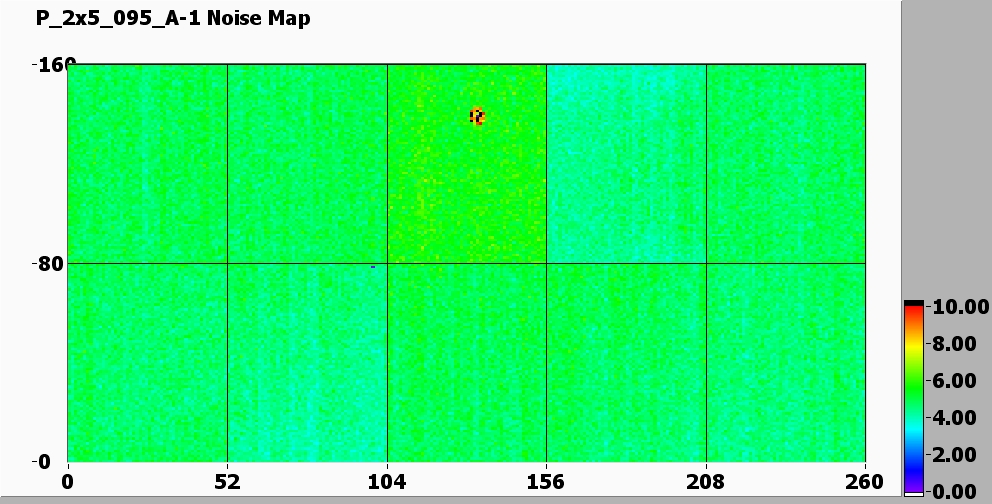

Noise MAP at VMAX
![[IMAGE] of](P_2x5_095_A-1-470-noise.jpg)

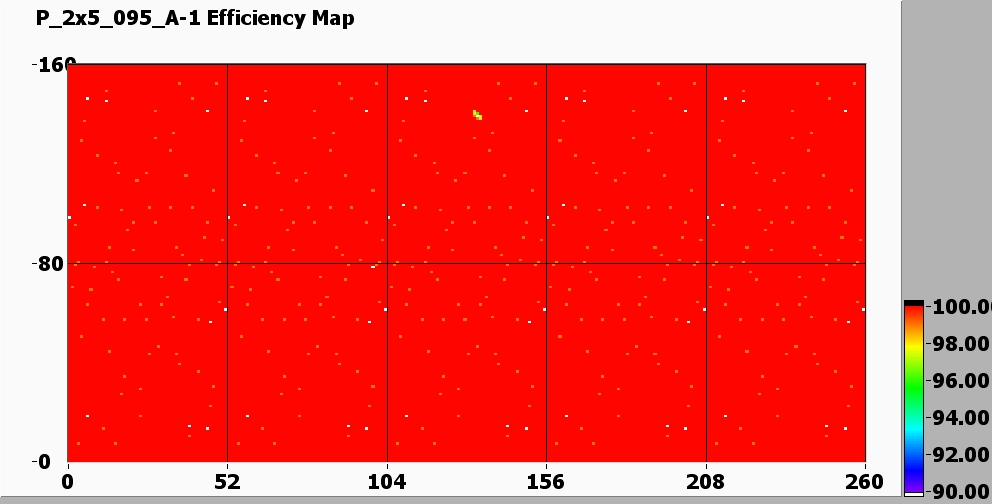

Efficiency MAP
![[IMAGE] of](P_2x5_095_A-1-470-efficiency.jpg)

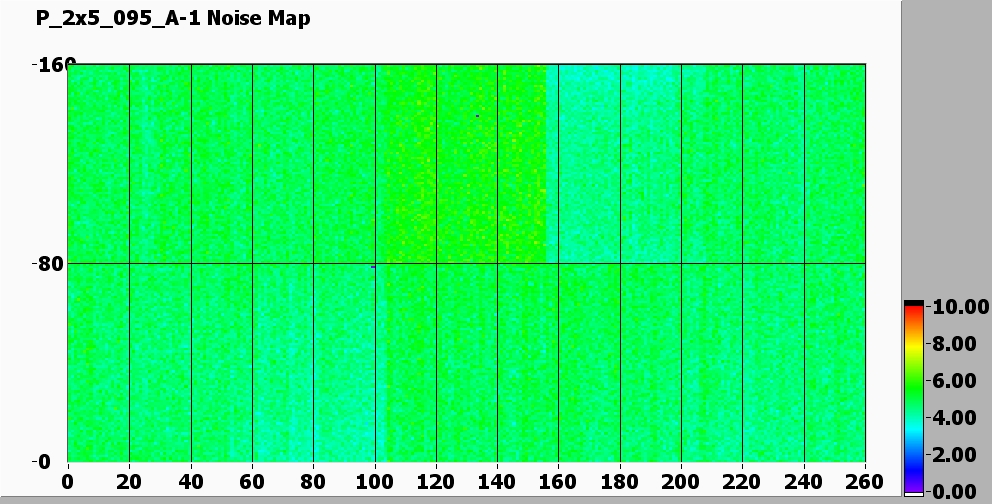

Noise MAP at -200 V
![[IMAGE] of](P_2x5_095_A-1-200-noise.jpg)

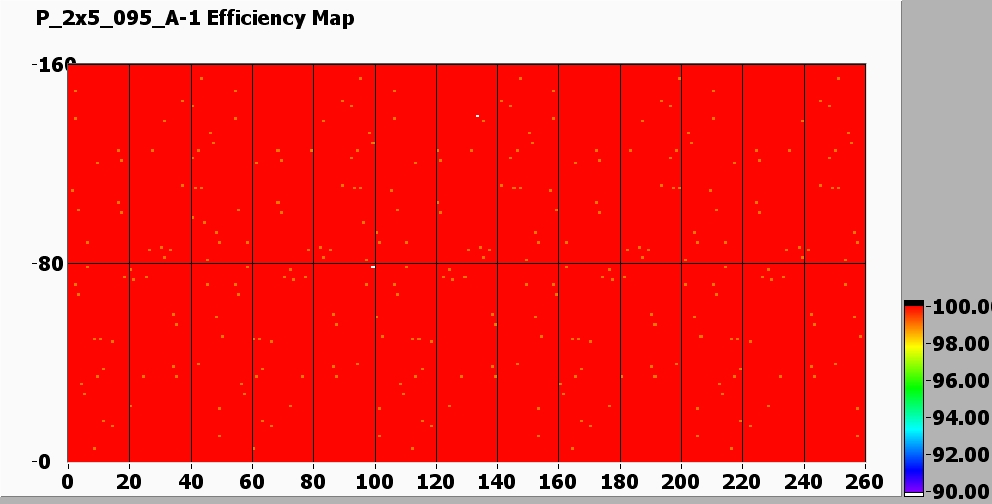

Efficiency MAP
![[IMAGE] of](P_2x5_095_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
