P_2x5_095_A-1

Production testing

Date:8/22/2007

Operator: Gino Bolla

start testing time:9:52 AM

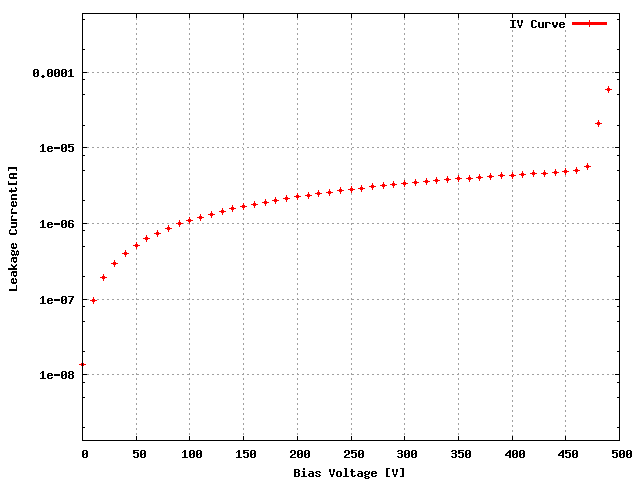

Sensor: S_2x5_095, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0X74JP0T25A
ROC1X74JP0T43D
ROC2X74JP0T43B
ROC3X74JP0T43A
ROC4W13_XX4JPAT04B
ROC5X74JP0T32B
ROC6X74JP0T32C
ROC7XX4JPAT57D
ROC8X74JP0T33A
ROC9X74JP0T33B

This plaquette was reworked. Old results here

Inspected by Lockwood Gale on date 8/21/2007
LR_dev0.010
LL_dev0.011

PLAQUETTE GLUED with FULL PRESSURE

FINAL COMMENT by Lockwood GaleNO ASSEMBLY PROBLEMS No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 8/21/2007 by Lockwood Gale

PLAQUETTE encapsulated on 8/21/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 8/21/2007 by Ozhan Koybasi

P_2x5_095_Aon 8/22/2007 9:48 AM

P_2x5_095_A-1on 8/22/2007 9:52 AM

Depletion Voltage is -44 and suggested operational voltage is -84
Ibias_DAC, Ibias_DAC Data 146 150 146 154 150 154 150 132 156 148
Vana, VanaData 127 126 116 133 127 124 158 106 127 133
CalDelData and plots96787471756968757380
VthrCompData and plots70666475747591698376
TestDdata ,TestD Plots1200030080112855
LightData ,Light Plots0000000000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD BAD GOOD BAD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe100120130105120135100170125120
Vsf135140130140135135150140135140
VoffsetOp45605070807595456060
VIbias_PH9595105959010510010510595

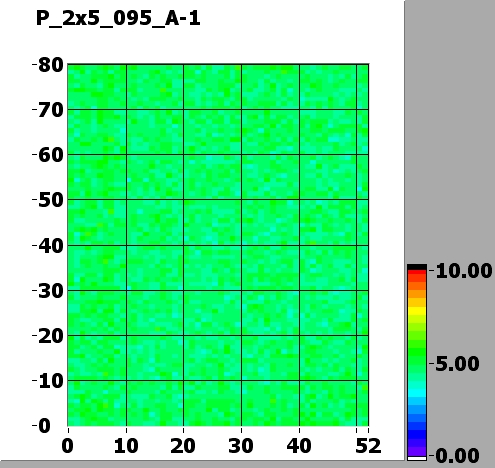

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.662890

SIGMA = 0.365695
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.391662

SIGMA = 0.391282
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.840489

SIGMA = 0.404357
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.739880

SIGMA = 0.395512

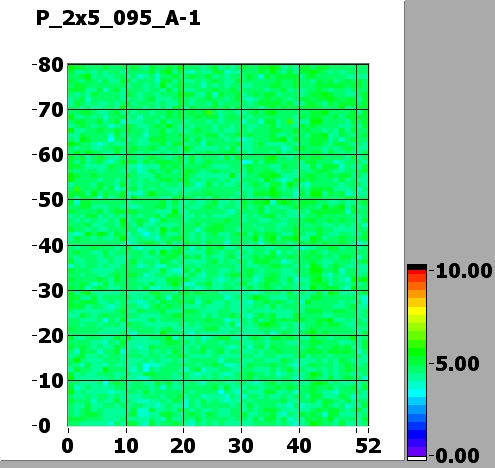

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.571376

SIGMA = 0.360385

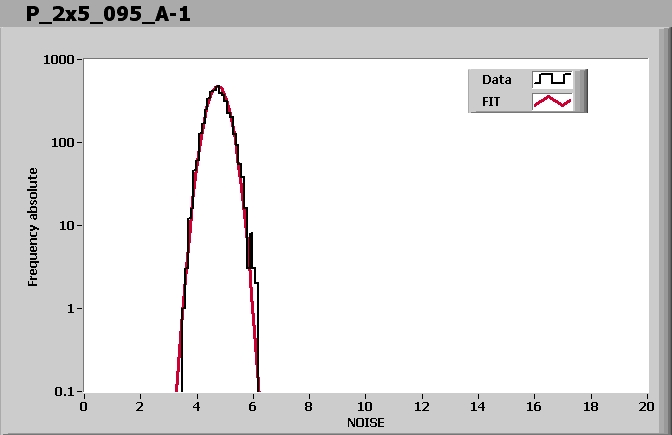

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.742087

SIGMA = 0.354240

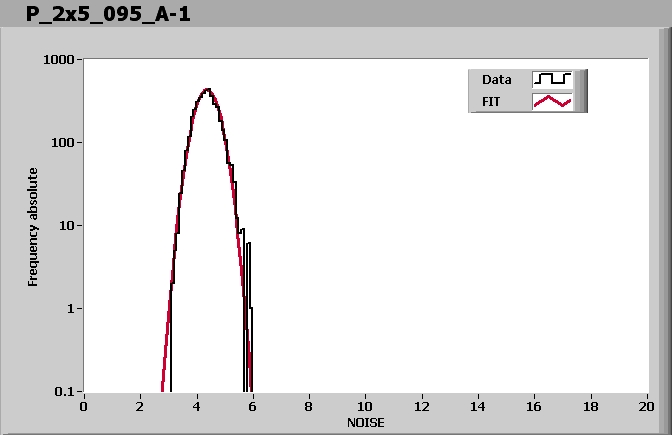

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.357416

SIGMA = 0.386752

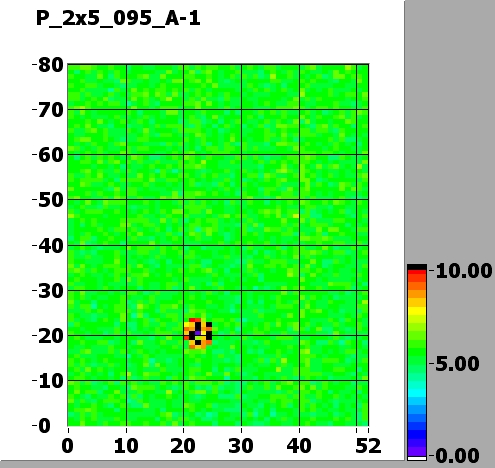

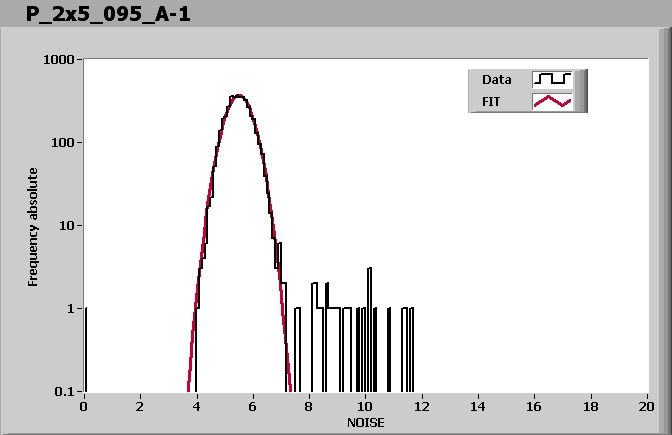

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 5.494808

SIGMA = 0.450796
ROC8 NOISE[IMAGE] of [IMAGE] of MEAN = 4.838111

SIGMA = 0.378633

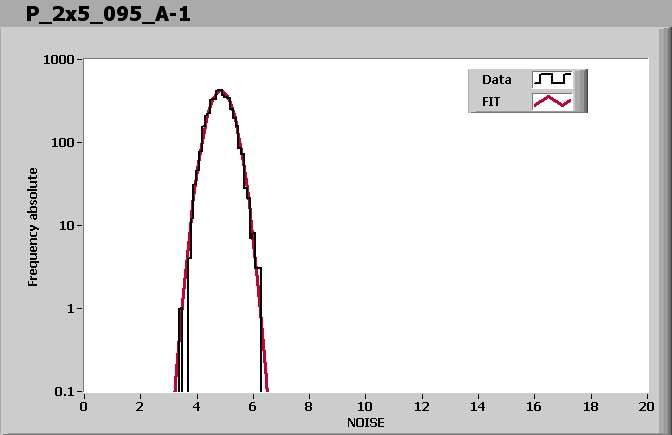

ROC9 NOISE[IMAGE] of [IMAGE] of MEAN = 4.854489

SIGMA = 0.398578

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x5_095_A.html,

End testing time: 10:22 AM
