P_2x5_062

P_2x5_062_C

Parts committed by Bolla Gino on date 4/2/2007

Part	ID
BBM	BBM_062-2x5
VHDI	2x5_409

ROC ROC wafer Label

ROC0 XH4KFBT 06B

ROC1 XH4KFBT 04C

ROC2 XH4KFBT 04A

ROC3 XH4KFBT 06D

ROC4 XH4KFBT 06A

ROC5 XH4KFBT 03B

ROC6 XH4KFBT 04B

ROC7 XH4KFBT 03C

ROC8 XH4KFBT 12C

ROC9 XH4KFBT 03A

ROC	ROC wafer	Label
ROC0	XH4KFBT	06B
ROC1	XH4KFBT	04C
ROC2	XH4KFBT	04A
ROC3	XH4KFBT	06D
ROC4	XH4KFBT	06A
ROC5	XH4KFBT	03B
ROC6	XH4KFBT	04B
ROC7	XH4KFBT	03C
ROC8	XH4KFBT	12C
ROC9	XH4KFBT	03A

Inspected by Lockwood Gale on date 4/5/2007

LR_dev 0.044

LL_dev 0.043

FINAL COMMENT by Lockwood Gale No assembly problems. ROC 1, ch 1, All wires bonded.

PLAQUETTE made READY for ENCAPSULATION on 4/5/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/5/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/5/2007 by Ozhan Koybasi

P_2x5_062_Con 4/6/2007 11:54 AM

P_2x5_062_C-1on 4/6/2007 12:07 PM

PLAQUETTE TESTED on 2007-04-06 by Gino Bolla

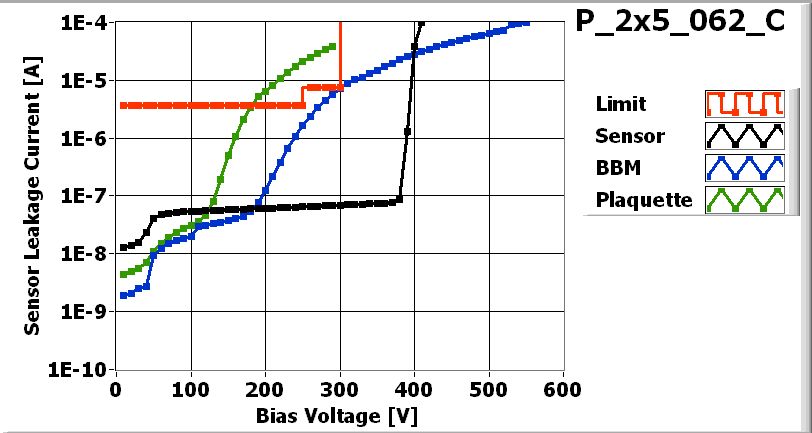

IV_XML-File

Maximum Voltage 290 V

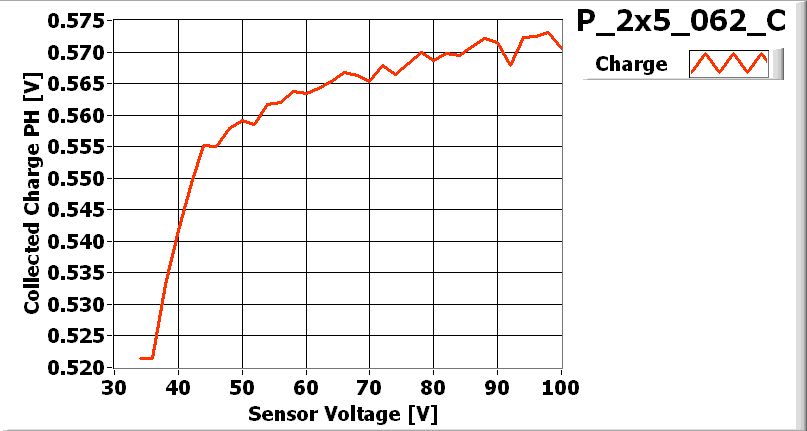

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	144	138	134	146	134	134	144	134	124	122
Vana	118	135	141	132	122	115	144	132	138	120
Cal_Del	71	83	77	74	104	89	83	72	93	91
Vthrs_Comp	86	86	89	83	69	72	88	82	77	79
Unbumped	0	0	0	0	0	0	1	1	1	0
Dead	0	0	0	0	0	0	1	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	2	1	1	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File

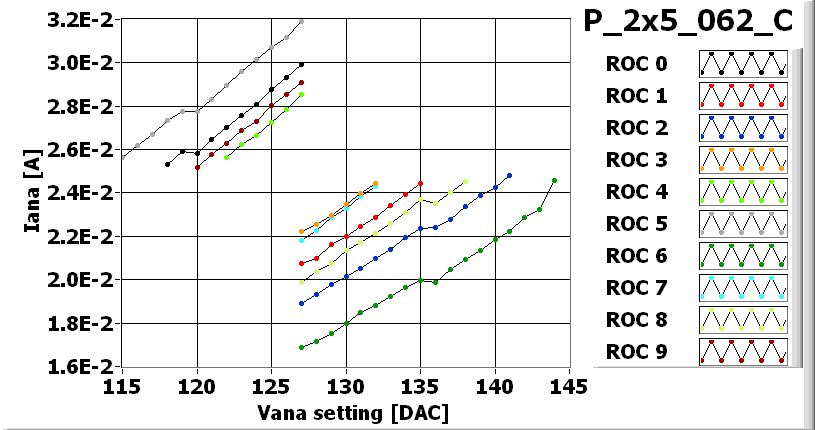

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	150	115	105	120	130	165	105	130	120	155
Vsf	135	145	140	140	135	135	140	140	145	135
VoffsetOp	95	85	85	100	65	50	95	90	55	80
VIbias_PH	95	100	100	95	105	100	95	100	105	95

Noise MAP

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-04-10
