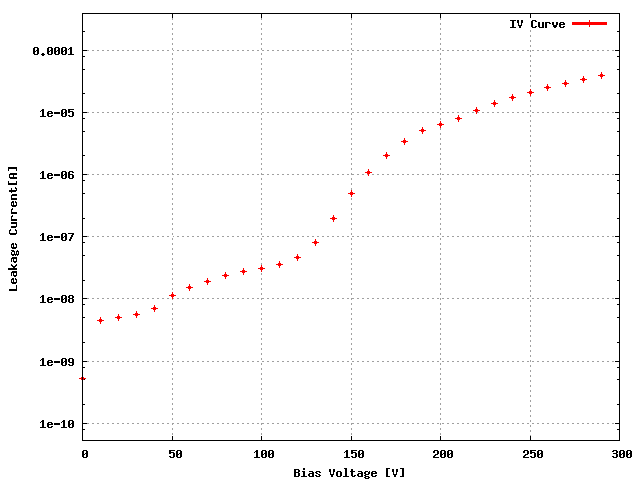

Sensor: S_2x5_062, Data for leakage current measurement , and plot on overall it is a BAD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	06B
ROC1	XH4KFBT	04C
ROC2	XH4KFBT	04A
ROC3	XH4KFBT	06D
ROC4	XH4KFBT	06A
ROC5	XH4KFBT	03B
ROC6	XH4KFBT	04B
ROC7	XH4KFBT	03C
ROC8	XH4KFBT	12C
ROC9	XH4KFBT	03A

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	144	138	134	146	134	134	144	134	124	122
Vana, VanaData	118	135	141	132	122	115	144	132	138	120
CalDelData and plots	71	83	77	74	104	89	83	72	93	91
VthrCompData and plots	86	86	89	83	69	72	88	82	77	79
TestDdata ,TestD Plots	0	0	0	0	0	0	2	1	1	0
LightData ,Light Plots	0	0	0	0	0	0	1	1	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

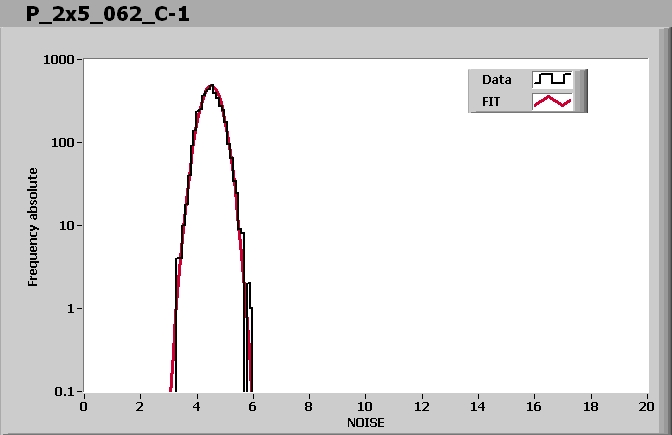

ROC0 NOISE			MEAN = 4.505271 SIGMA = 0.351543
ROC1 NOISE			MEAN = 4.360079 SIGMA = 0.338954
ROC2 NOISE			MEAN = 4.580487 SIGMA = 0.354335

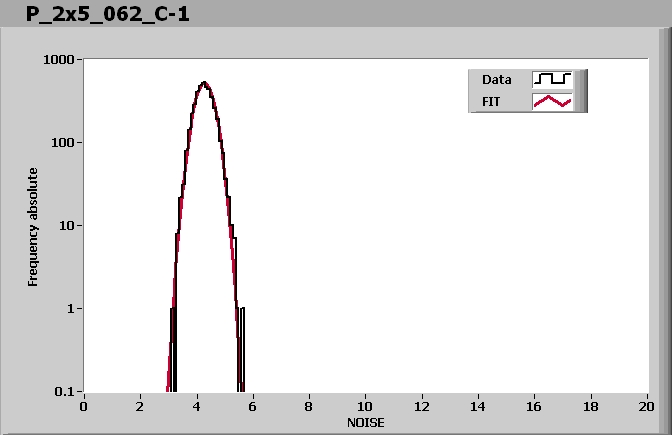

ROC3 NOISE			MEAN = 4.271433 SIGMA = 0.317597
ROC4 NOISE			MEAN = 5.417914 SIGMA = 0.426940
ROC5 NOISE			MEAN = 5.223438 SIGMA = 0.421556
ROC6 NOISE			MEAN = 4.676638 SIGMA = 0.351095
ROC7 NOISE			MEAN = 4.654402 SIGMA = 0.365276

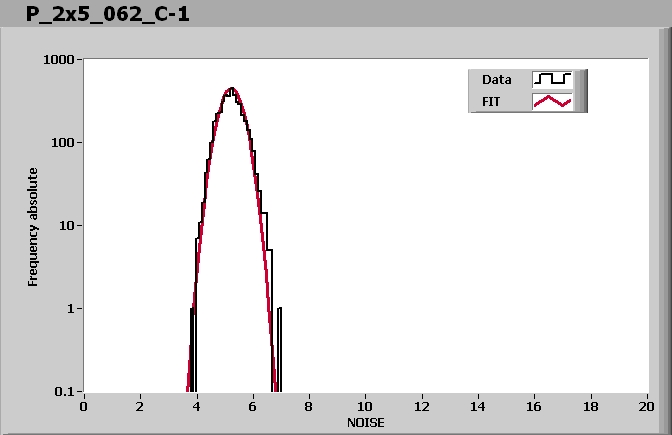

ROC8 NOISE			MEAN = 5.221821 SIGMA = 0.382676
ROC9 NOISE			MEAN = 4.543639 SIGMA = 0.373947

Comment (if any): Vmax=270, otherwise good.
