P_2x5_056

P_2x5_056_C

Parts committed by Bolla Gino on date 5/29/2007

Part	ID
BBM	BBM_056-2x5
VHDI	2x5_603

ROC ROC wafer Label

ROC0 KMNG2DT 26D

ROC1 KMNG2DT 30B

ROC2 KMNG2DT 11B

ROC3 KMNG2DT 11D

ROC4 KMNG2DT 31C

ROC5 KMNG2DT 31B

ROC6 KMNG2DT 31A

ROC7 KMNG2DT 21B

ROC8 KMNG2DT 21D

ROC9 KMNG2DT 21A

ROC	ROC wafer	Label
ROC0	KMNG2DT	26D
ROC1	KMNG2DT	30B
ROC2	KMNG2DT	11B
ROC3	KMNG2DT	11D
ROC4	KMNG2DT	31C
ROC5	KMNG2DT	31B
ROC6	KMNG2DT	31A
ROC7	KMNG2DT	21B
ROC8	KMNG2DT	21D
ROC9	KMNG2DT	21A

Inspected by Lockwood Gale on date 6/1/2007

LR_dev 0.033

LL_dev 0.036

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. ROC 4, Ch 1; ROC 7, Ch 34,35; ROC 8, Ch 1 required multiple bond cycles, no other wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 6/1/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/1/2007 by Arndt Kirk

PLAQUETTE made READY for testing on 6/1/2007 by Arndt Kirk

P_2x5_056_Con 6/4/2007 9:04 AM

P_2x5_056_C-1on 6/4/2007 9:07 AM

PLAQUETTE TESTED on 2007-06-04 by Gino Bolla

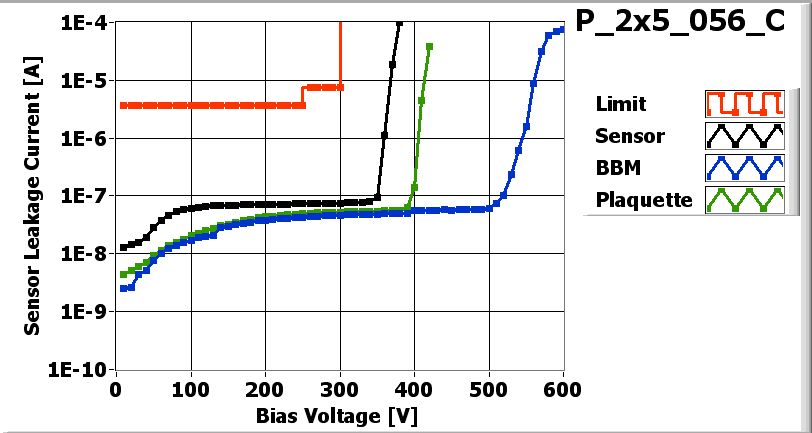

IV_XML-File

Maximum Voltage 420 V

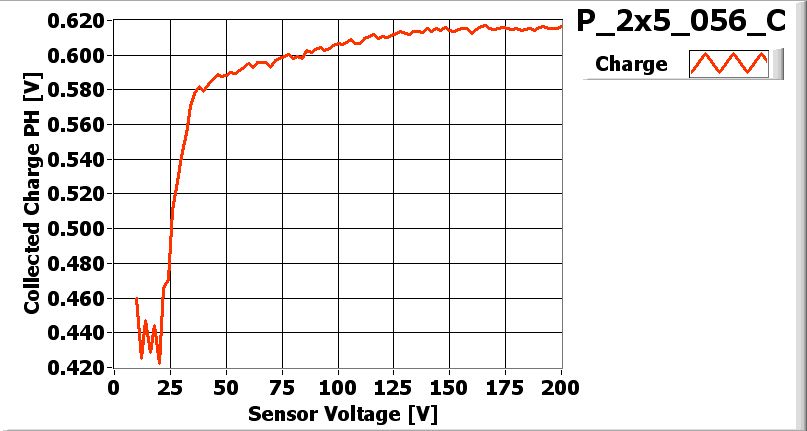

LASER_XML-File

Depletion Voltage 36 V

Operational Voltage 76 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	154	160	154	158	166	158	154	140	170	156
Vana	135	113	130	144	144	126	133	126	142	141
Cal_Del	89	84	66	70	71	75	75	82	74	80
Vthrs_Comp	77	74	83	83	84	89	87	76	84	82
Unbumped	0	0	0	1	10	1	0	0	1	2
Dead	0	0	0	0	0	2	0	0	0	0
Noisy	0	0	0	0	0	0	0	3	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	1	10	3	0	3	1	2

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

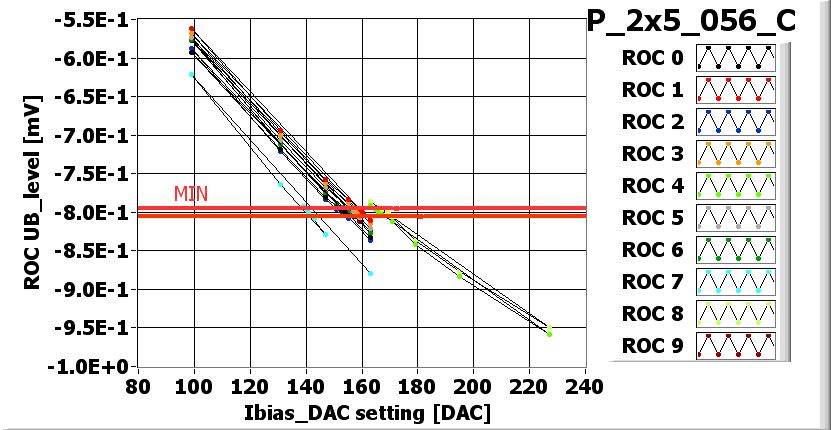

	I_BIAS_DAC_XML-File

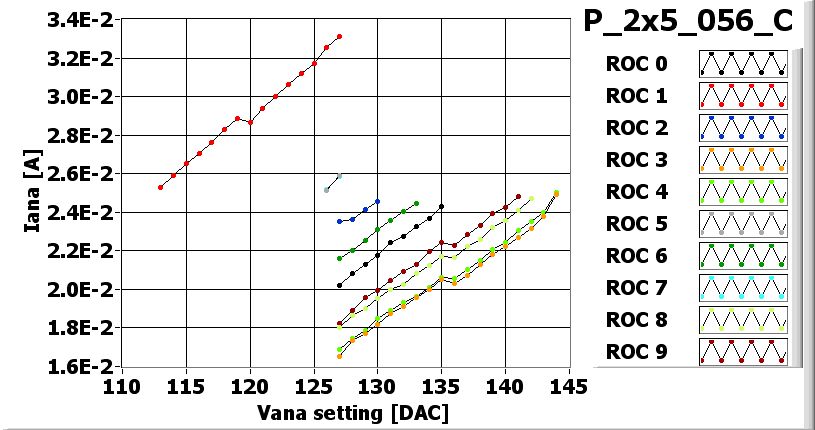

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	100	155	110	95	100	150	115	130	95	90
Vsf	145	130	140	145	140	135	140	140	140	145
VoffsetOp	90	75	90	90	105	65	100	75	90	80
VIbias_PH	100	100	95	95	100	100	100	105	105	105

Noise MAP at VMAX

Efficiency MAP

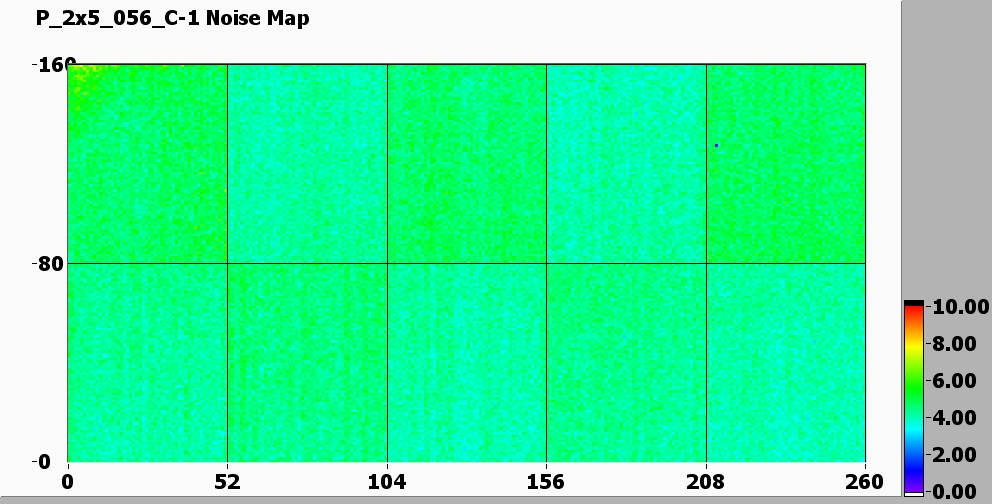

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-05
