Sensor: S_2x5_056, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KMNG2DT	26D
ROC1	KMNG2DT	30B
ROC2	KMNG2DT	11B
ROC3	KMNG2DT	11D
ROC4	KMNG2DT	31C
ROC5	KMNG2DT	31B
ROC6	KMNG2DT	31A
ROC7	KMNG2DT	21B
ROC8	KMNG2DT	21D
ROC9	KMNG2DT	21A

Depletion Voltage is -36 and suggested operational voltage is -76

Ibias_DAC, Ibias_DAC Data	154	160	154	158	166	158	154	140	170	156
Vana, VanaData	135	113	130	144	144	126	133	126	142	141
CalDelData and plots	89	84	66	70	71	75	75	82	74	80
VthrCompData and plots	77	74	83	83	84	89	87	76	84	82
TestDdata ,TestD Plots	0	0	0	0	6	3	0	3	1	1
LightData ,Light Plots	0	0	0	1	10	1	0	0	1	2
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

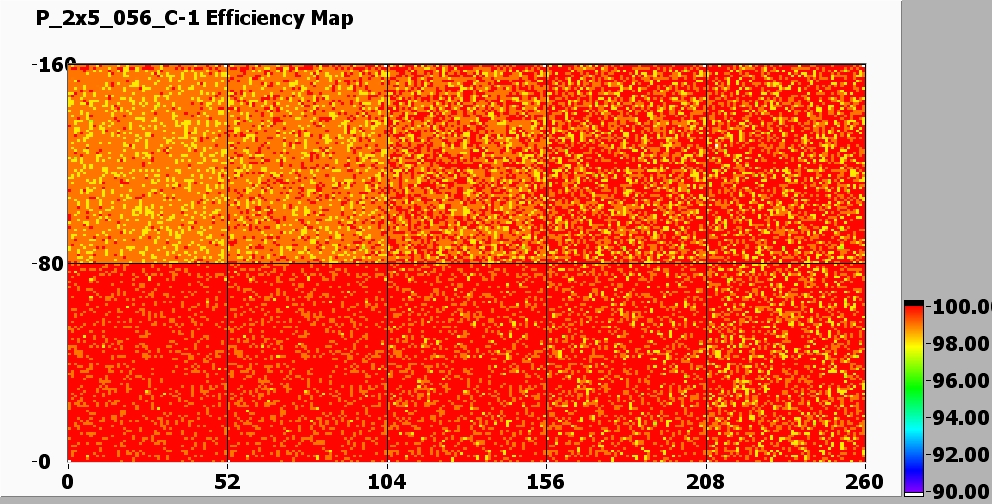

Efficiency MAP

EXTRA DACs for NOISE

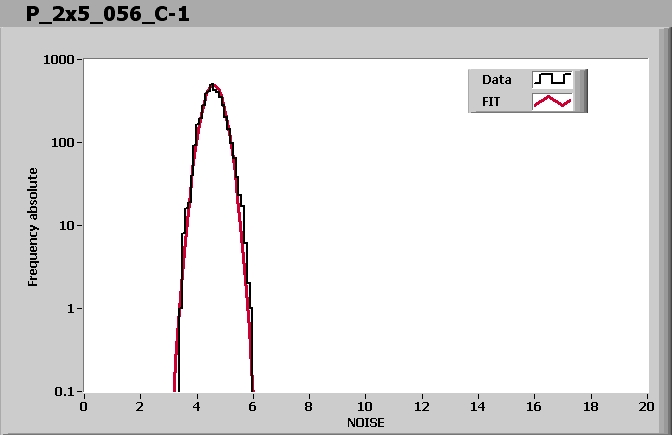

ROC0 NOISE			MEAN = 4.196286 SIGMA = 0.347267
ROC1 NOISE			MEAN = 4.445802 SIGMA = 0.354979
ROC2 NOISE			MEAN = 4.090196 SIGMA = 0.340224
ROC3 NOISE			MEAN = 4.317790 SIGMA = 0.325372
ROC4 NOISE			MEAN = 4.051034 SIGMA = 0.318840

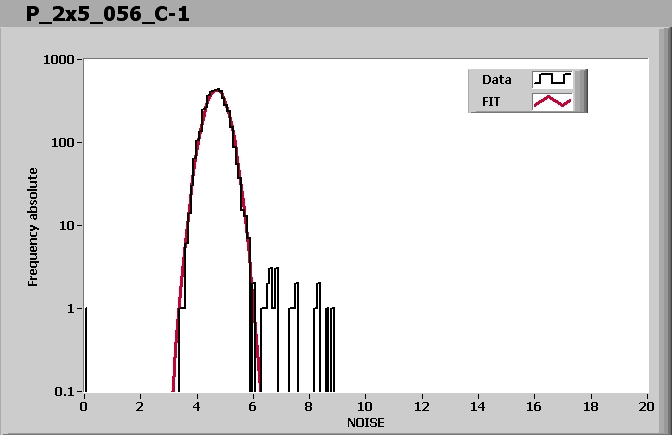

ROC5 NOISE			MEAN = 4.695712 SIGMA = 0.381607
ROC6 NOISE			MEAN = 4.068188 SIGMA = 0.321056
ROC7 NOISE			MEAN = 4.591769 SIGMA = 0.342354
ROC8 NOISE			MEAN = 4.139614 SIGMA = 0.327043
ROC9 NOISE			MEAN = 4.619131 SIGMA = 0.361180

Comment (if any):

P_2x5_056_C.html,

End testing time: 9:36 AM
