![[IMAGE] of](P_2x5_053_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

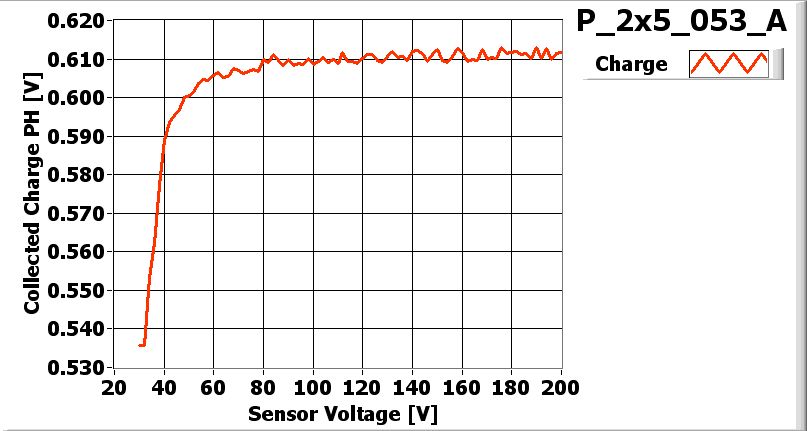

![[IMAGE] of](P_2x5_053_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_053-2x5 |
| VHDI | 2x5_710 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_DOLQC8T | 53A |
| ROC1 | W52_DOLQC8T | 52C |
| ROC2 | W52_DOLQC8T | 52A |
| ROC3 | W52_DOLQC8T | 51D |
| ROC4 | W52_DOLQC8T | 51C |
| ROC5 | W52_DOLQC8T | 30A |
| ROC6 | W52_DOLQC8T | 30B |
| ROC7 | W52_DOLQC8T | 30D |
| ROC8 | W52_DOLQC8T | 31B |
| ROC9 | W52_DOLQC8T | 31C |
Inspected by Lockwood Gale on date 11/14/2007
| LR_dev | 0.050 |
| LL_dev | 0.035 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. ROC1 ch 20 2FL 3 tries, ROC7 ch 22 2FL 2 tries, ROC8 ch 24,25 2FL 3 tries. No other wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/14/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/14/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/14/2007 by Ozhan Koybasi
P_2x5_053_Aon 11/15/2007 4:30 PM
P_2x5_053_Aon 11/15/2007 4:30 PM
PLAQUETTE TESTED on 2007-11-15 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 170 | 148 | 144 | 168 | 164 | 152 | 152 | 176 | 138 | 162 | |
| Vana | 159 | 138 | 137 | 145 | 160 | 121 | 141 | 155 | 131 | 146 | |
| Cal_Del | 64 | 91 | 90 | 80 | 77 | 82 | 94 | 86 | 96 | 86 | |
| Vthrs_Comp | 87 | 87 | 85 | 93 | 92 | 89 | 78 | 88 | 79 | 90 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

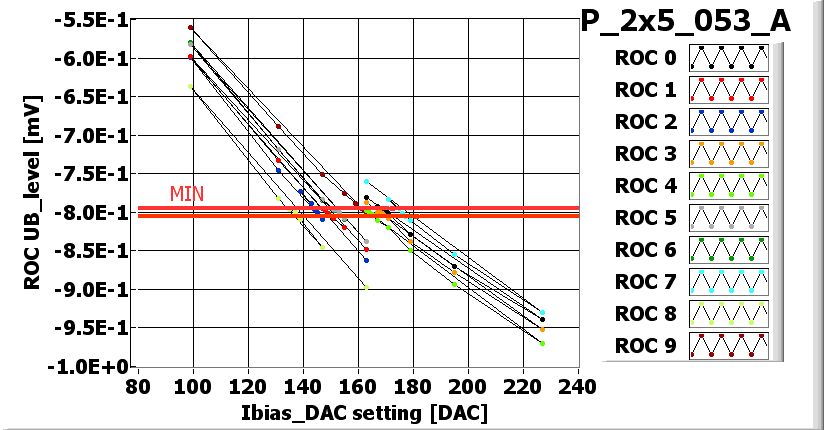

![[IMAGE] of](P_2x5_053_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

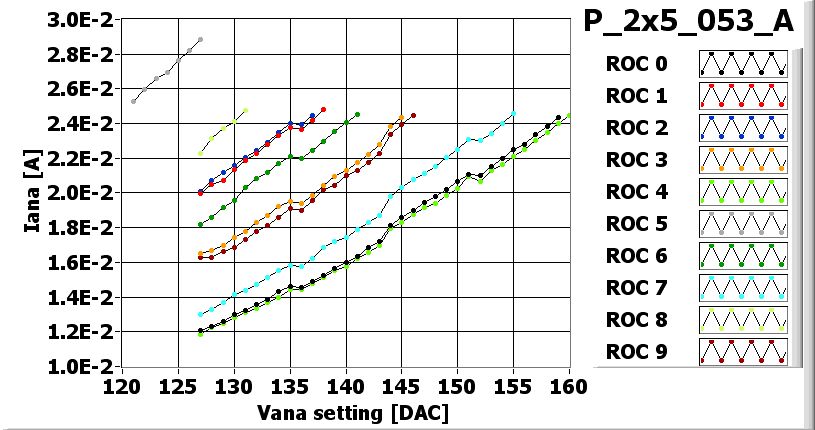

![[IMAGE] of](P_2x5_053_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_053_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_053_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_053_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_053_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 95 | 110 | 105 | 105 | 130 | 95 | 95 | 105 | 95 |
| Vsf | 150 | 145 | 140 | 150 | 165 | 135 | 140 | 150 | 140 | 145 |
| VoffsetOp | 150 | 95 | 80 | 115 | 110 | 95 | 85 | 115 | 90 | 115 |
| VIbias_PH | 100 | 100 | 95 | 100 | 95 | 105 | 105 | 100 | 100 | 100 |

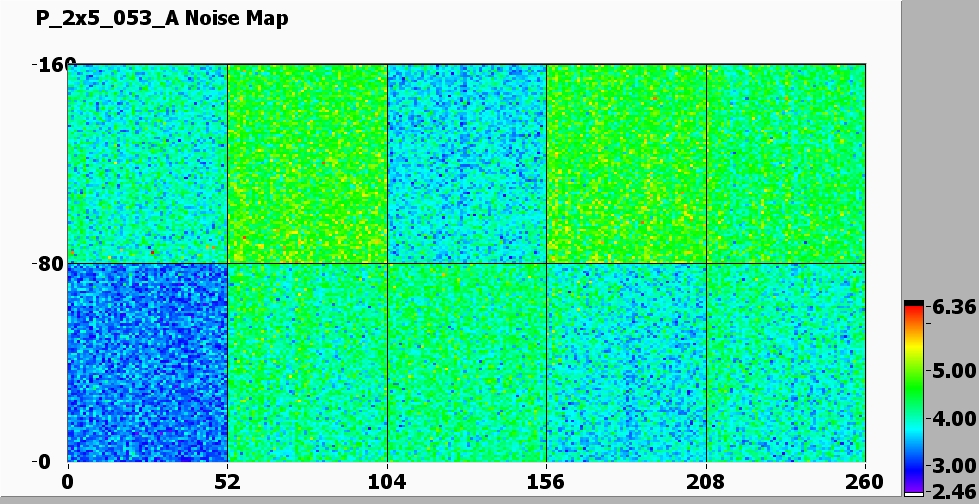

Noise MAP at VMAX
![[IMAGE] of](P_2x5_053_A-580-noise.jpg)

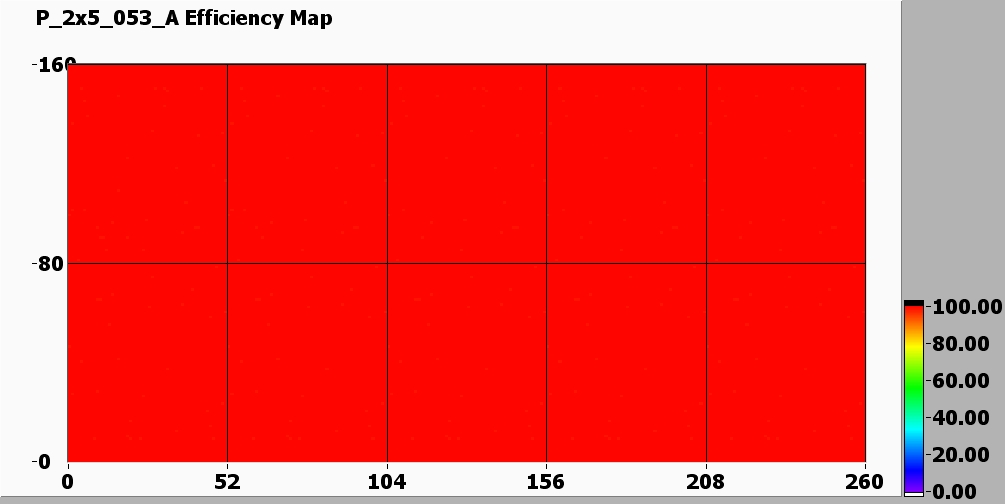

Efficiency MAP
![[IMAGE] of](P_2x5_053_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x5_053_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_053_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
