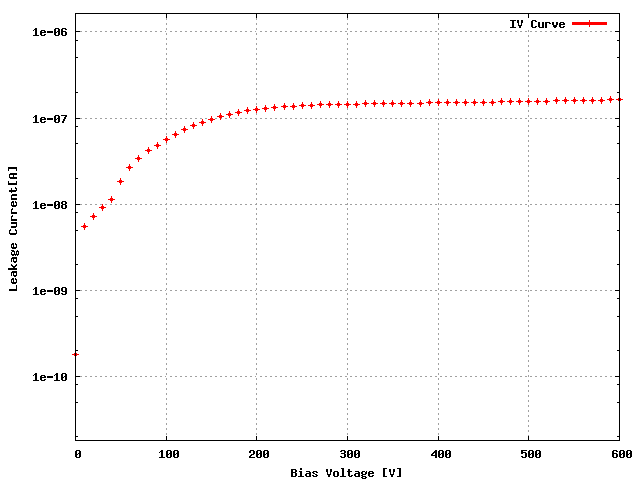

Sensor: S_2x5_053, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	53A
ROC1	W52_DOLQC8T	52C
ROC2	W52_DOLQC8T	52A
ROC3	W52_DOLQC8T	51D
ROC4	W52_DOLQC8T	51C
ROC5	W52_DOLQC8T	30A
ROC6	W52_DOLQC8T	30B
ROC7	W52_DOLQC8T	30D
ROC8	W52_DOLQC8T	31B
ROC9	W52_DOLQC8T	31C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	170	148	144	168	164	152	152	176	138	162
Vana, VanaData	159	138	137	145	160	121	141	155	131	146
CalDelData and plots	64	91	90	80	77	82	94	86	96	86
VthrCompData and plots	87	87	85	93	92	89	78	88	79	90
TestDdata ,TestD Plots	2	0	0	0	0	1	0	0	0	0
LightData ,Light Plots	0	0	0	0	1	1	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

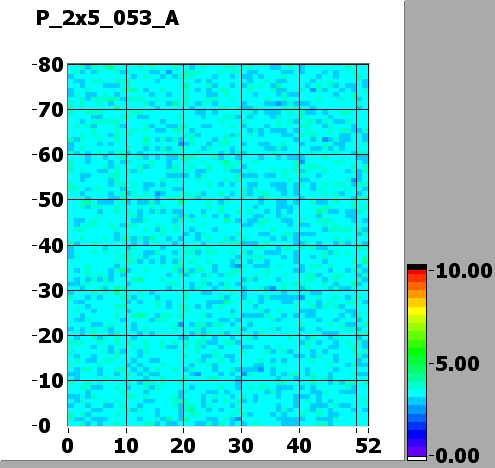

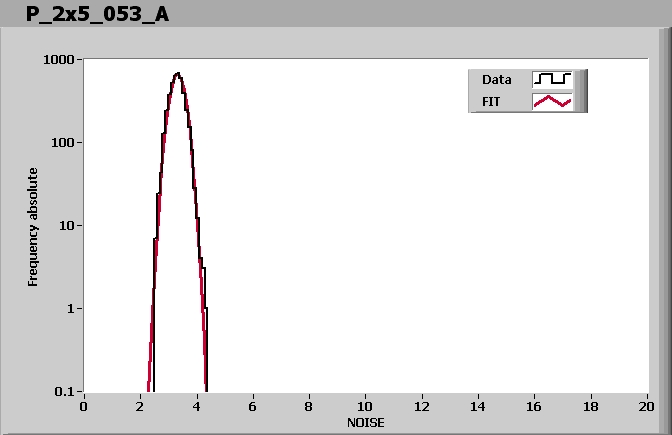

ROC0 NOISE			MEAN = 3.310652 SIGMA = 0.244649

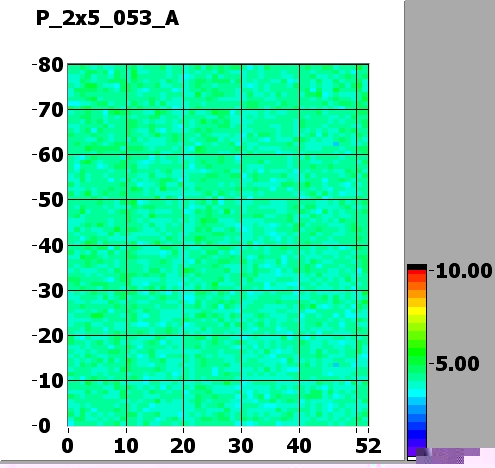

ROC1 NOISE			MEAN = 4.069831 SIGMA = 0.327552

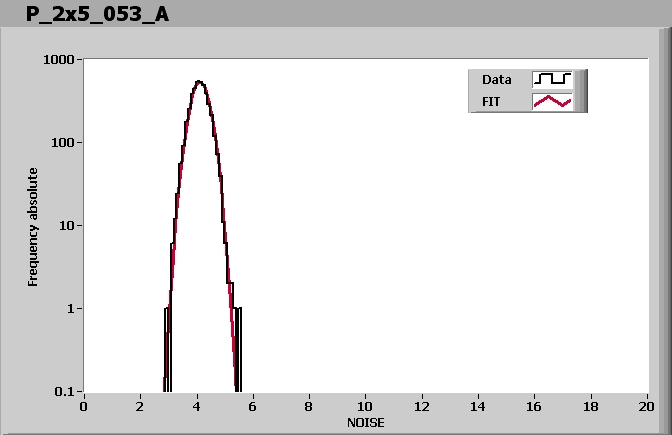

ROC2 NOISE			MEAN = 4.113213 SIGMA = 0.307535

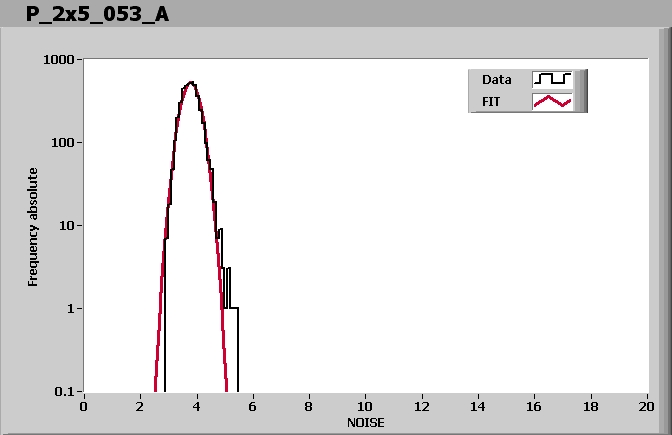

ROC3 NOISE			MEAN = 3.780457 SIGMA = 0.308989
ROC4 NOISE			MEAN = 3.917615 SIGMA = 0.317216

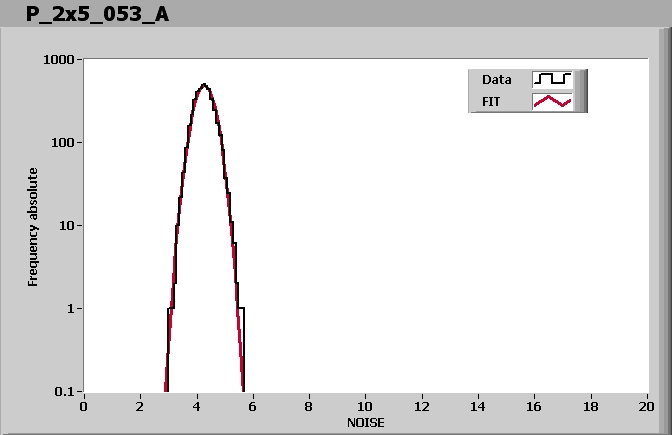

ROC5 NOISE			MEAN = 4.263267 SIGMA = 0.335913
ROC6 NOISE			MEAN = 4.503914 SIGMA = 0.343246
ROC7 NOISE			MEAN = 3.733972 SIGMA = 0.284669

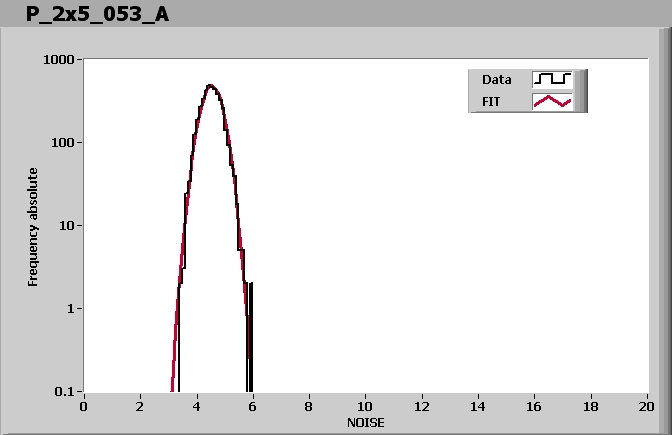

ROC8 NOISE			MEAN = 4.527476 SIGMA = 0.346792
ROC9 NOISE			MEAN = 3.891641 SIGMA = 0.318280

Comment (if any):

End testing time: 5:03 PM
