P_2x5_049

P_2x5_049_A

Parts committed by Bolla Gino on date 6/14/2007

Part	ID
BBM	BBM_049-2x5
VHDI	2x5_626

ROC ROC wafer Label

ROC0 W48_DVLQDVT 51A

ROC1 W48_DVLQDVT 68D

ROC2 W48_DVLQDVT 68C

ROC3 W48_DVLQDVT 68A

ROC4 W48_DVLQDVT 67D

ROC5 W48_DVLQDVT 47B

ROC6 W48_DVLQDVT 47C

ROC7 W48_DVLQDVT 47D

ROC8 W48_DVLQDVT 48A

ROC9 W48_DVLQDVT 48C

ROC	ROC wafer	Label
ROC0	W48_DVLQDVT	51A
ROC1	W48_DVLQDVT	68D
ROC2	W48_DVLQDVT	68C
ROC3	W48_DVLQDVT	68A
ROC4	W48_DVLQDVT	67D
ROC5	W48_DVLQDVT	47B
ROC6	W48_DVLQDVT	47C
ROC7	W48_DVLQDVT	47D
ROC8	W48_DVLQDVT	48A
ROC9	W48_DVLQDVT	48C

Inspected by Lockwood Gale on date 6/21/2007

LR_dev 0.024

LL_dev 0.022

PLAQUETTE GLUED with FULL PRESSURE

FINAL COMMENT by Lockwood Gale

No assembly problems. ROC 4, Ch 33,34, ROC 1 Ch 2, No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 6/21/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/21/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 6/21/2007 by Ozhan Koybasi

P_2x5_049_Aon 6/22/2007 10:32 AM

PLAQUETTE TESTED on 2007-06-22 by Emily Grace

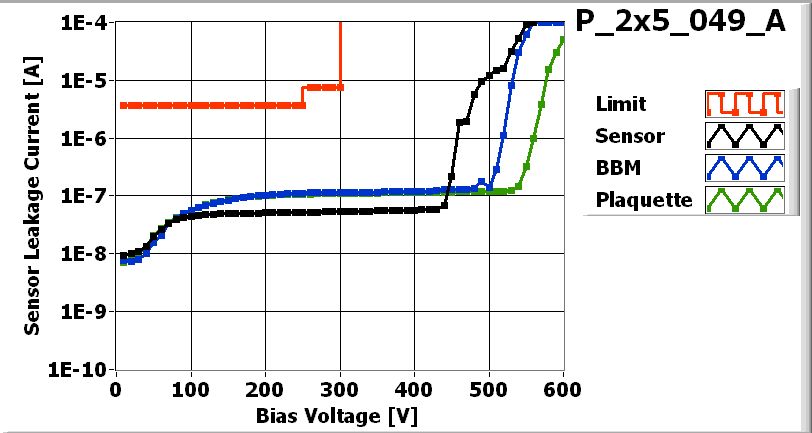

IV_XML-File

Maximum Voltage 600 V

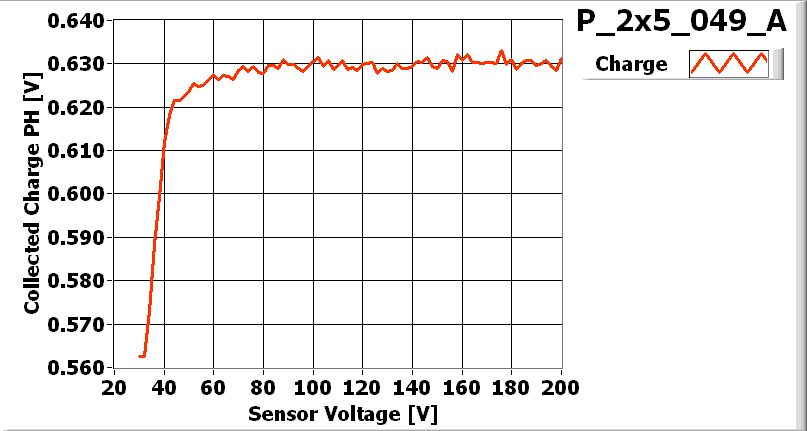

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

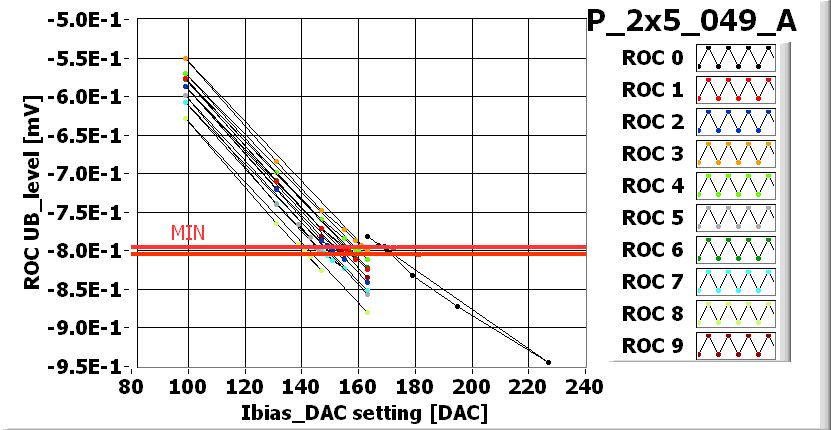

Ibias_DAC	170	156	150	162	160	146	156	148	142	154

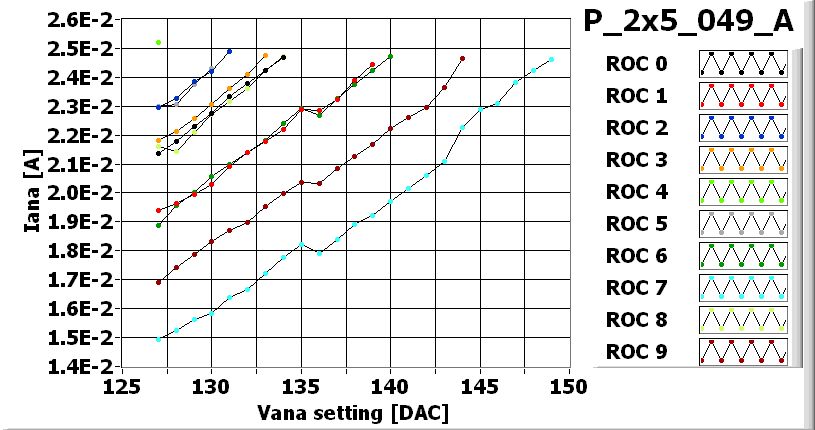

Vana	134	139	131	133	127	130	140	149	134	144
Cal_Del	78	91	90	84	89	84	82	92	88	79
Vthrs_Comp	85	86	78	90	79	89	85	85	90	89
Unbumped	0	0	0	0	0	0	0	0	0	2

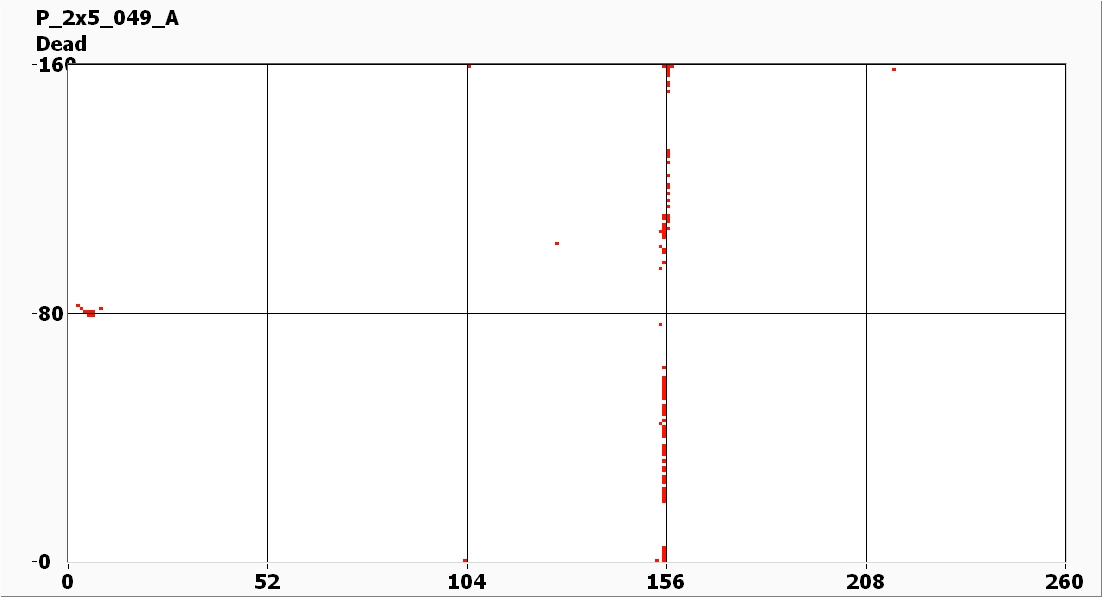

Dead	2	1	41	0	0	1	22	16	0	6
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	2	1	41	0	0	1	22	16	0	8

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	105	95	100	110	115	125	95	100	105	95
Vsf	140	135	140	140	135	140	145	150	140	145
VoffsetOp	105	100	95	100	90	90	100	110	110	110
VIbias_PH	100	105	105	95	105	105	95	105	105	95

Noise MAP at VMAX

Efficiency MAP

Noise MAP at -200 V

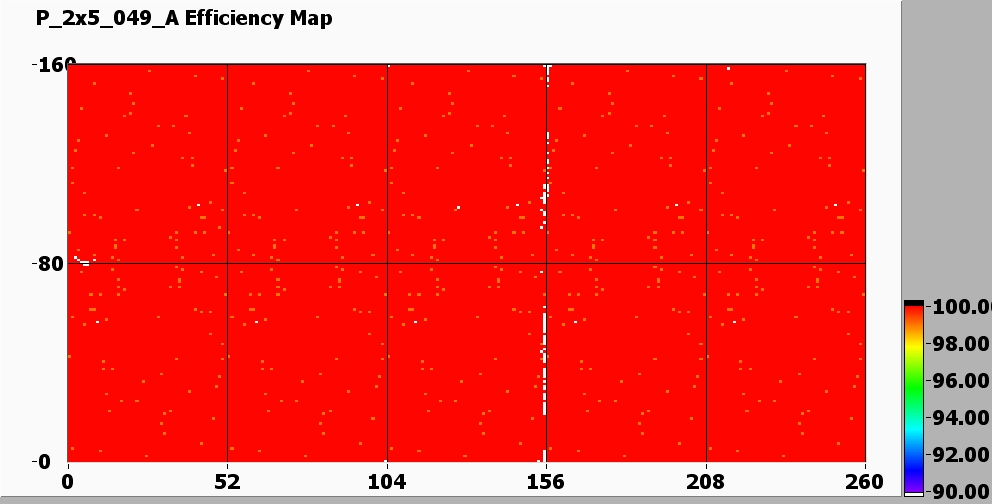

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-26
