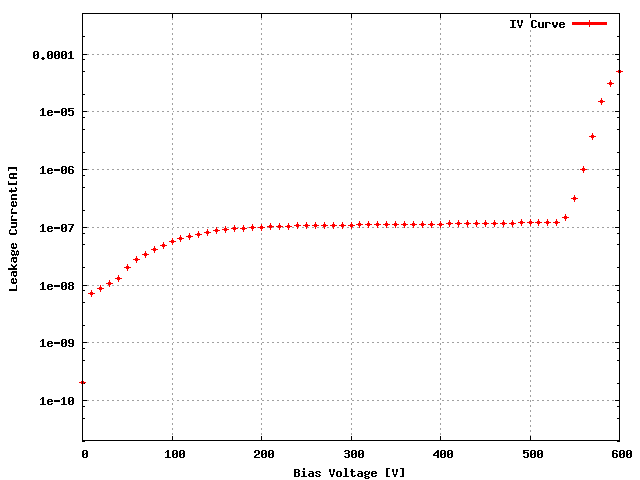

Sensor: S_2x5_049, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W48_DVLQDVT	51A
ROC1	W48_DVLQDVT	68D
ROC2	W48_DVLQDVT	68C
ROC3	W48_DVLQDVT	68A
ROC4	W48_DVLQDVT	67D
ROC5	W48_DVLQDVT	47B
ROC6	W48_DVLQDVT	47C
ROC7	W48_DVLQDVT	47D
ROC8	W48_DVLQDVT	48A
ROC9	W48_DVLQDVT	48C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	170	156	150	162	160	146	156	148	142	154
Vana, VanaData	134	139	131	133	127	130	140	149	134	144
CalDelData and plots	78	91	90	84	89	84	82	92	88	79
VthrCompData and plots	85	86	78	90	79	89	85	85	90	89
TestDdata ,TestD Plots	2	1	41	0	0	1	22	16	0	8
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	2
Pass/Fail TestD	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

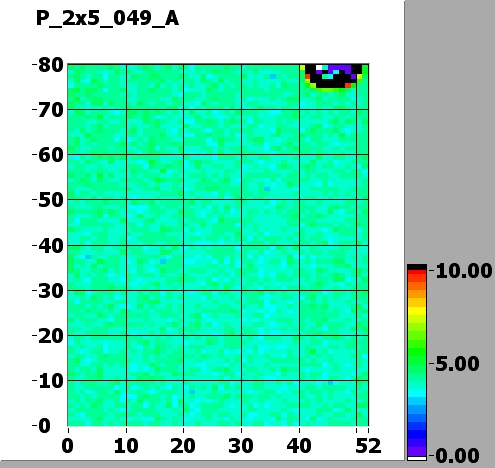

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.805669 SIGMA = 0.289897
ROC1 NOISE			MEAN = 4.233191 SIGMA = 0.346522
ROC2 NOISE			MEAN = 4.534724 SIGMA = 0.340131
ROC3 NOISE			MEAN = 4.028589 SIGMA = 0.312333

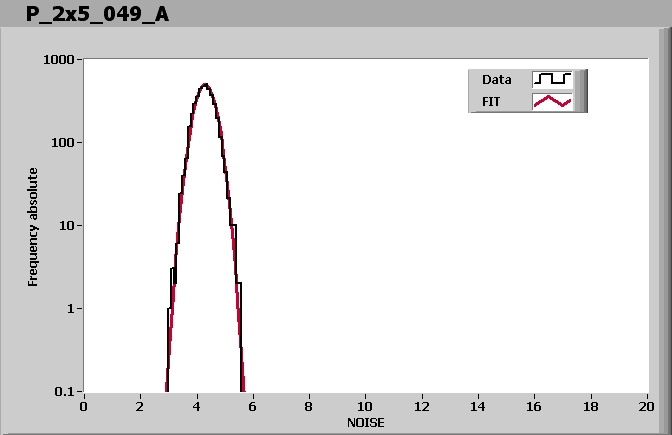

ROC4 NOISE			MEAN = 4.291504 SIGMA = 0.333705
ROC5 NOISE			MEAN = 4.537623 SIGMA = 0.362725

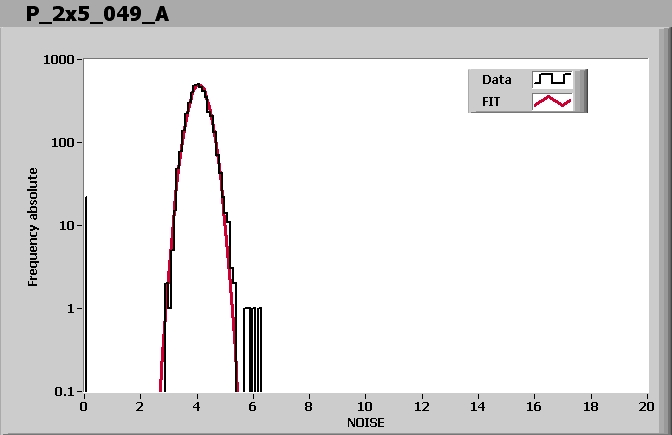

ROC6 NOISE			MEAN = 4.072120 SIGMA = 0.332992
ROC7 NOISE			MEAN = 4.387648 SIGMA = 0.345126
ROC8 NOISE			MEAN = 4.432713 SIGMA = 0.334360

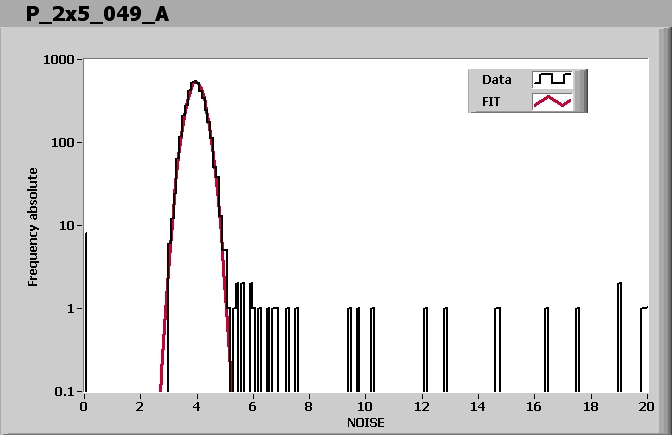

ROC9 NOISE			MEAN = 3.969507 SIGMA = 0.303920

Comment (if any):

End testing time: 11:03 AM
