![[IMAGE] of](P_2x5_046_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 580 V |
![[IMAGE] of](P_2x5_046_A_LASER.jpg)

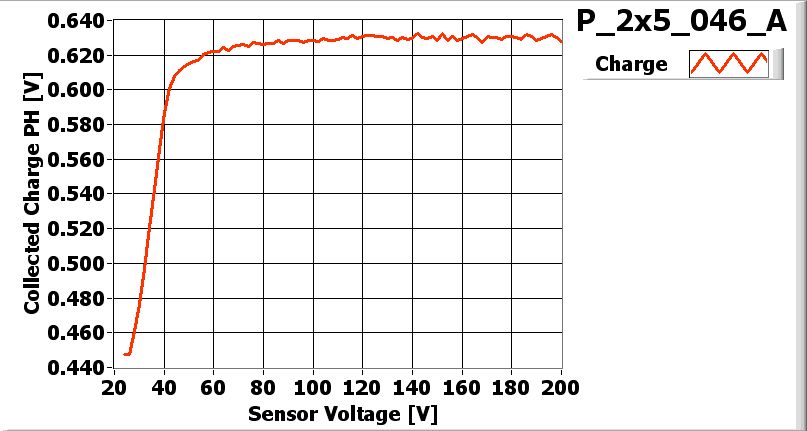

| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 6/14/2007
| Part | ID |
|---|---|
| BBM | BBM_046-2x5 |
| VHDI | 2x5_601 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 16D |
| ROC1 | W36_XD4K3LT | 16C |
| ROC2 | W36_XD4K3LT | 16B |
| ROC3 | W36_XD4K3LT | 16A |
| ROC4 | W48_DVLQDVT | 40D |
| ROC5 | W49_D1LQGST | 74B |
| ROC6 | W49_D1LQGST | 16A |
| ROC7 | W49_D1LQGST | 17A |
| ROC8 | W49_D1LQGST | 17B |
| ROC9 | W49_D1LQGST | 15D |
Inspected by Lockwood Gale on date 6/19/2007
| LR_dev | 0.024 |
| LL_dev | 0.025 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | no assembly problems ROC 1, Ch 26,27, ROC 8, CH 34,35, ROC 7 Ch 1,2 ROC 6 CH 24,1,2, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/19/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/19/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/19/2007 by Ozhan Koybasi
P_2x5_046_Aon 6/20/2007 9:48 AM
P_2x5_046_Aon 6/20/2007 9:48 AM
PLAQUETTE TESTED on 2007-06-20 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 152 | 142 | 172 | 162 | 164 | 146 | 158 | 158 | 144 | 150 | |
| Vana | 112 | 113 | 144 | 149 | 146 | 128 | 132 | 145 | 147 | 145 | |
| Cal_Del | 96 | 84 | 81 | 82 | 76 | 94 | 92 | 85 | 98 | 89 | |
| Vthrs_Comp | 75 | 68 | 80 | 84 | 86 | 77 | 79 | 87 | 79 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 8 | 1 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 4 | 8 | 1 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_046_A_Ibias-dac.jpg) |

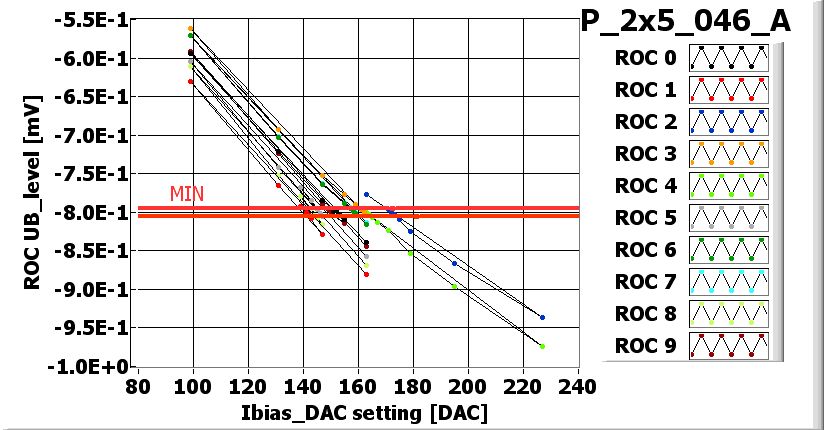

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_046_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_046_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_046_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_046_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_046_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 160 | 85 | 90 | 100 | 100 | 115 | 95 | 100 | 85 |
| Vsf | 135 | 140 | 145 | 145 | 145 | 140 | 140 | 145 | 150 | 150 |
| VoffsetOp | 60 | 65 | 110 | 80 | 100 | 90 | 105 | 115 | 85 | 110 |
| VIbias_PH | 100 | 100 | 100 | 105 | 105 | 100 | 100 | 100 | 100 | 95 |

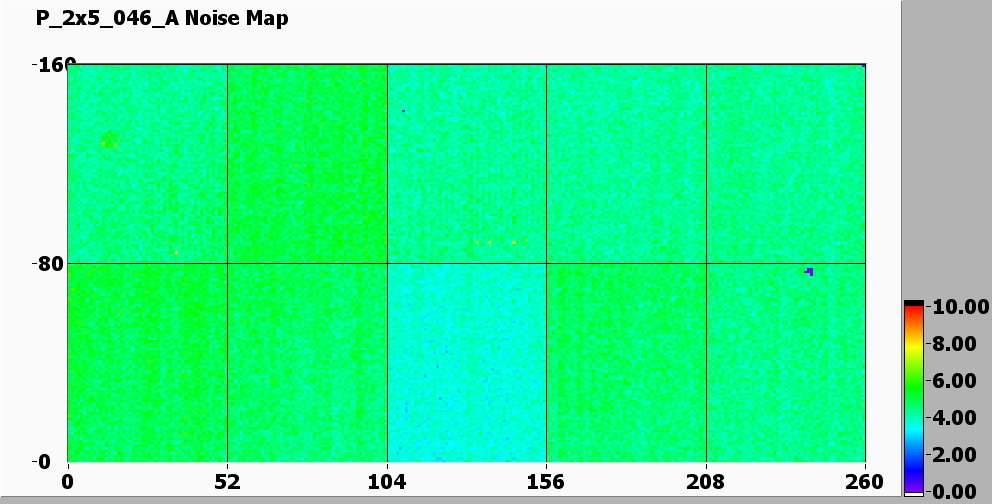

Noise MAP at VMAX
![[IMAGE] of](P_2x5_046_A-560-noise.jpg)

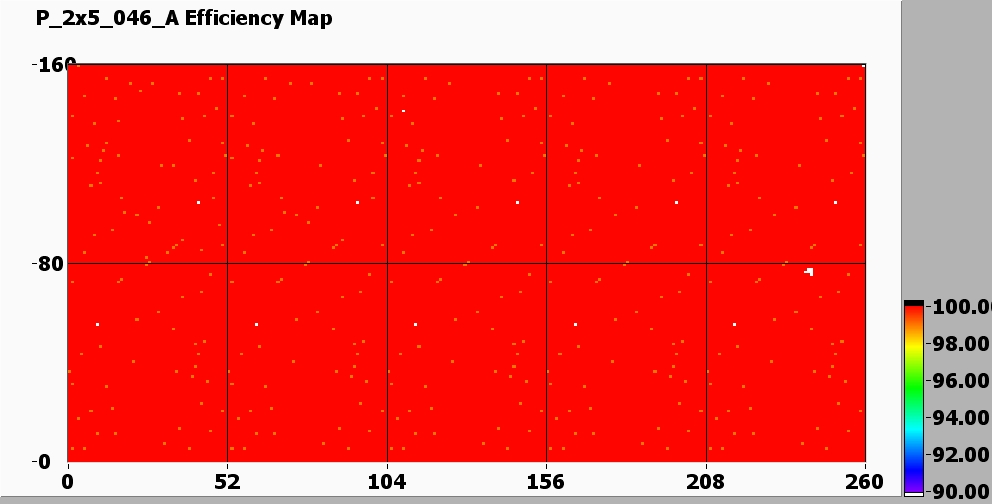

Efficiency MAP
![[IMAGE] of](P_2x5_046_A-560-efficiency.jpg)

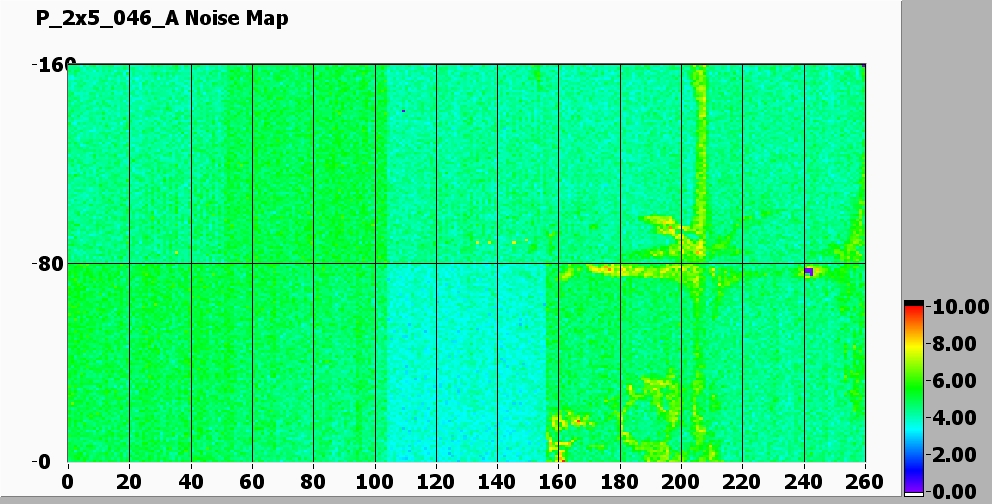

Noise MAP at -200 V
![[IMAGE] of](P_2x5_046_A-200-noise.jpg)

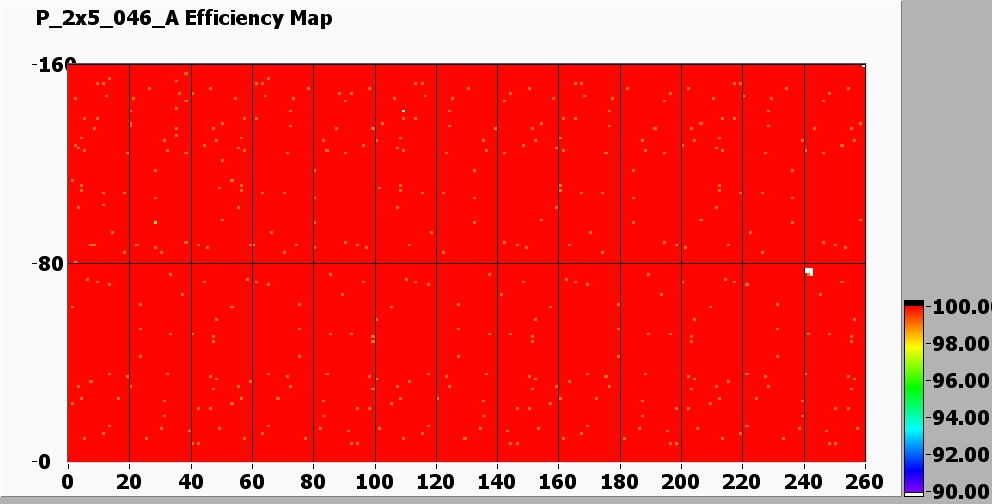

Efficiency MAP
![[IMAGE] of](P_2x5_046_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
