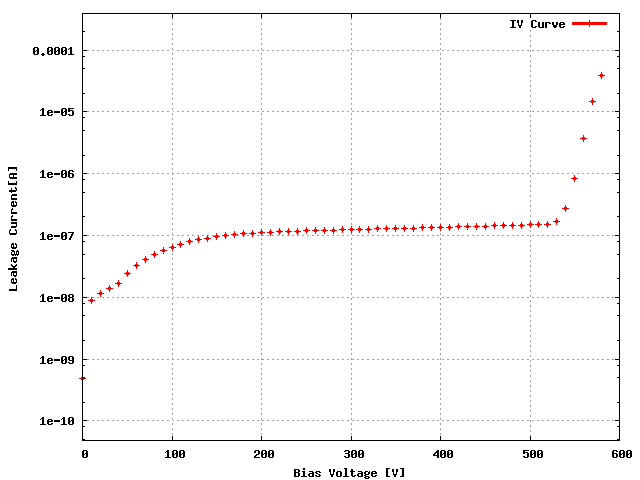

Sensor: S_2x5_046, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	16D
ROC1	W36_XD4K3LT	16C
ROC2	W36_XD4K3LT	16B
ROC3	W36_XD4K3LT	16A
ROC4	W48_DVLQDVT	40D
ROC5	W49_D1LQGST	74B
ROC6	W49_D1LQGST	16A
ROC7	W49_D1LQGST	17A
ROC8	W49_D1LQGST	17B
ROC9	W49_D1LQGST	15D

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	152	142	172	162	164	146	158	158	144	150
Vana, VanaData	112	113	144	149	146	128	132	145	147	145
CalDelData and plots	96	84	81	82	76	94	92	85	98	89
VthrCompData and plots	75	68	80	84	86	77	79	87	79	87
TestDdata ,TestD Plots	0	0	80	810	8	2	0	1	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.897798 SIGMA = 0.401284

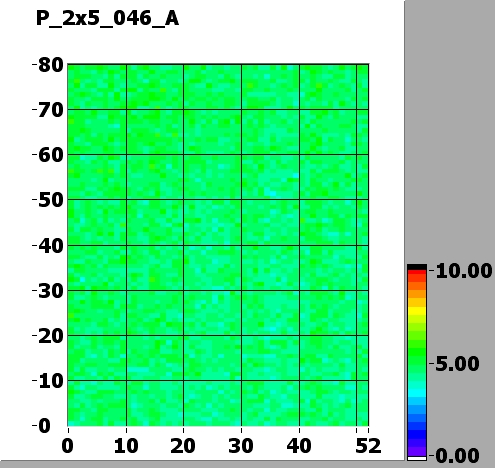

ROC1 NOISE			MEAN = 4.641047 SIGMA = 0.386586
ROC2 NOISE			MEAN = 3.679735 SIGMA = 0.283272

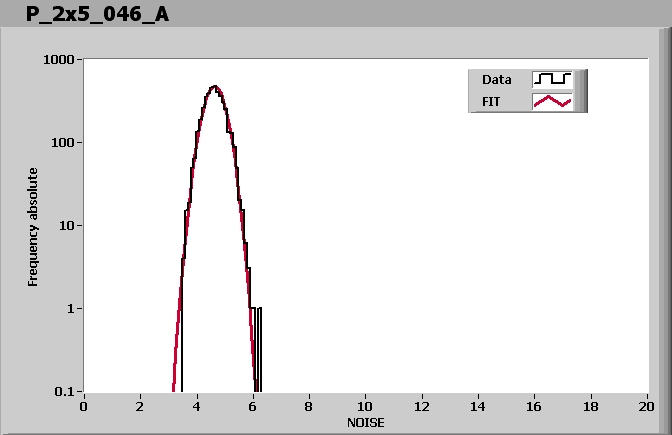

ROC3 NOISE			MEAN = 4.625698 SIGMA = 0.357445
ROC4 NOISE			MEAN = 4.371366 SIGMA = 0.346072
ROC5 NOISE			MEAN = 4.299816 SIGMA = 0.321565
ROC6 NOISE			MEAN = 4.231006 SIGMA = 0.329108

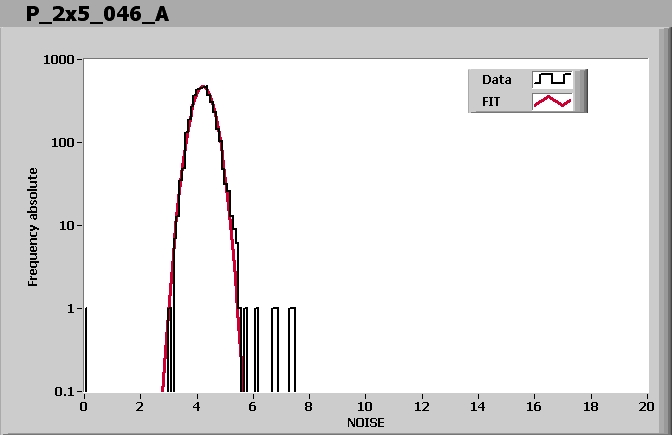

ROC7 NOISE			MEAN = 4.219981 SIGMA = 0.348010
ROC8 NOISE			MEAN = 4.914953 SIGMA = 0.396348

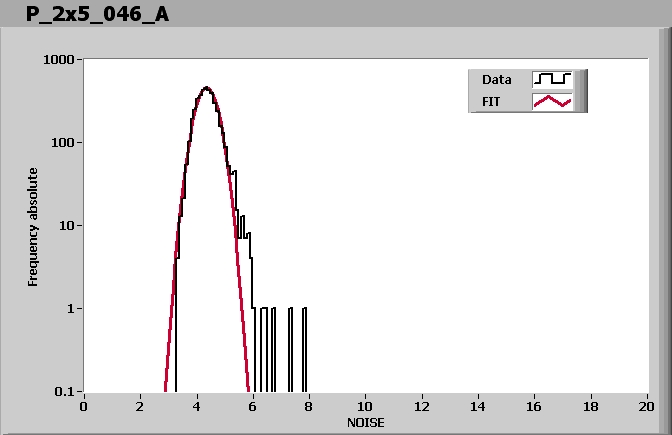

ROC9 NOISE			MEAN = 4.344805 SIGMA = 0.357614

Comment (if any):

End testing time: 10:19 AM
