![[IMAGE] of](P_2x5_045_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 290 V |

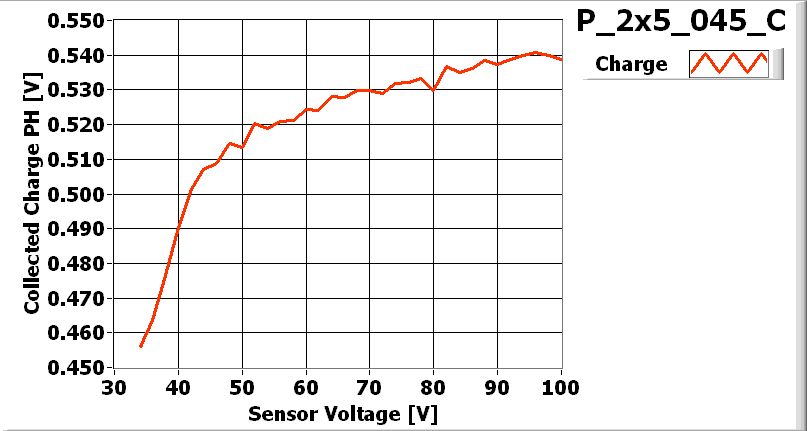

![[IMAGE] of](P_2x5_045_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/23/2007
| Part | ID |
|---|---|
| BBM | BBM_045-2x5 |
| VHDI | 2x5_279 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 57D |
| ROC1 | XE4K3KT | 58C |
| ROC2 | XE4K3KT | 58D |
| ROC3 | XE4K3KT | 51A |
| ROC4 | XE4K3KT | 53B |
| ROC5 | XE4K3KT | 57A |
| ROC6 | XE4K3KT | 57B |
| ROC7 | XE4K3KT | 64C |
| ROC8 | XE4K3KT | 54B |
| ROC9 | XE4K3KT | 54A |
Inspected by Lockwood Gale on date 5/2/2007
| LR_dev | 0.037 |
| LL_dev | 0.044 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/2/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/4/2007 by Ozhan Koybasi
P_2x5_045_Con 5/4/2007 4:18 PM
P_2x5_045_Con 5/4/2007 4:18 PM
PLAQUETTE TESTED on 2007-05-04 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 130 | 130 | 152 | 138 | 132 | 134 | 124 | 130 | 134 | 138 | |
| Vana | 121 | 130 | 151 | 129 | 128 | 130 | 126 | 125 | 127 | 139 | |
| Cal_Del | 94 | 98 | 74 | 89 | 78 | 86 | 93 | 101 | 70 | 93 | |
| Vthrs_Comp | 62 | 72 | 83 | 62 | 73 | 82 | 58 | 74 | 69 | 70 | |
| Unbumped | 2 | 3 | 1 | 2 | 0 | 11 | 4 | 2 | 2 | 4 | |
| Dead | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 4 | |
| Noisy | 0 | 0 | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 4 | 3 | 4 | 2 | 0 | 11 | 4 | 2 | 2 | 8 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

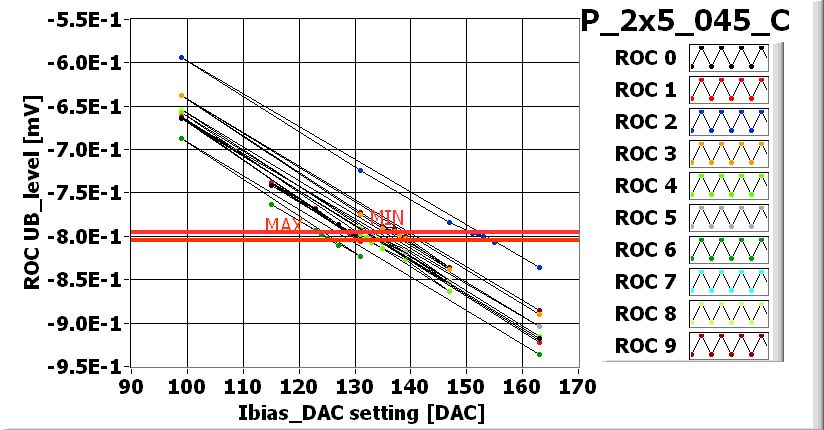

![[IMAGE] of](P_2x5_045_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_045_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_045_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_045_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_045_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_045_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 135 | 100 | 100 | 115 | 115 | 120 | 120 | 120 | 100 |
| Vsf | 140 | 140 | 150 | 140 | 140 | 135 | 140 | 135 | 140 | 140 |
| VoffsetOp | 65 | 75 | 135 | 70 | 55 | 65 | 55 | 65 | 70 | 85 |
| VIbias_PH | 95 | 110 | 100 | 100 | 100 | 100 | 95 | 105 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_045_C-270-noise.jpg)

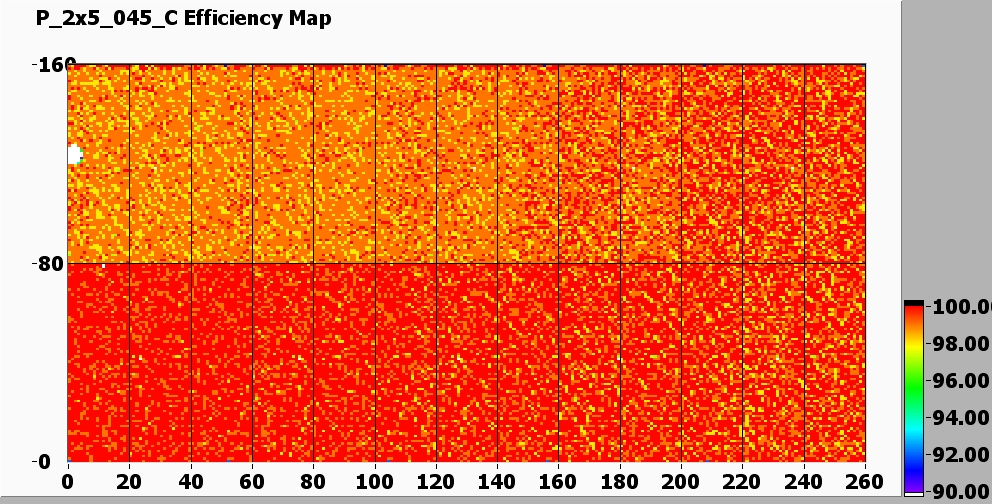

Efficiency MAP
![[IMAGE] of](P_2x5_045_C-270-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
