P_2x5_043

P_2x5_043_A

Parts committed by Bolla Gino on date 10/29/2006

Part	ID
BBM	BBM_043-2x5
VHDI	2x5_233

ROC ROC wafer Label

ROC0 W18_XJ4KT3FT 67A

ROC1 W18_XJ4KT3FT 66D

ROC2 W18_XJ4KT3FT 66C

ROC3 W18_XJ4KT3FT 66B

ROC4 W18_XJ4KT3FT 66A

ROC5 W18_XJ4KT3FT 44A

ROC6 W18_XJ4KT3FT 44B

ROC7 W18_XJ4KT3FT 44C

ROC8 W18_XJ4KT3FT 44D

ROC9 W18_XJ4KT3FT 45A

ROC	ROC wafer	Label
ROC0	W18_XJ4KT3FT	67A
ROC1	W18_XJ4KT3FT	66D
ROC2	W18_XJ4KT3FT	66C
ROC3	W18_XJ4KT3FT	66B
ROC4	W18_XJ4KT3FT	66A
ROC5	W18_XJ4KT3FT	44A
ROC6	W18_XJ4KT3FT	44B
ROC7	W18_XJ4KT3FT	44C
ROC8	W18_XJ4KT3FT	44D
ROC9	W18_XJ4KT3FT	45A

Inspected by Arndt Kirk on date 10/31/2006

LR_dev 0.033

LL_dev 0.047

FINAL COMMENT by Arndt Kirk No assembly problem. No ROC-VHDI wirebond problem. A few repairs required on FOM-VHDI wires due to missed 1st bonds.

PLAQUETTE made READY for testing on 10/31/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-01 by Gino Bolla

IV_XML-File

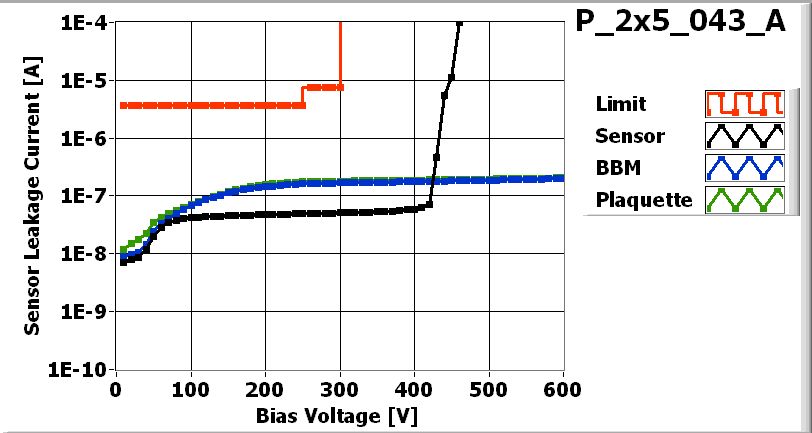

Maximum Voltage 600 V

LASER_XML-File

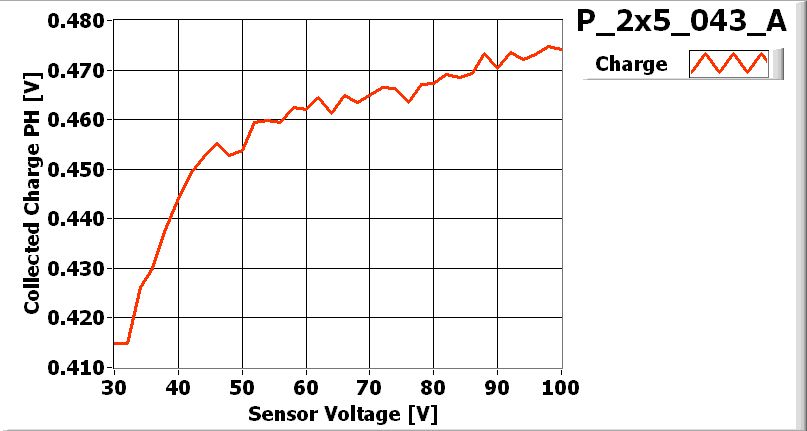

Depletion Voltage 48 V

Operational Voltage 88 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

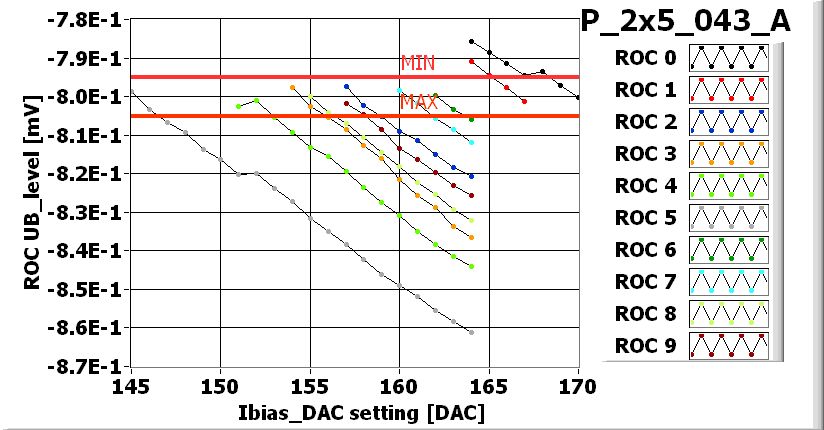

Ibias_DAC	170	167	157	154	151	145	162	160	155	157

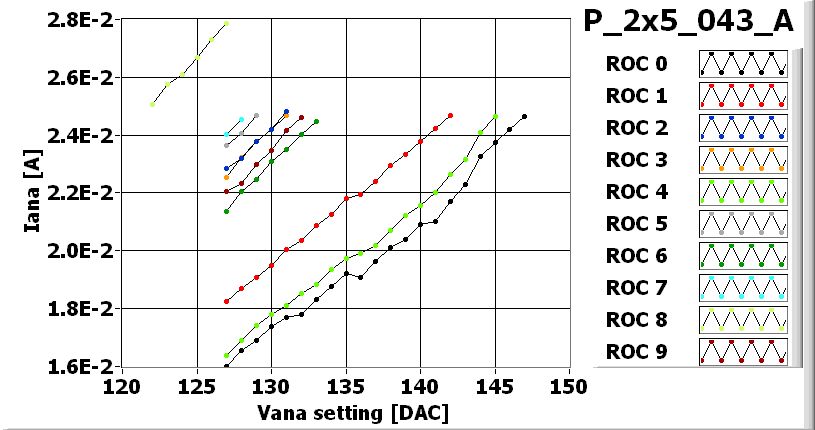

Vana	147	142	131	131	145	129	133	128	122	132
Cal_Del	76	86	89	86	86	84	89	91	87	92
Vthrs_Comp	86	86	81	80	86	74	76	79	72	64
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-01

Plaquette assigned to panel P3R_005
