![[IMAGE] of](P_2x5_034_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

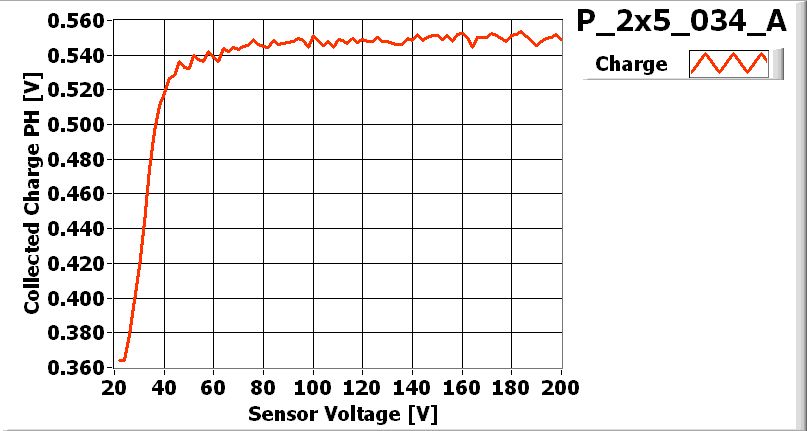

![[IMAGE] of](P_2x5_034_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Arndt Kirk on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_034-2x5 |
| VHDI | 2x5_340 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 16D |
| ROC1 | W35_XH4K3HT | 16C |
| ROC2 | W35_XH4K3HT | 16B |
| ROC3 | W35_XH4K3HT | 15D |
| ROC4 | W35_XH4K3HT | 15C |
| ROC5 | W49_D1LQG5T | 26B |
| ROC6 | W49_D1LQG5T | 26C |
| ROC7 | W49_D1LQG5T | 26D |
| ROC8 | W49_D1LQG5T | 27B |
| ROC9 | W49_D1LQG5T | 27D |
Inspected by Lockwood Gale on date 5/23/2007
| LR_dev | 0.040 |
| LL_dev | 0.041 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/23/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/23/2007 by Perera Rajiv
P_2x5_034_Aon 5/24/2007 4:21 PM
P_2x5_034_Aon 5/24/2007 4:21 PM
PLAQUETTE TESTED on 2007-05-24 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 140 | 148 | 148 | 154 | 160 | 150 | 154 | 138 | 144 | 162 | |
| Vana | 126 | 133 | 131 | 116 | 128 | 131 | 149 | 129 | 142 | 153 | |
| Cal_Del | 87 | 73 | 82 | 87 | 75 | 88 | 93 | 102 | 84 | 92 | |
| Vthrs_Comp | 68 | 78 | 73 | 71 | 72 | 85 | 85 | 77 | 79 | 86 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 3 | 3 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 4 | 3 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_034_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

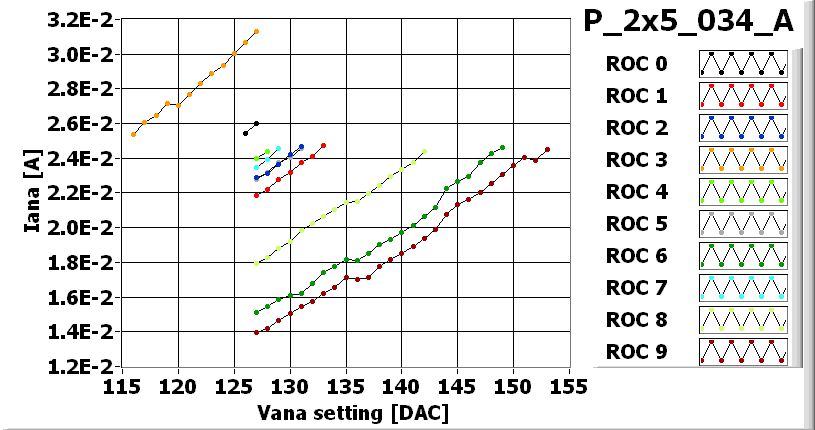

![[IMAGE] of](P_2x5_034_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_034_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_034_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_034_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_034_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 110 | 115 | 135 | 120 | 90 | 100 | 105 | 90 | 95 |
| Vsf | 130 | 140 | 140 | 130 | 140 | 140 | 150 | 140 | 150 | 155 |
| VoffsetOp | 50 | 75 | 80 | 50 | 75 | 95 | 110 | 70 | 100 | 105 |
| VIbias_PH | 100 | 95 | 100 | 100 | 105 | 95 | 100 | 105 | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_034_A-580-noise.jpg)

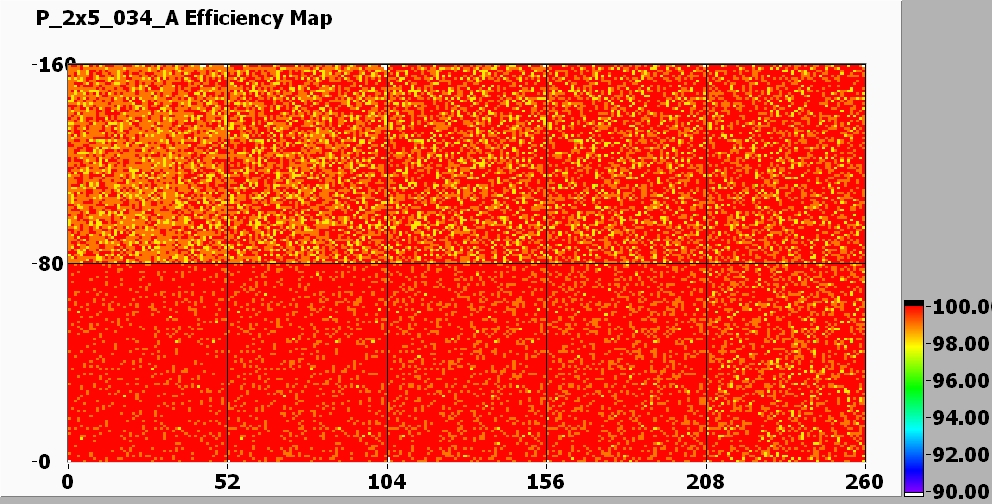

Efficiency MAP
![[IMAGE] of](P_2x5_034_A-580-efficiency.jpg)

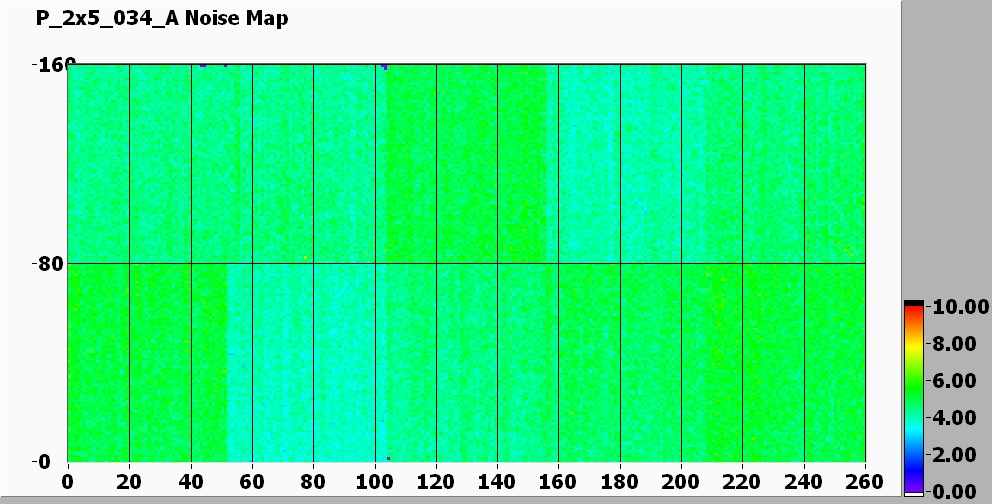

Noise MAP at -200 V
![[IMAGE] of](P_2x5_034_A-200-noise.jpg)

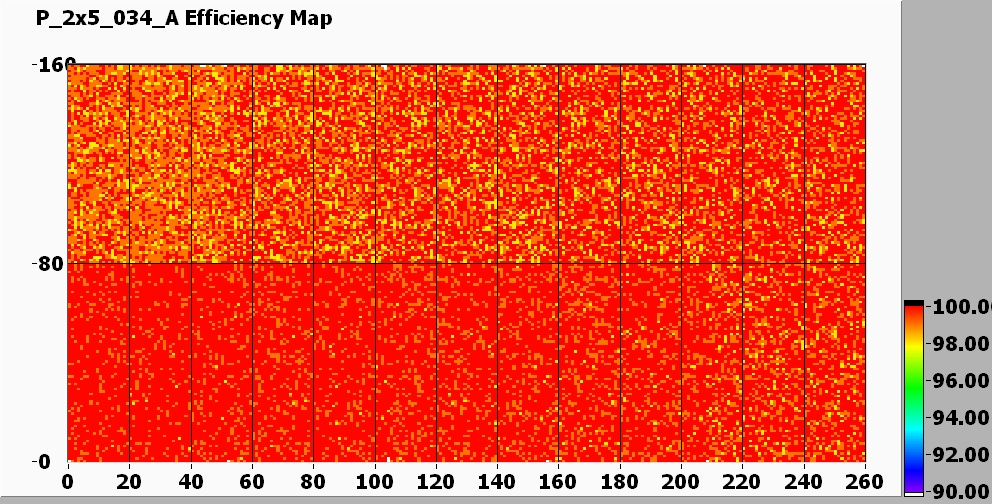

Efficiency MAP
![[IMAGE] of](P_2x5_034_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
