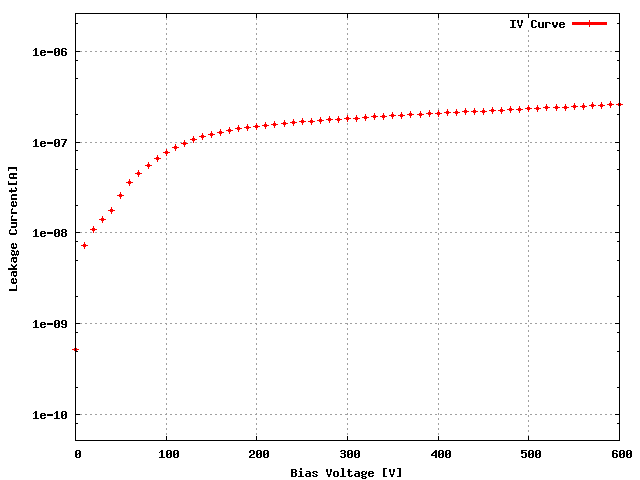

Sensor: S_2x5_034, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	16D
ROC1	W35_XH4K3HT	16C
ROC2	W35_XH4K3HT	16B
ROC3	W35_XH4K3HT	15D
ROC4	W35_XH4K3HT	15C
ROC5	W49_D1LQG5T	26B
ROC6	W49_D1LQG5T	26C
ROC7	W49_D1LQG5T	26D
ROC8	W49_D1LQG5T	27B
ROC9	W49_D1LQG5T	27D

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	140	148	148	154	160	150	154	138	144	162
Vana, VanaData	126	133	131	116	128	131	149	129	142	153
CalDelData and plots	87	73	82	87	75	88	93	102	84	92
VthrCompData and plots	68	78	73	71	72	85	85	77	79	86
TestDdata ,TestD Plots	4	1	1	1	0	0	0	0	3	3
LightData ,Light Plots	0	0	0	0	0	0	0	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.998802 SIGMA = 0.399310
ROC1 NOISE			MEAN = 3.907832 SIGMA = 0.324388
ROC2 NOISE			MEAN = 4.425228 SIGMA = 0.373110
ROC3 NOISE			MEAN = 4.746213 SIGMA = 0.407554
ROC4 NOISE			MEAN = 5.042265 SIGMA = 0.431967
ROC5 NOISE			MEAN = 4.535480 SIGMA = 0.359857
ROC6 NOISE			MEAN = 4.043418 SIGMA = 0.328599
ROC7 NOISE			MEAN = 4.934293 SIGMA = 0.371255
ROC8 NOISE			MEAN = 4.343398 SIGMA = 0.365070
ROC9 NOISE			MEAN = 4.365635 SIGMA = 0.322534

Comment (if any):

End testing time: 4:50 PM
