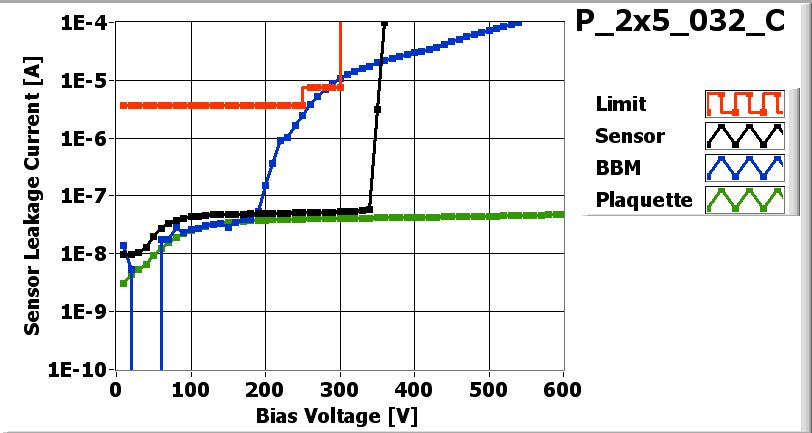

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_032_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_032-2x5 |
| VHDI | 2x5_415 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 57D |
| ROC1 | XW4KFXT | 56D |
| ROC2 | XW4KFXT | 55D |
| ROC3 | XW4KFXT | 55C |
| ROC4 | XW4KFXT | 54D |
| ROC5 | XW4KFXT | 53D |
| ROC6 | XW4KFXT | 44B |
| ROC7 | XW4KFXT | 43B |
| ROC8 | XW4KFXT | 43A |
| ROC9 | XW4KFXT | 41A |
Inspected by Lockwood Gale on date 4/13/2007
| LR_dev | 0.037 |
| LL_dev | 0.035 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/13/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi
PLAQUETTE TESTED on 2007-04-16 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 138 | 124 | 130 | 142 | 138 | 138 | 122 | 144 | 140 | 138 | |
| Vana | 125 | 124 | 138 | 134 | 137 | 141 | 132 | 144 | 131 | 131 | |
| Cal_Del | 102 | 88 | 92 | 79 | 81 | 80 | 96 | 77 | 91 | 97 | |
| Vthrs_Comp | 69 | 64 | 73 | 79 | 81 | 80 | 67 | 78 | 70 | 68 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 2 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

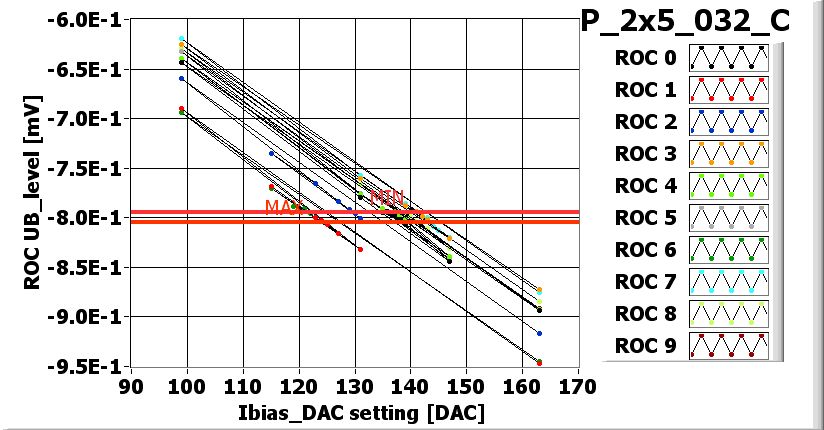

![[IMAGE] of](P_2x5_032_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

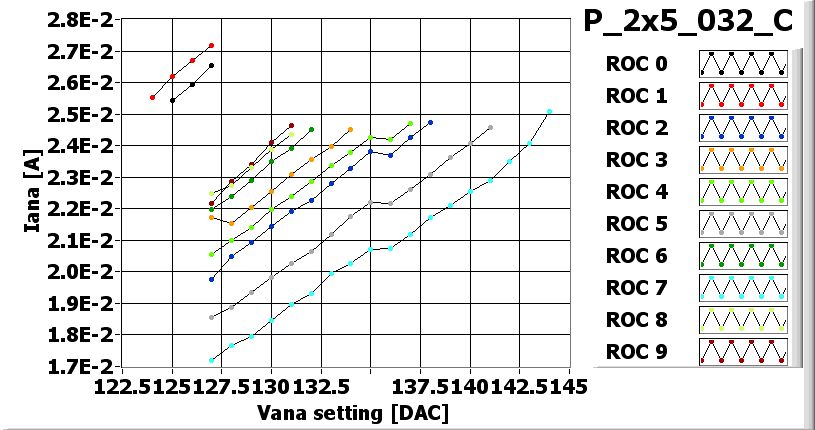

![[IMAGE] of](P_2x5_032_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_032_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_032_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_032_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_032_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 150 | 150 | 115 | 135 | 110 | 105 | 100 | 110 | 105 | 110 |
| Vsf | 135 | 135 | 140 | 140 | 140 | 140 | 140 | 140 | 135 | 140 |
| VoffsetOp | 70 | 60 | 65 | 90 | 90 | 85 | 65 | 90 | 70 | 80 |
| VIbias_PH | 100 | 95 | 100 | 105 | 100 | 100 | 100 | 95 | 105 | 95 |

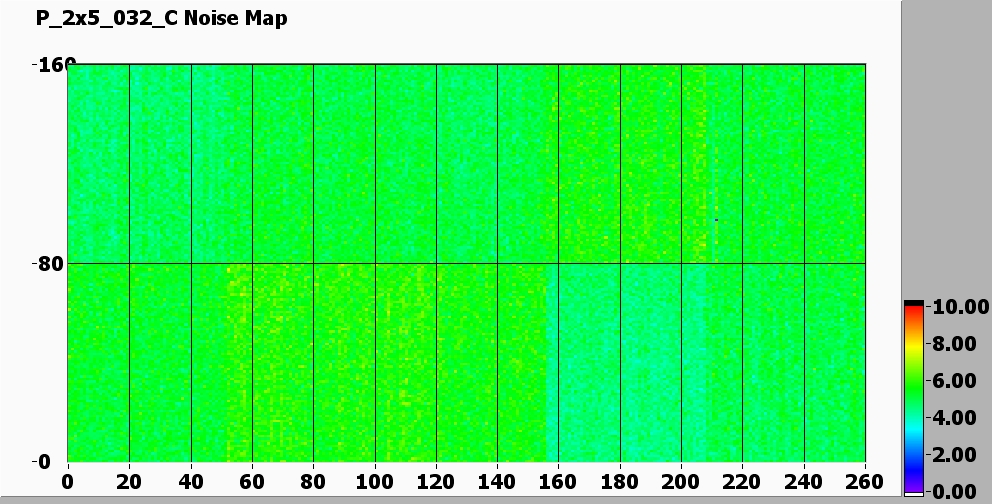

Noise MAP
![[IMAGE] of](P_2x5_032_C-580-noise.jpg)

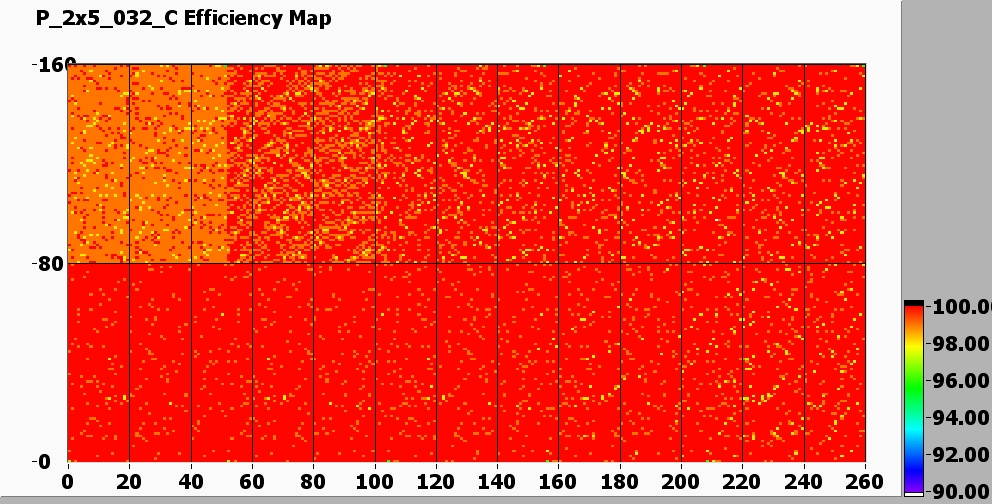

Efficiency MAP
![[IMAGE] of](P_2x5_032_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
