Sensor: S_2x5_032, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XW4KFXT	57D
ROC1	XW4KFXT	56D
ROC2	XW4KFXT	55D
ROC3	XW4KFXT	55C
ROC4	XW4KFXT	54D
ROC5	XW4KFXT	53D
ROC6	XW4KFXT	44B
ROC7	XW4KFXT	43B
ROC8	XW4KFXT	43A
ROC9	XW4KFXT	41A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	138	124	130	142	138	138	122	144	140	138
Vana, VanaData	125	124	138	134	137	141	132	144	131	131
CalDelData and plots	102	88	92	79	81	80	96	77	91	97
VthrCompData and plots	69	64	73	79	81	80	67	78	70	68
TestDdata ,TestD Plots	0	0	0	0	0	1	1	2	0	0
LightData ,Light Plots	1	0	0	0	0	0	1	2	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 5.225220 SIGMA = 0.395121

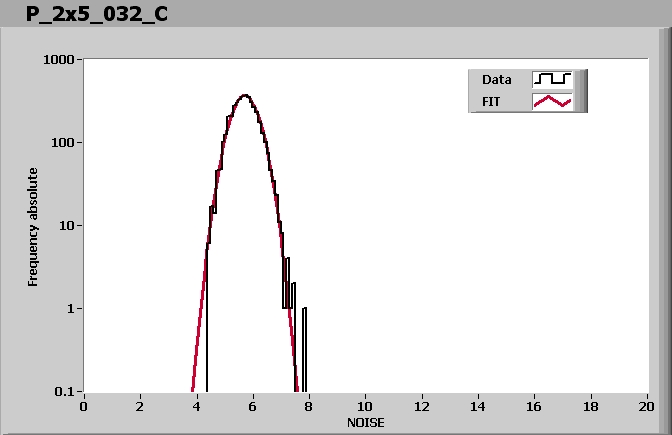

ROC1 NOISE			MEAN = 5.701425 SIGMA = 0.456561
ROC2 NOISE			MEAN = 5.599481 SIGMA = 0.432001

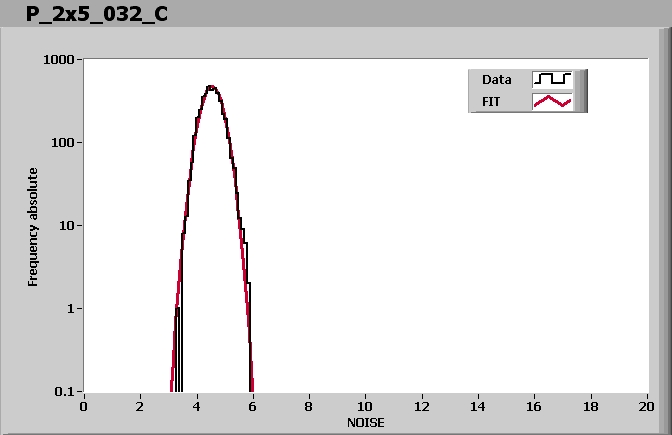

ROC3 NOISE			MEAN = 4.536354 SIGMA = 0.355336

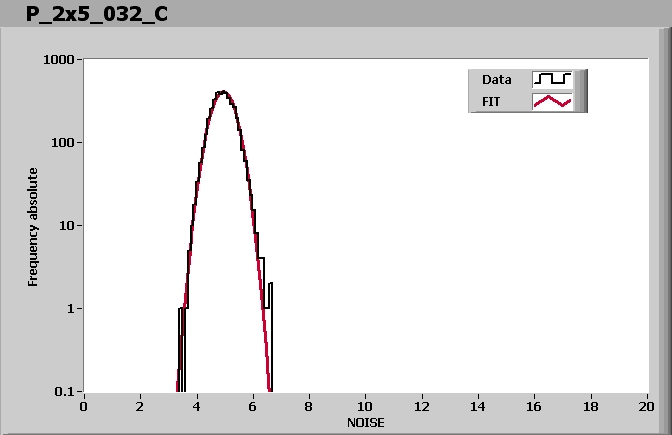

ROC4 NOISE			MEAN = 4.940047 SIGMA = 0.400264

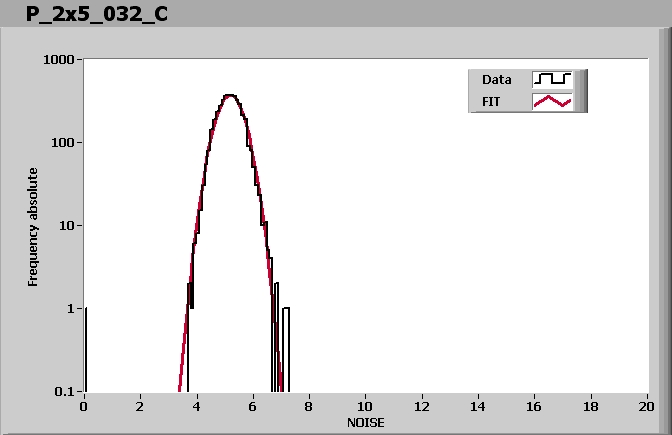

ROC5 NOISE			MEAN = 5.187130 SIGMA = 0.445597
ROC6 NOISE			MEAN = 5.558635 SIGMA = 0.454975

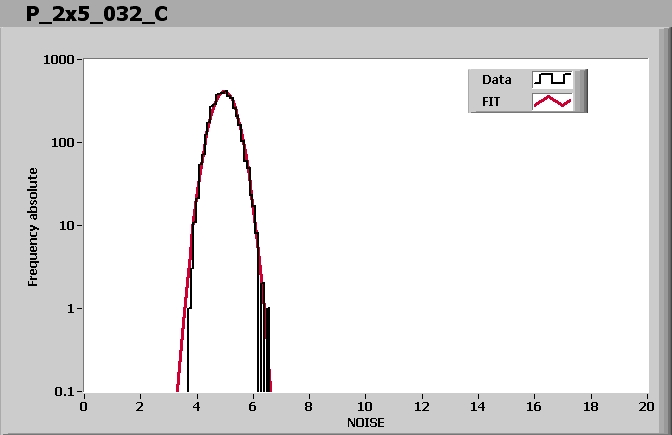

ROC7 NOISE			MEAN = 4.971712 SIGMA = 0.406409

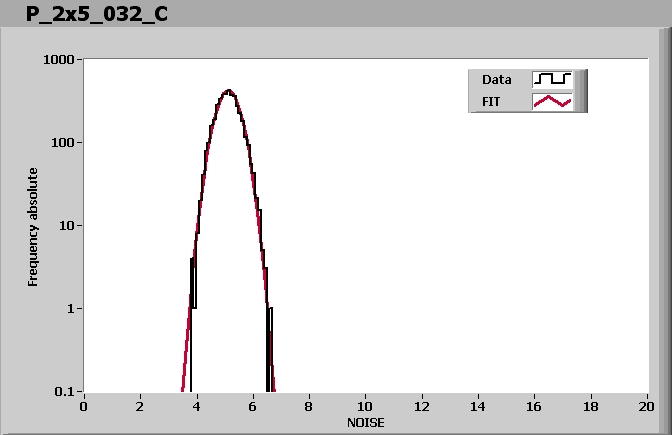

ROC8 NOISE			MEAN = 5.113675 SIGMA = 0.397852
ROC9 NOISE			MEAN = 4.738779 SIGMA = 0.390325

Comment (if any):

End testing time: 10:13 AM
