P_2x5_024

P_2x5_024_C

Parts committed by Bolla Gino on date 4/24/2007

Part	ID
BBM	BBM_024-2x5
VHDI	2x5_280

ROC ROC wafer Label

ROC0 X94KFJT 41C

ROC1 X94KFJT 32A

ROC2 X94KFJT 31B

ROC3 X94KFJT 31A

ROC4 X94KFJT 30B

ROC5 X94KFJT 41D

ROC6 X94KFJT 42C

ROC7 X94KFJT 41B

ROC8 X94KFJT 52C

ROC9 DWLQFTT 14D

ROC	ROC wafer	Label
ROC0	X94KFJT	41C
ROC1	X94KFJT	32A
ROC2	X94KFJT	31B
ROC3	X94KFJT	31A
ROC4	X94KFJT	30B
ROC5	X94KFJT	41D
ROC6	X94KFJT	42C
ROC7	X94KFJT	41B
ROC8	X94KFJT	52C
ROC9	DWLQFTT	14D

Inspected by Lockwood Gale on date 4/27/2007

LR_dev 0.068

LL_dev 0.069

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. Bond pads on VHDI has minor delamination . No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/27/2007 by Lockwood Gale

PLAQUETTE encapsulated on 5/1/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 5/1/2007 by Ozhan Koybasi

P_2x5_024_Con 5/2/2007 10:51 AM

PLAQUETTE TESTED on 2007-05-02 by Isaac Childres

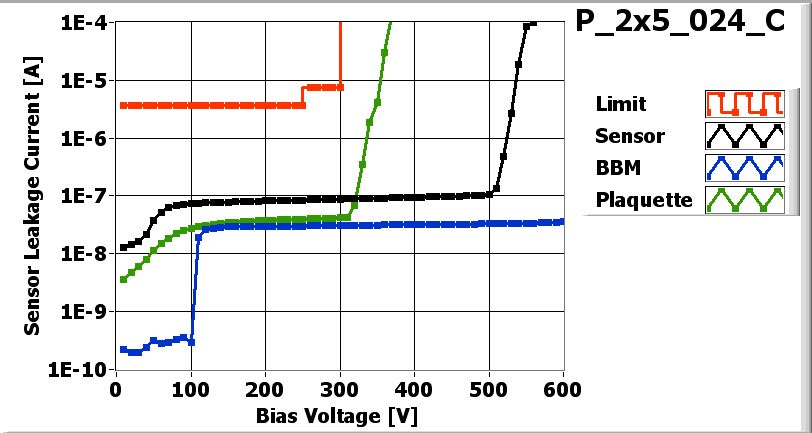

IV_XML-File

Maximum Voltage 370 V

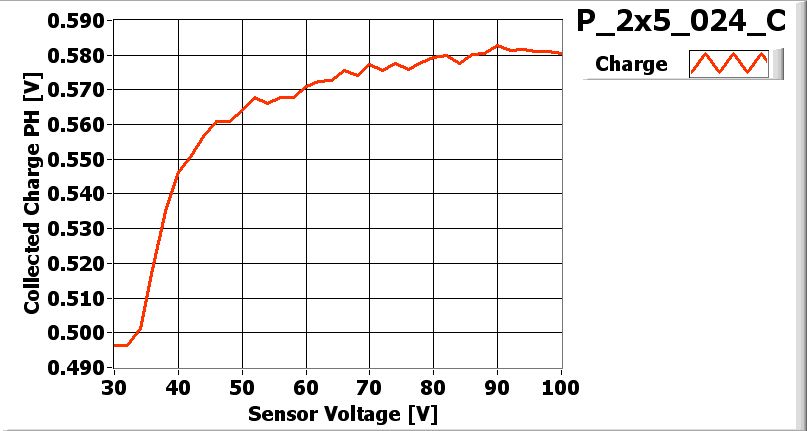

LASER_XML-File

Depletion Voltage 48 V

Operational Voltage 88 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	136	158	144	134	138	150	146	152	142	142
Vana	107	140	139	146	127	135	154	135	126	146
Cal_Del	100	75	90	77	84	95	83	87	91	97
Vthrs_Comp	76	78	83	93	72	70	89	83	72	86
Unbumped	2	4	4153	4157	4158	4157	4157	4128	50	0
Dead	0	28	5	2	1	2	2	4	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	2	32	4158	4159	4159	4159	4159	4132	50	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

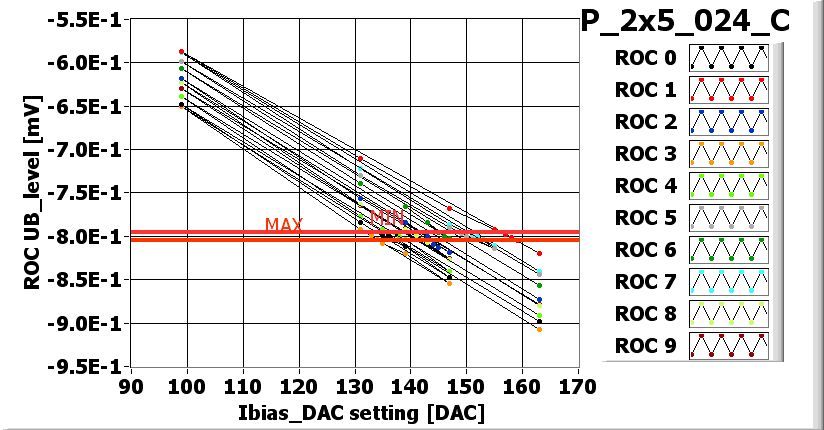

	I_BIAS_DAC_XML-File

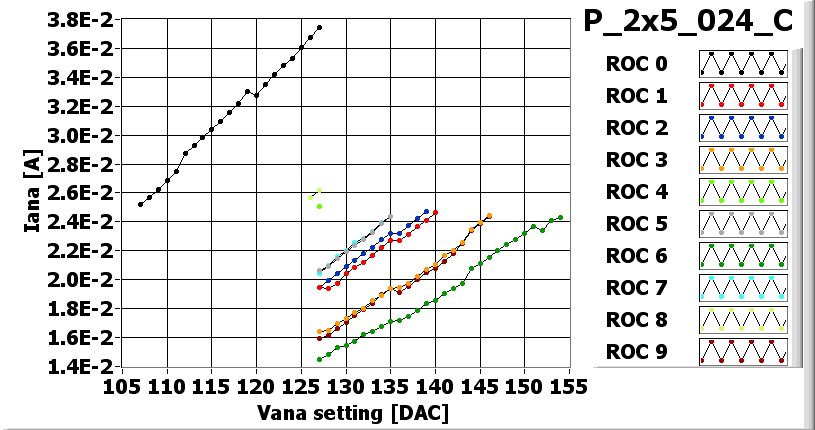

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

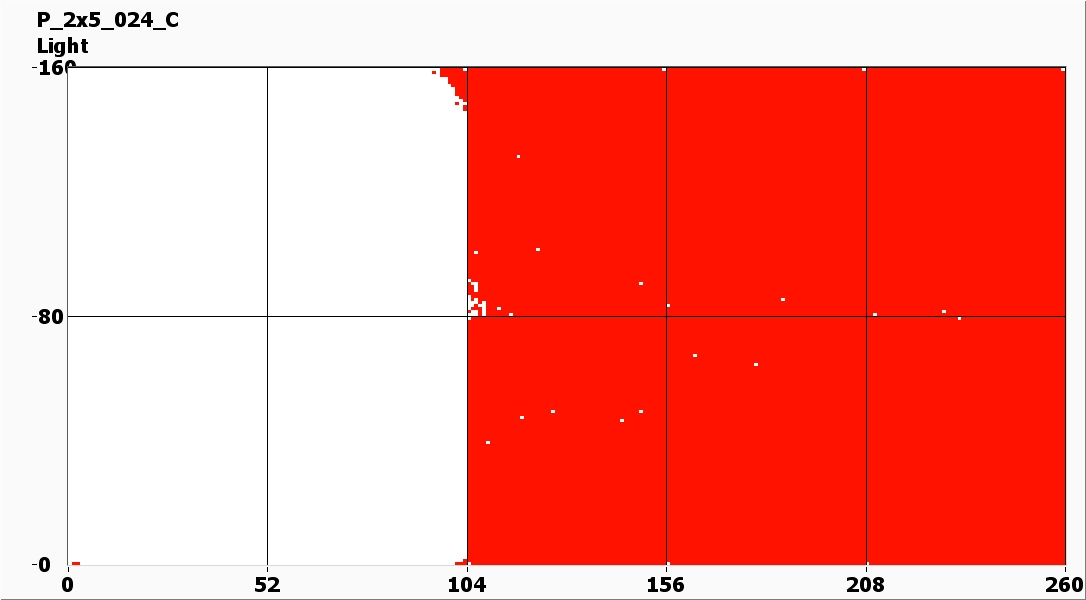

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	165	105	130	110	125	120	0	100	130	95
Vsf	140	140	145	140	140	145	0	140	140	150
VoffsetOp	80	130	80	100	65	85	135	90	65	115
VIbias_PH	95	100	100	100	95	100	105	100	105	100

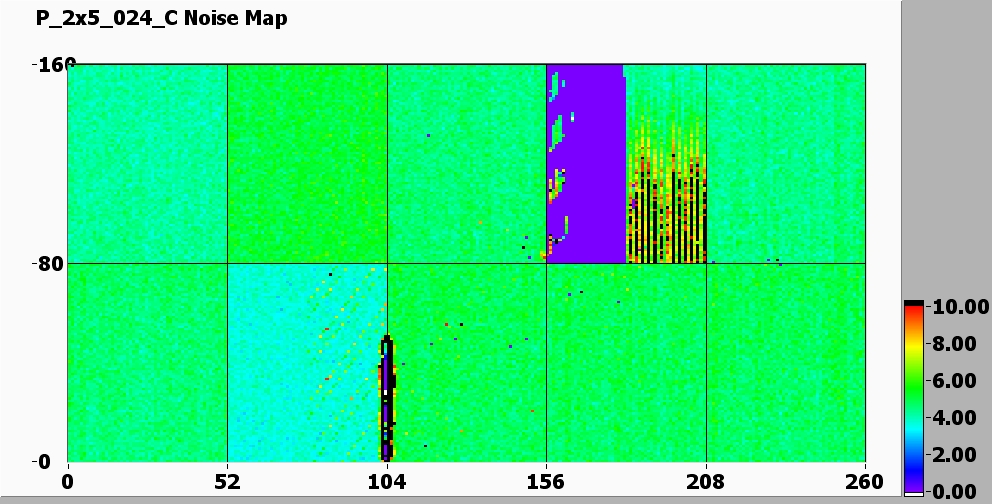

Noise MAP

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED
