![[IMAGE] of](P_2x5_019_A_IV.jpg)

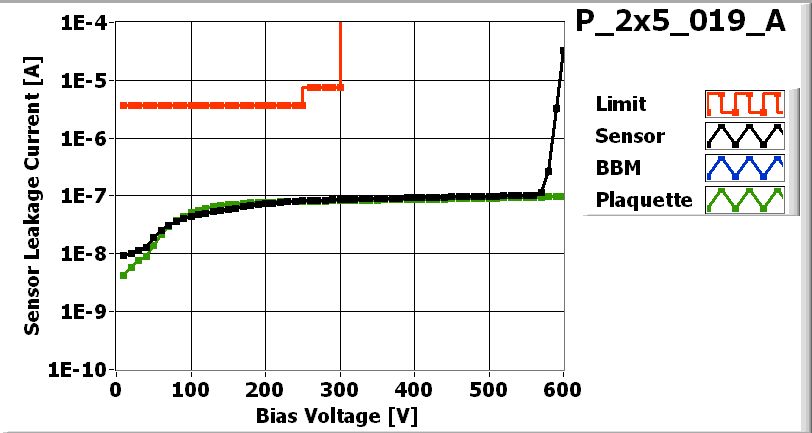

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_019_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 11/19/2007
| Part | ID |
|---|---|
| BBM | BBM_019-2x5 |
| VHDI | 2x5_716 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQG9T | 74D |
| ROC1 | W53_DXLQG9T | 74C |
| ROC2 | W53_DXLQG9T | 74B |
| ROC3 | W53_DXLQG9T | 73D |
| ROC4 | W53_DXLQG9T | 73A |
| ROC5 | W53_DXLQG9T | 42D |
| ROC6 | W53_DXLQG9T | 43A |
| ROC7 | W53_DXLQG9T | 43B |
| ROC8 | W53_DXLQG9T | 43D |
| ROC9 | W53_DXLQG9T | 44A |
Inspected by Lockwood Gale on date 11/27/2007
| LR_dev | 0.052 |
| LL_dev | 0.044 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 6, Ch 34,22,25 2 FL, 3 tries, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/28/2007 by Ozhan Koybasi
P_2x5_019_Aon 11/30/2007 11:47 AM
P_2x5_019_Aon 11/30/2007 11:47 AM
PLAQUETTE TESTED on 2007-11-30 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 148 | 146 | 144 | 164 | 126 | 144 | 160 | 146 | 160 | 150 | |
| Vana | 145 | 128 | 131 | 144 | 124 | 147 | 137 | 139 | 134 | 154 | |
| Cal_Del | 102 | 83 | 96 | 92 | 101 | 95 | 85 | 96 | 94 | 76 | |
| Vthrs_Comp | 76 | 81 | 71 | 85 | 84 | 87 | 86 | 79 | 83 | 92 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 9 | 1 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 3 | 0 | 9 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_019_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_019_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_019_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_019_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_019_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_019_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 155 | 0 | 105 | 0 | 0 | 0 | 0 | 0 | 0 |
| Vsf | 150 | 155 | 140 | 65 | 105 | 0 | 0 | 0 | 0 | 60 |
| VoffsetOp | 105 | 100 | 85 | 75 | 65 | 50 | 30 | 45 | 45 | 45 |
| VIbias_PH | 80 | 45 | 20 | 10 | 40 | 15 | 5 | 0 | 10 | 10 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_019_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_019_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x5_019_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_019_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
