P_2x5_019

P_2x5_019_A

Production testing

Date:11/30/2007

Operator: Ozhan Koybasi

start testing time:11:47 AM

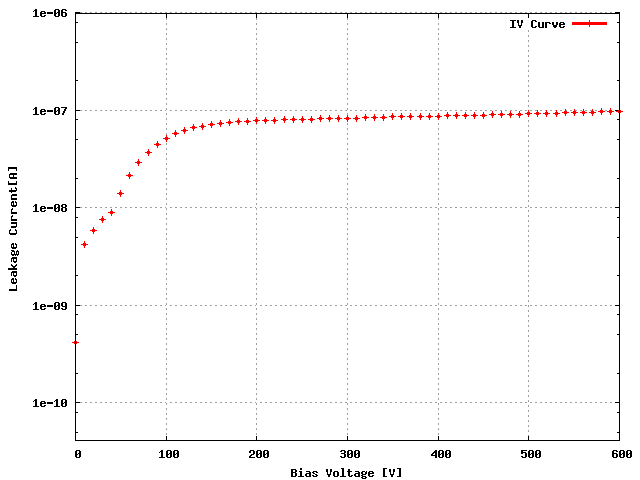

Sensor: S_2x5_019, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W53_DXLQG9T 74D

ROC1 W53_DXLQG9T 74C

ROC2 W53_DXLQG9T 74B

ROC3 W53_DXLQG9T 73D

ROC4 W53_DXLQG9T 73A

ROC5 W53_DXLQG9T 42D

ROC6 W53_DXLQG9T 43A

ROC7 W53_DXLQG9T 43B

ROC8 W53_DXLQG9T 43D

ROC9 W53_DXLQG9T 44A

ROC	ROC wafer	Label
ROC0	W53_DXLQG9T	74D
ROC1	W53_DXLQG9T	74C
ROC2	W53_DXLQG9T	74B
ROC3	W53_DXLQG9T	73D
ROC4	W53_DXLQG9T	73A
ROC5	W53_DXLQG9T	42D
ROC6	W53_DXLQG9T	43A
ROC7	W53_DXLQG9T	43B
ROC8	W53_DXLQG9T	43D
ROC9	W53_DXLQG9T	44A

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data 148 146 144 164 126 144 160 146 160 150

Vana, VanaData 145 128 131 144 124 147 137 139 134 154

CalDelData and plots 102 83 96 92 101 95 85 96 94 76

VthrCompData and plots 76 81 71 85 84 87 86 79 83 92

TestDdata ,TestD Plots 1 0 0 0 5 841 477 438 304 661

LightData ,Light Plots 0 0 0 0 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD BAD BAD BAD BAD BAD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

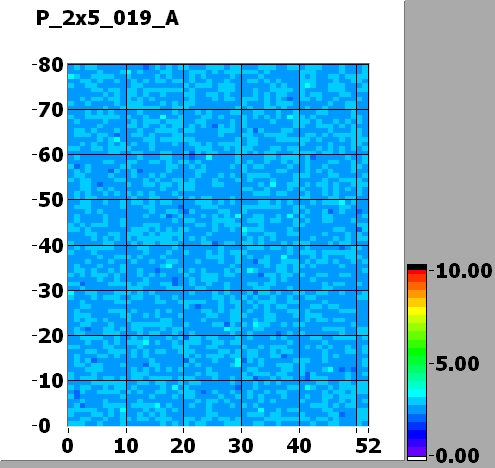

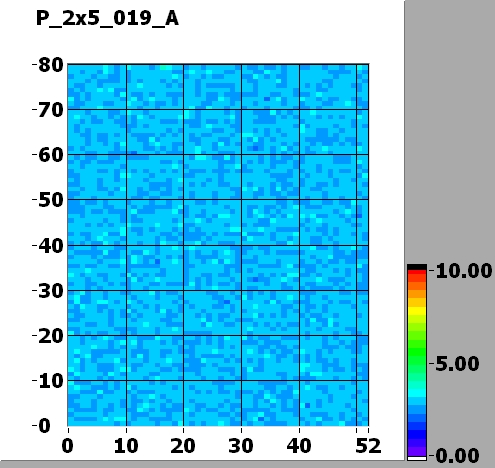

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	155	0	105	0	0	0	0	0	0
Vsf	150	155	140	65	105	0	0	0	0	60
VoffsetOp	105	100	85	75	65	50	30	45	45	45
VIbias_PH	80	45	20	10	40	15	5	0	10	10

ROC0 NOISE			MEAN = 3.504615 SIGMA = 0.282750

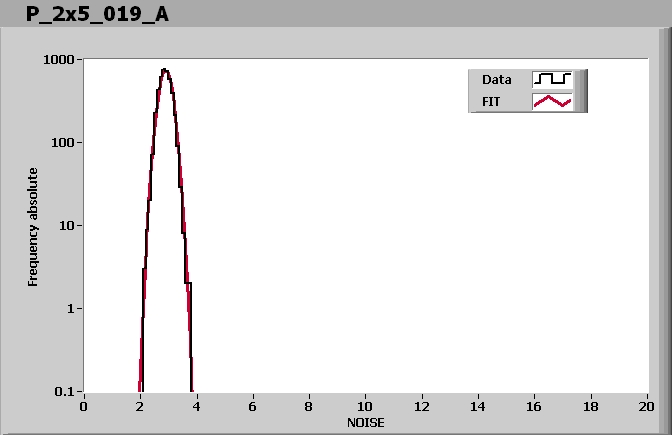

ROC1 NOISE			MEAN = 2.889892 SIGMA = 0.222078

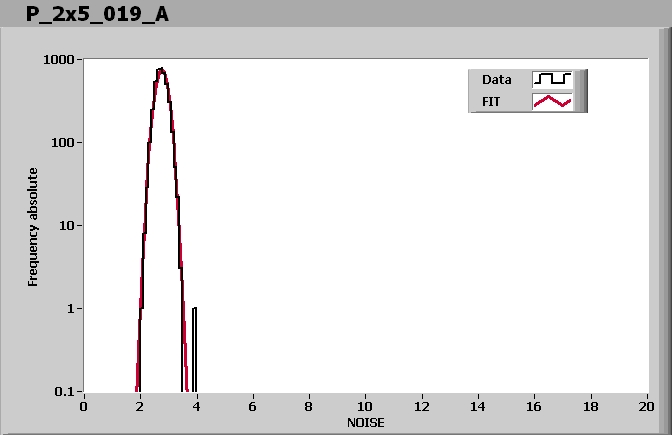

ROC2 NOISE			MEAN = 2.747796 SIGMA = 0.209664

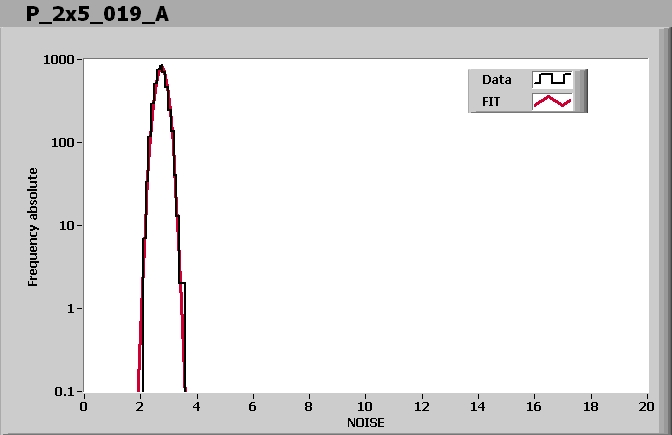

ROC3 NOISE			MEAN = 2.738310 SIGMA = 0.196281
ROC4 NOISE			MEAN = 4.338654 SIGMA = 0.348811
ROC5 NOISE			MEAN = 3.900568 SIGMA = 0.467060

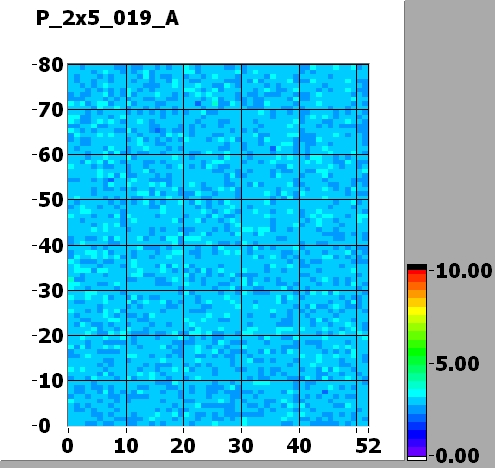

ROC6 NOISE			MEAN = 2.805044 SIGMA = 0.215288

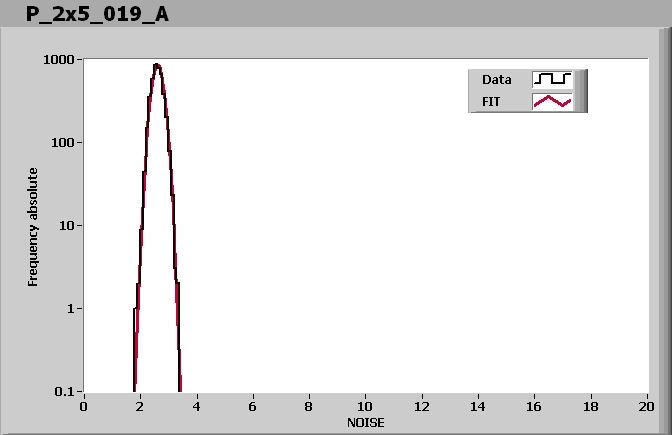

ROC7 NOISE			MEAN = 2.605704 SIGMA = 0.191746

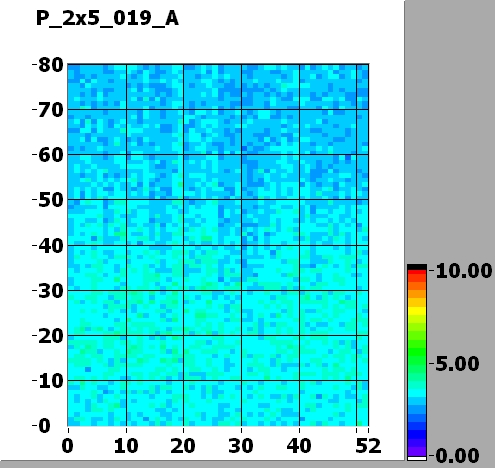

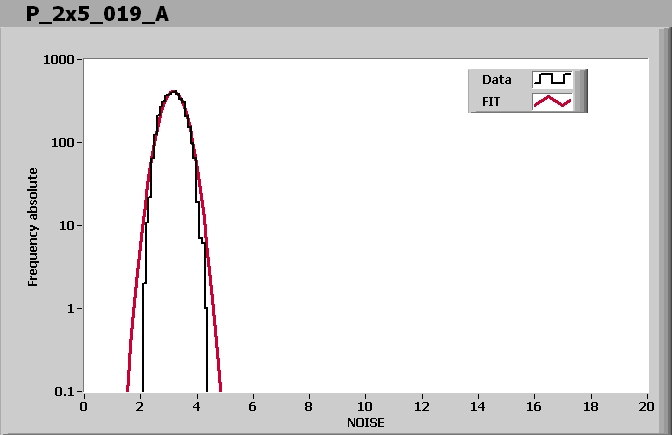

ROC8 NOISE			MEAN = 3.171373 SIGMA = 0.405562

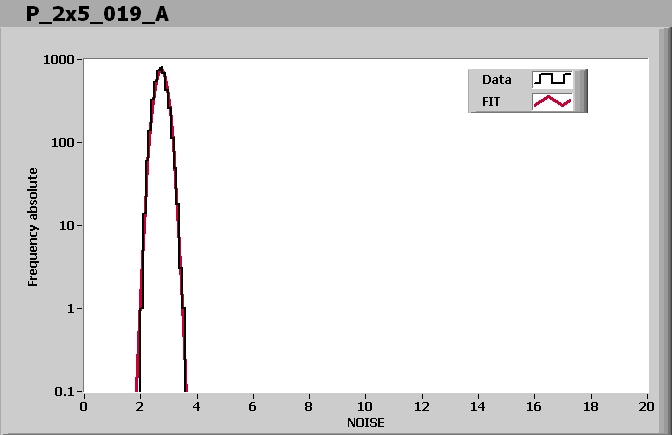

ROC9 NOISE			MEAN = 2.729229 SIGMA = 0.208201

Comment (if any): ADC vs DAC plot is unusual.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:16 PM

Ibias_DAC, Ibias_DAC Data	148	146	144	164	126	144	160	146	160	150
Vana, VanaData	145	128	131	144	124	147	137	139	134	154
CalDelData and plots	102	83	96	92	101	95	85	96	94	76
VthrCompData and plots	76	81	71	85	84	87	86	79	83	92
TestDdata ,TestD Plots	1	0	0	0	5	841	477	438	304	661
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	BAD	BAD	BAD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
