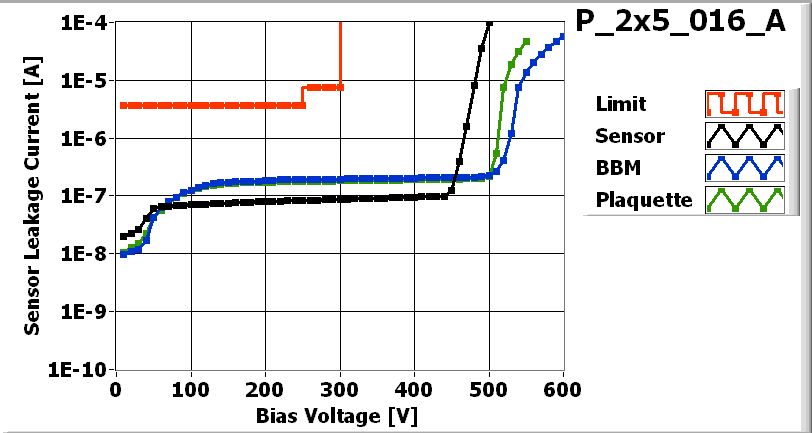

| IV_XML-File |
| Maximum Voltage 550 V |
![[IMAGE] of](P_2x5_016_A_LASER.jpg)

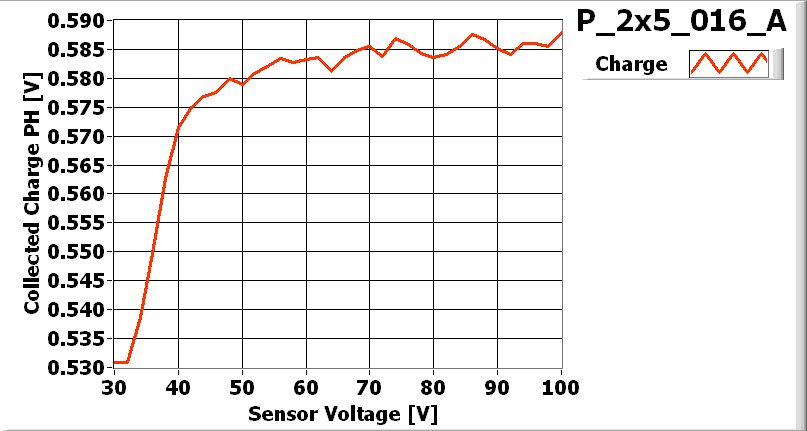

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Arndt Kirk on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_016-2x5 |
| VHDI | 2x5_331 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 43D |
| ROC1 | W49_D1LQG5T | 43A |
| ROC2 | W49_D1LQG5T | 42A |
| ROC3 | W49_D1LQG5T | 41C |
| ROC4 | W49_D1LQG5T | 33C |
| ROC5 | W49_D1LQG5T | 74C |
| ROC6 | W49_D1LQG5T | 75A |
| ROC7 | W49_D1LQG5T | 76A |
| ROC8 | W49_D1LQG5T | 76C |
| ROC9 | W49_D1LQG5T | 76D |
Inspected by Arndt Kirk on date 5/8/2007
| LR_dev | 0.023 |
| LL_dev | 0.033 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 5/8/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/8/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/8/2007 by Ortiz Jason
P_2x5_016_Aon 5/8/2007 10:44 PM
P_2x5_016_Aon 5/8/2007 10:44 PM
PLAQUETTE TESTED on 2007-05-08 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 144 | 140 | 134 | 140 | 146 | 134 | 142 | 140 | 134 | 148 | |
| Vana | 144 | 157 | 148 | 143 | 162 | 139 | 153 | 141 | 132 | 140 | |
| Cal_Del | 80 | 80 | 76 | 88 | 71 | 85 | 81 | 85 | 95 | 81 | |
| Vthrs_Comp | 90 | 87 | 88 | 84 | 93 | 77 | 84 | 89 | 81 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_016_A_Ibias-dac.jpg) |

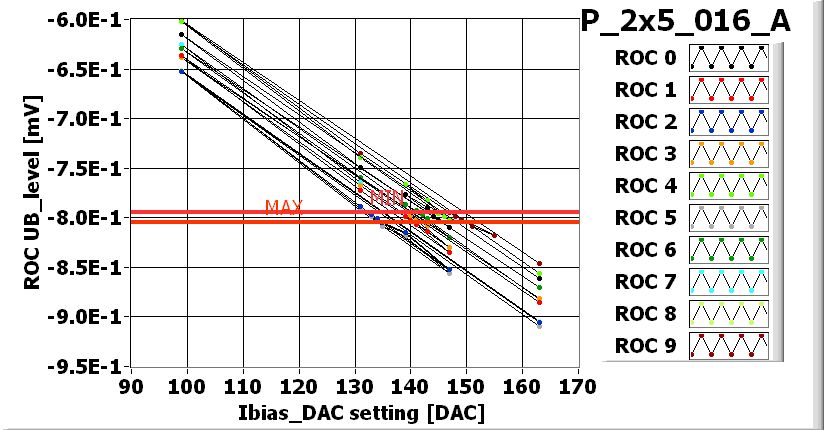

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_016_A_Vana.jpg) |

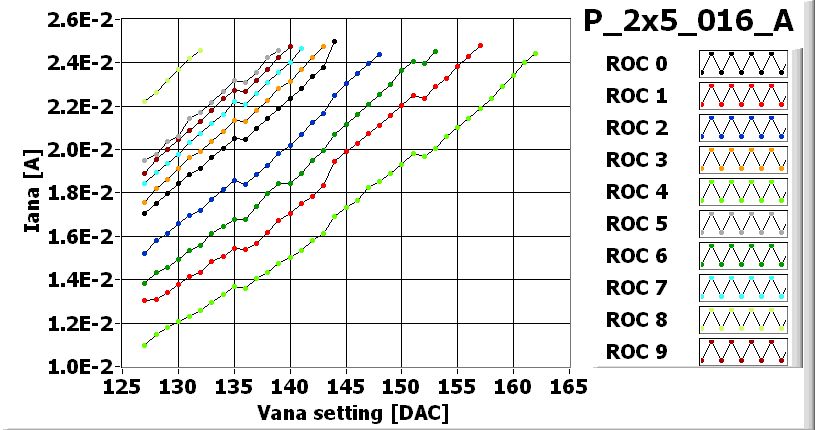

VANA_XML-File |
![[IMAGE] of](P_2x5_016_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_016_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_016_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_016_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 95 | 95 | 95 | 105 | 105 | 105 | 100 | 105 | 100 |
| Vsf | 150 | 150 | 145 | 145 | 155 | 140 | 150 | 145 | 140 | 145 |
| VoffsetOp | 115 | 125 | 100 | 110 | 105 | 105 | 120 | 105 | 100 | 115 |
| VIbias_PH | 100 | 100 | 100 | 100 | 105 | 105 | 100 | 100 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_016_A-530-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_016_A-530-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
