P_2x5_015

P_2x5_015_A

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_015-2x5
VHDI	2x5_318

ROC ROC wafer Label

ROC0 X54JP2T 28D

ROC1 X54JP2T 28C

ROC2 X54JP2T 28B

ROC3 X54JP2T 28A

ROC4 X54JP2T 27D

ROC5 X54JP2T 21B

ROC6 X54JP2T 21C

ROC7 X54JP2T 21D

ROC8 X54JP2T 22C

ROC9 X54JP2T 23A

ROC	ROC wafer	Label
ROC0	X54JP2T	28D
ROC1	X54JP2T	28C
ROC2	X54JP2T	28B
ROC3	X54JP2T	28A
ROC4	X54JP2T	27D
ROC5	X54JP2T	21B
ROC6	X54JP2T	21C
ROC7	X54JP2T	21D
ROC8	X54JP2T	22C
ROC9	X54JP2T	23A

Inspected by Arndt Kirk on date 2006-07-17

LR_dev 0.066

LL_dev 0.073

FINAL COMMENT by Arndt Kirk No problem assembly. No wirebonding problem

PLAQUETTE made READY for testing on 2006-07-17 by Arndt Kirk

PLAQUETTE TESTED on 2006-7-18 by Stacy Kouba

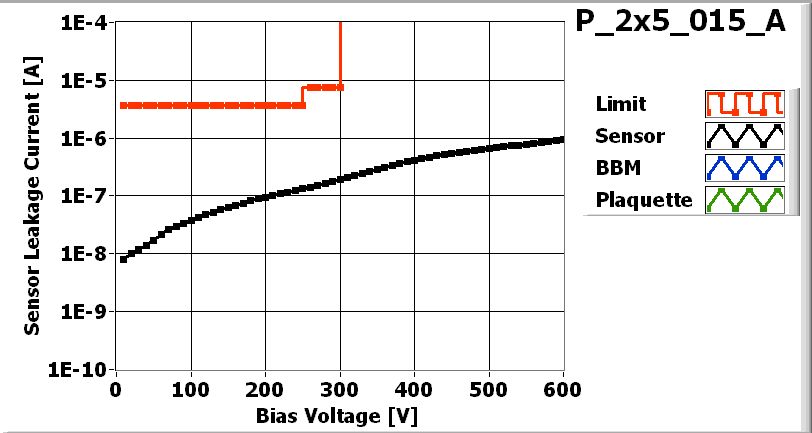

IV_XML-File

Maximum Voltage 600 V

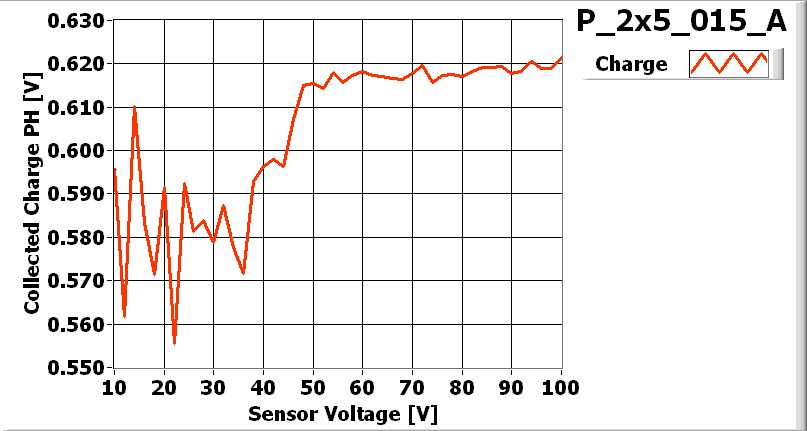

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	167	145	171	156	163	178	165	175	166	147
Vana	122	111	134	107	132	139	128	132	116	111
Cal_Del	91	100	93	101	81	79	100	90	86	85
Vthrs_Comp	84	64	80	73	75	80	66	75	83	71
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	1	0	0
Total BAD	0	0	0	0	0	0	0	1	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File

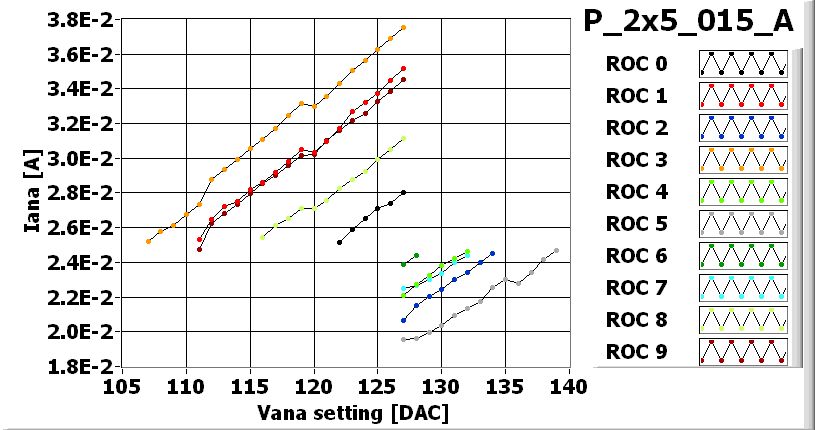

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-07-21

Plaquette assigned to panel P3R_024
