| Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
|---|---|---|---|---|

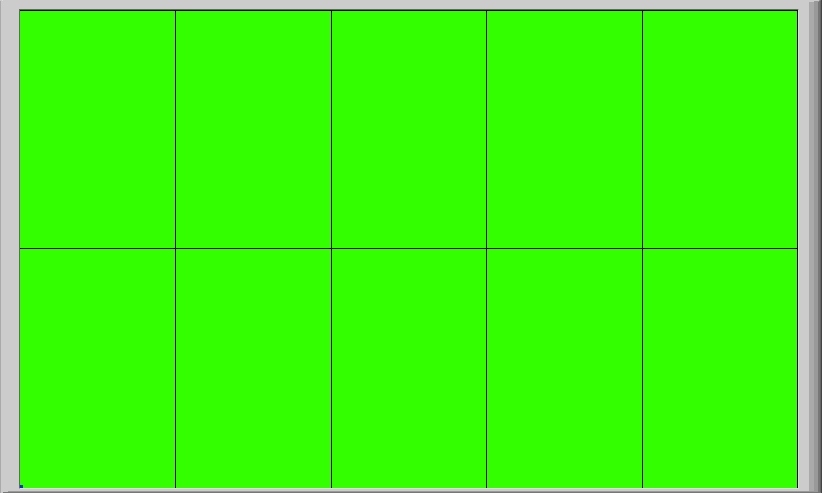

| P_2x5_015_A | 3 | | | |

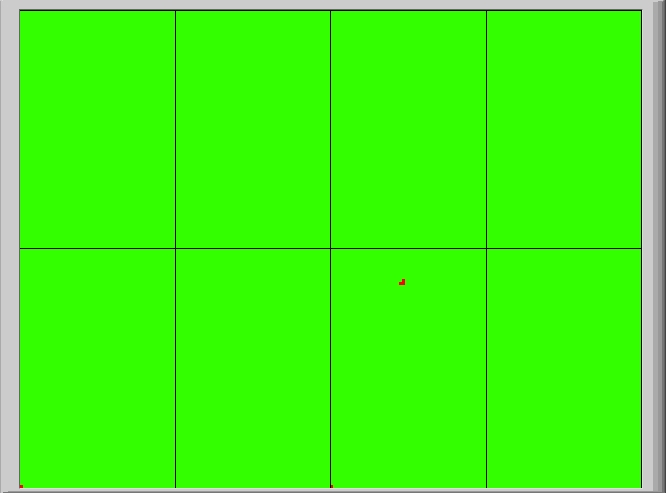

| P_2x4B_006_A | 2 | | | |
| P_2x3B_100_A | 1 | | | |
| Panel assembly comments |
|---|
| 12March07/Sudhir: This panel was tested today by Ashish Kumar. On the 2x5 plaquette, ROC 5 and ROC 6 were showing Noise dispersion(Nd) of 0.7 and 0.5 ( the normal value is 0.2). When HV was increased from -200V to -300V, the Nd became 0.2 for both. 13Mar2007/ME: Noise at edge of 2x5 ROC 5 and 6. Gone at 300V. |
